Installation Procedure

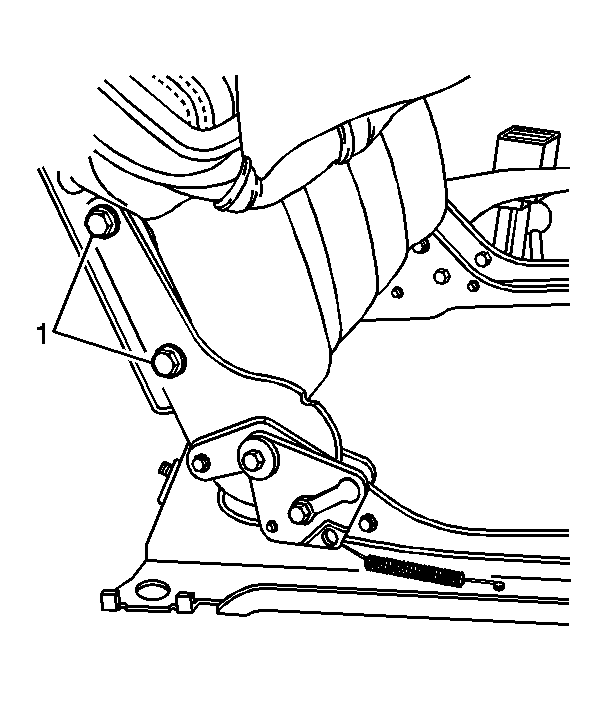

    Fig 1: Seat Recliner View
    GM824165Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the two bolts securing the inner riser assembly to the seat back frame.

    Tighten:  Tighten the seat back mounting bolts to 25 N.m (18 lb ft).

  2. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 .
  3. Install the head restraint assembly. Refer to Head Restraint Replacement - Rear Seat .
