Door Control Module Wiring Schematics

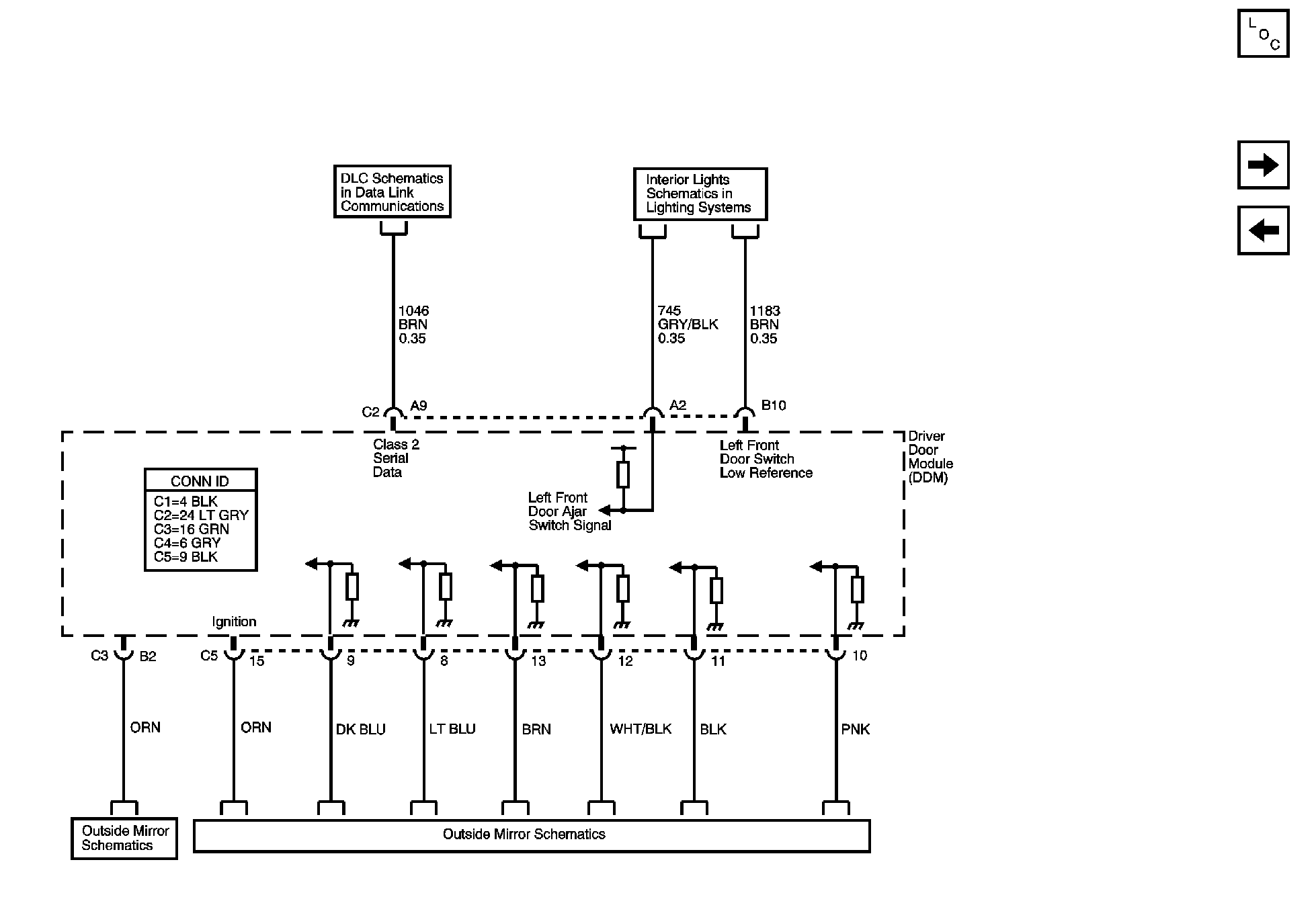

Fig 1: Driver Door Module Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Serial Data and Subsystem References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Front Passenger Door Module Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
