Wheel Alignment: Inspection: Camber: Inspection

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the front wheel on turning radius gauge. Make sure ground contacting surfaces of front and rear wheels are set at the same height.
  2. Set the ST into the center of wheel, and then install the wheel alignment gauge.

    ST 927380001 ADAPTER

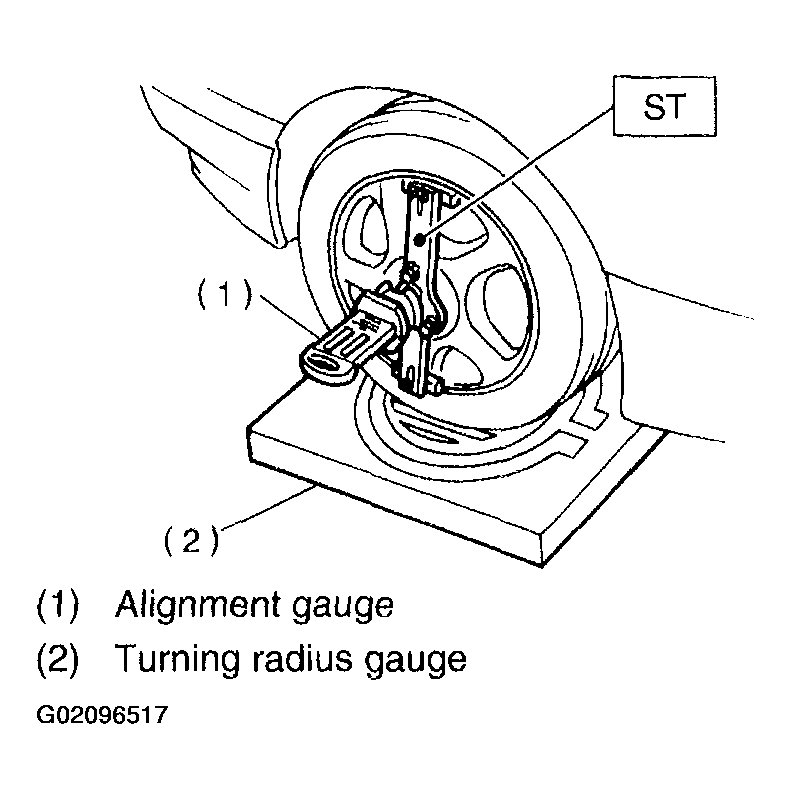

    Fig 1: Setting ST Into Center Of Wheel & Install Wheel Alignment Gauge
    G02096517Courtesy of SUBARU OF AMERICA, INC.
  3. Follow the wheel alignment gauge operation manual to measure camber angle.
    NOTE: Refer to the "SPECIFICATIONS" for camber values.
    Front and rear camber, see Figure .
