Spare Tire Carrier: Removal

  1. Remove spare tire.
  2. Remove spare tire carrier by using spare tire carrier nut wrench J-34355.

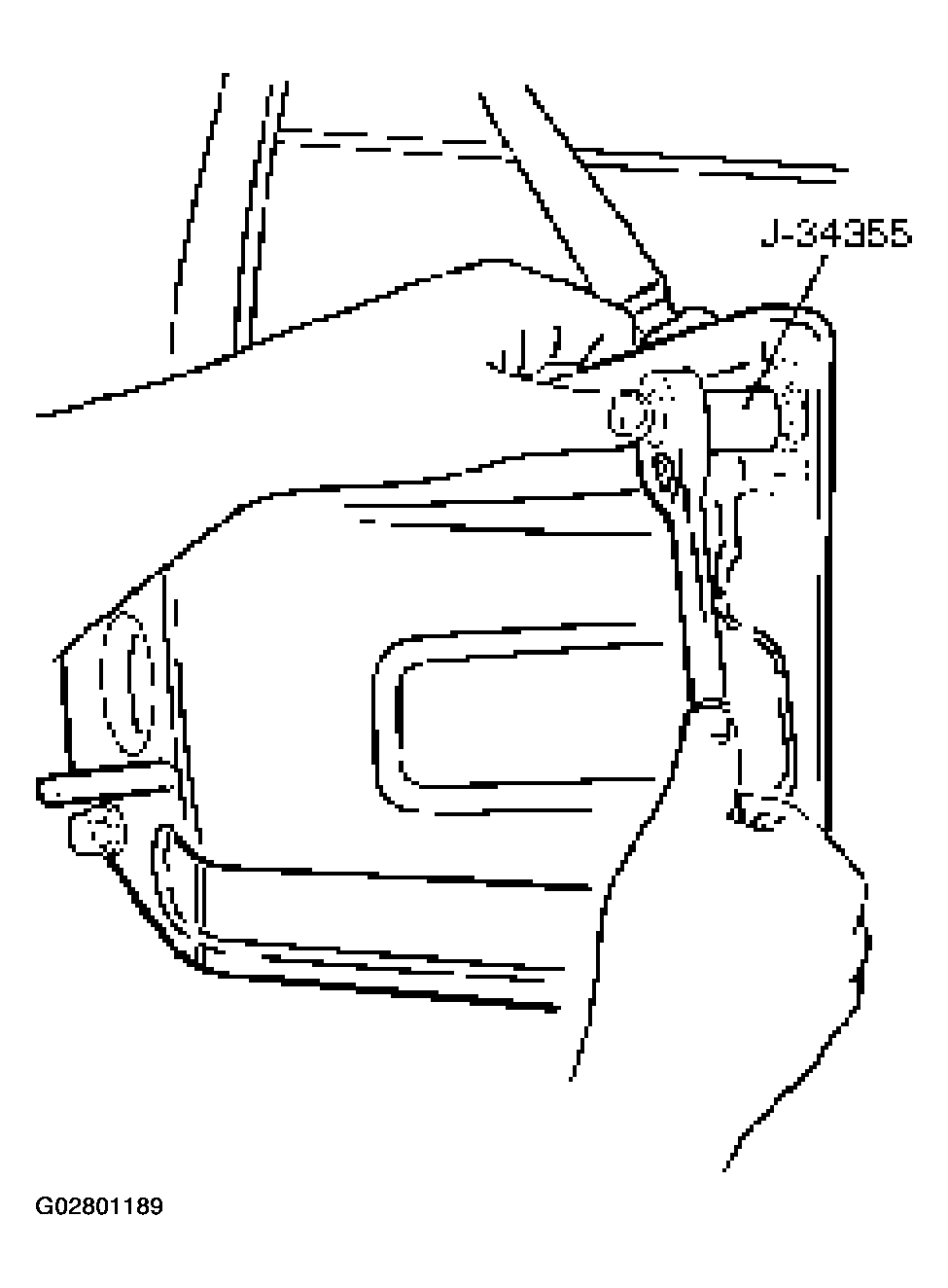

    Fig 1: Removing Spare Tire Carrier
    G02801189Courtesy of ISUZU MOTOR CO.
