Door Strikers: Adjustment

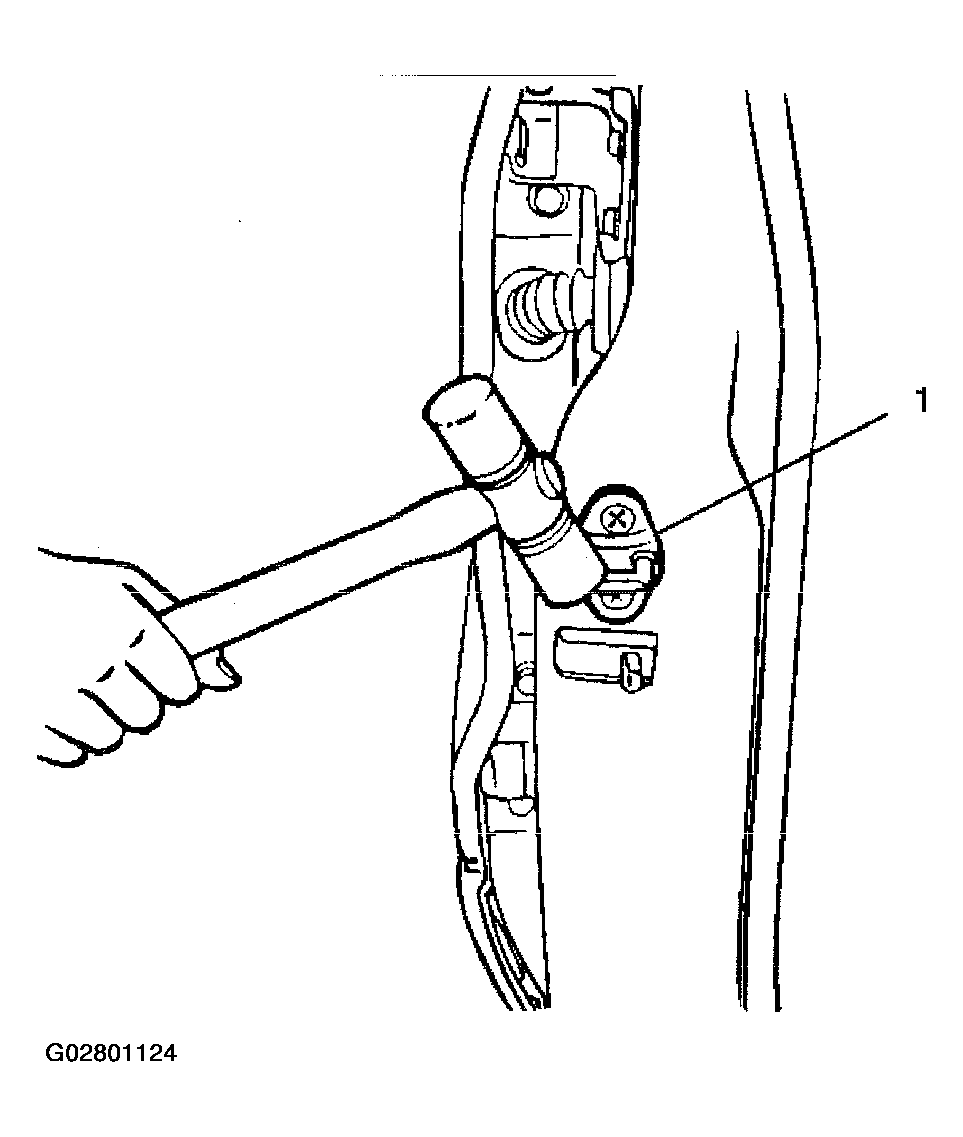

Fig 1: Adjusting Door Striker
G02801124Courtesy of ISUZU MOTOR CO.
  1. Loosen the striker (1) screws.
  2. Tap with a plastic hammer to align.
  3. Tighten the striker screws.

Torque:  15 N.m (11 lb ft)
