Steering Linkage and Associated Parts Torque Specifications

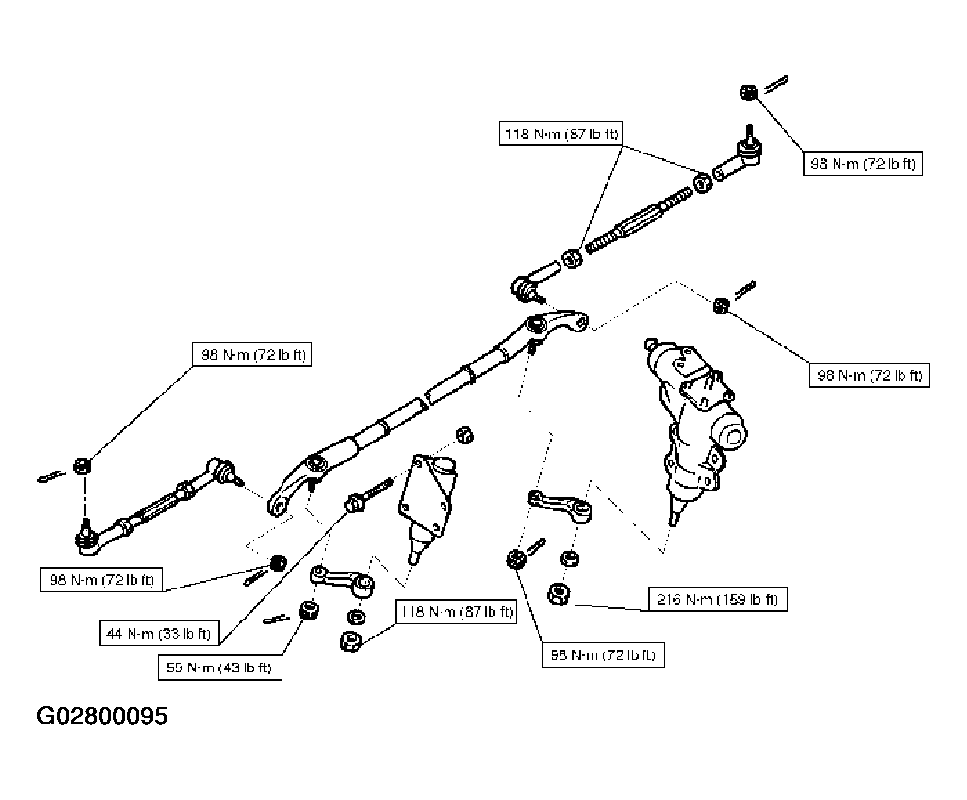

Fig 1: Steering Linkage and Associated Parts Torque Specifications

G02800095

Courtesy of ISUZU MOTOR CO.
