Power Steering Pump Disassembled View

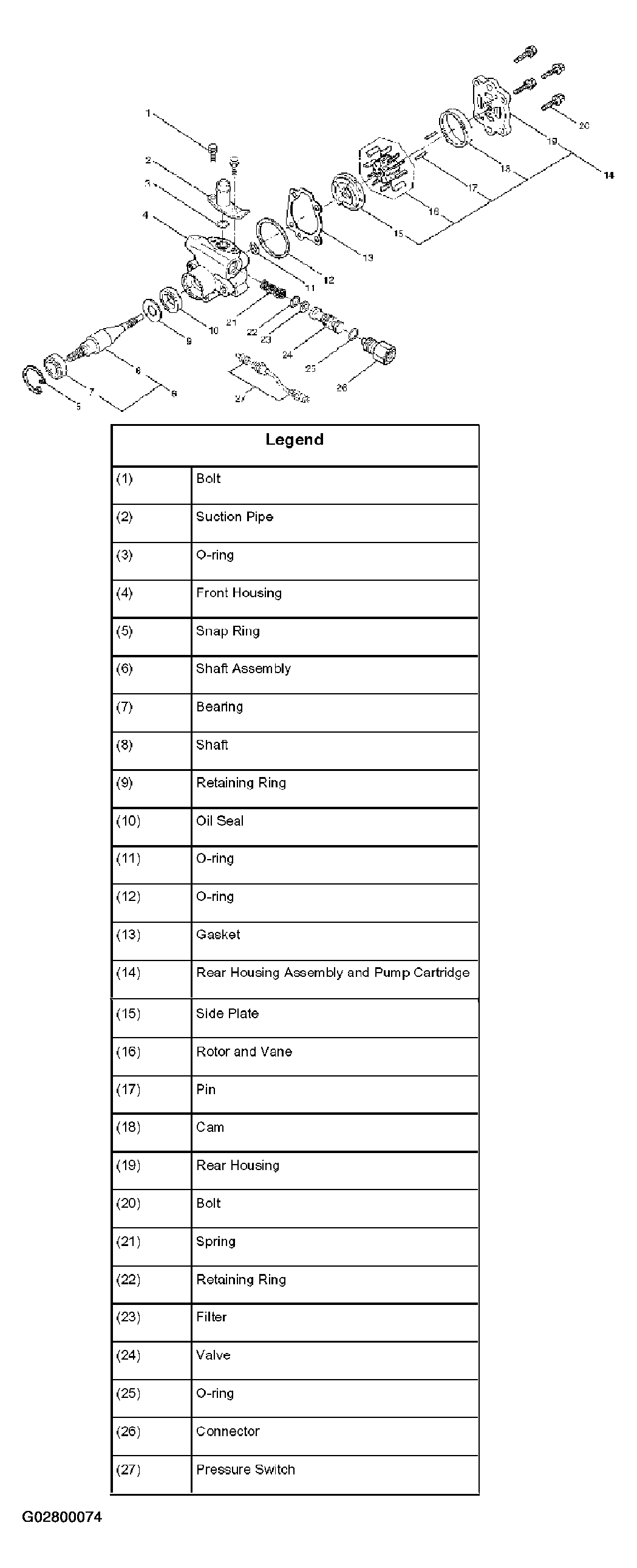

Fig 1: Exploded View Of Power Steering Pump

G02800074

Courtesy of ISUZU MOTOR CO.
