Home >> Isuzu >> 2002 >> Trooper S, 4WD, Part Time >> Repair and Diagnosis >> Steering >> Steering Column >> Power-Assisted Steering System >> Power Steering Pump >> Main Data and Specifications >> Power Steering Pump Torque Specifications

Power Steering Pump Torque Specifications

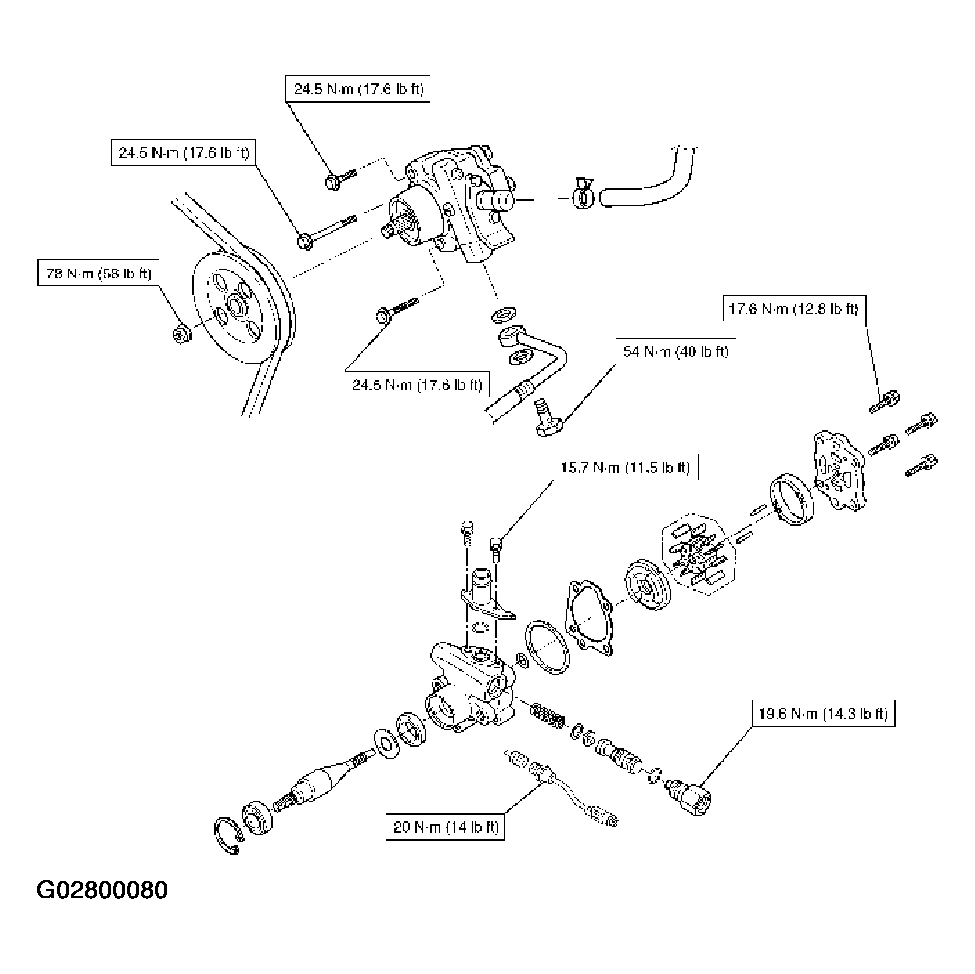

Fig 1: Power Steering Pump Torque Specifications

G02800080

Courtesy of ISUZU MOTOR CO.
