Power Steering Gear: Installation

  1. Align the setting marks (1) made at removal, then install gear box.

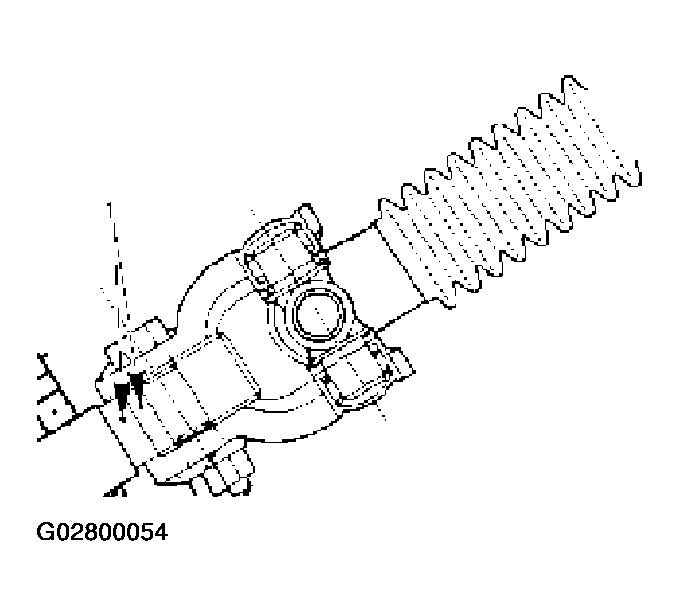

    Fig 1: Installing Gear Box
    G02800054Courtesy of ISUZU MOTOR CO.
  2. Tighten gear box mounting bolt and nut to specified torque.

    Torque:  44 N.m (33 lb ft)

  3. Tighten gear universal joint bolt to specified torque.

    Torque:  25 N.m (18 lb ft)

  4. Align the notched tooth and install pitman arm.

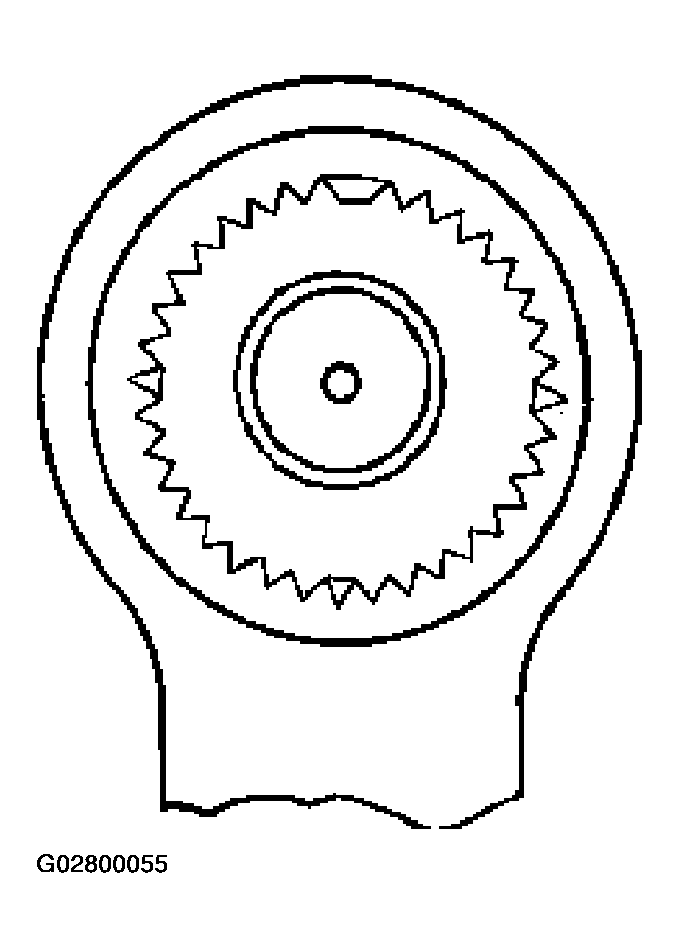

    Fig 2: Installing Pitman Arm
    G02800055Courtesy of ISUZU MOTOR CO.
  5. Install nut and tighten Nut to specified torque.

    Torque:  216 N.m (159 lb ft)

  6. Install Pipe and tighten to specified torque.

    Torque:  44 N.m (33 lb ft)
