Gasket Setting

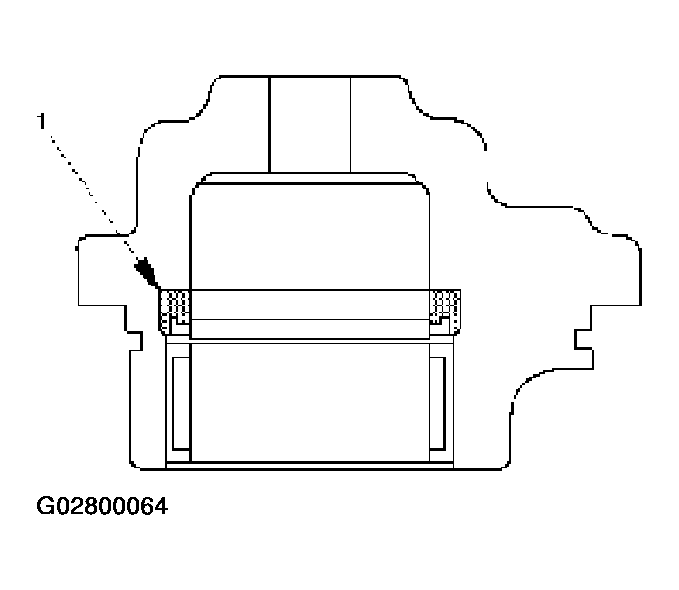

Fig 1: Setting Gasket

G02800064

Courtesy of ISUZU MOTOR CO.

Note the gasket (1) installation direction.
Apply a thin coat of power steering fluid to lip of each part.
