Outer Track Rod Assembly and Associated Parts

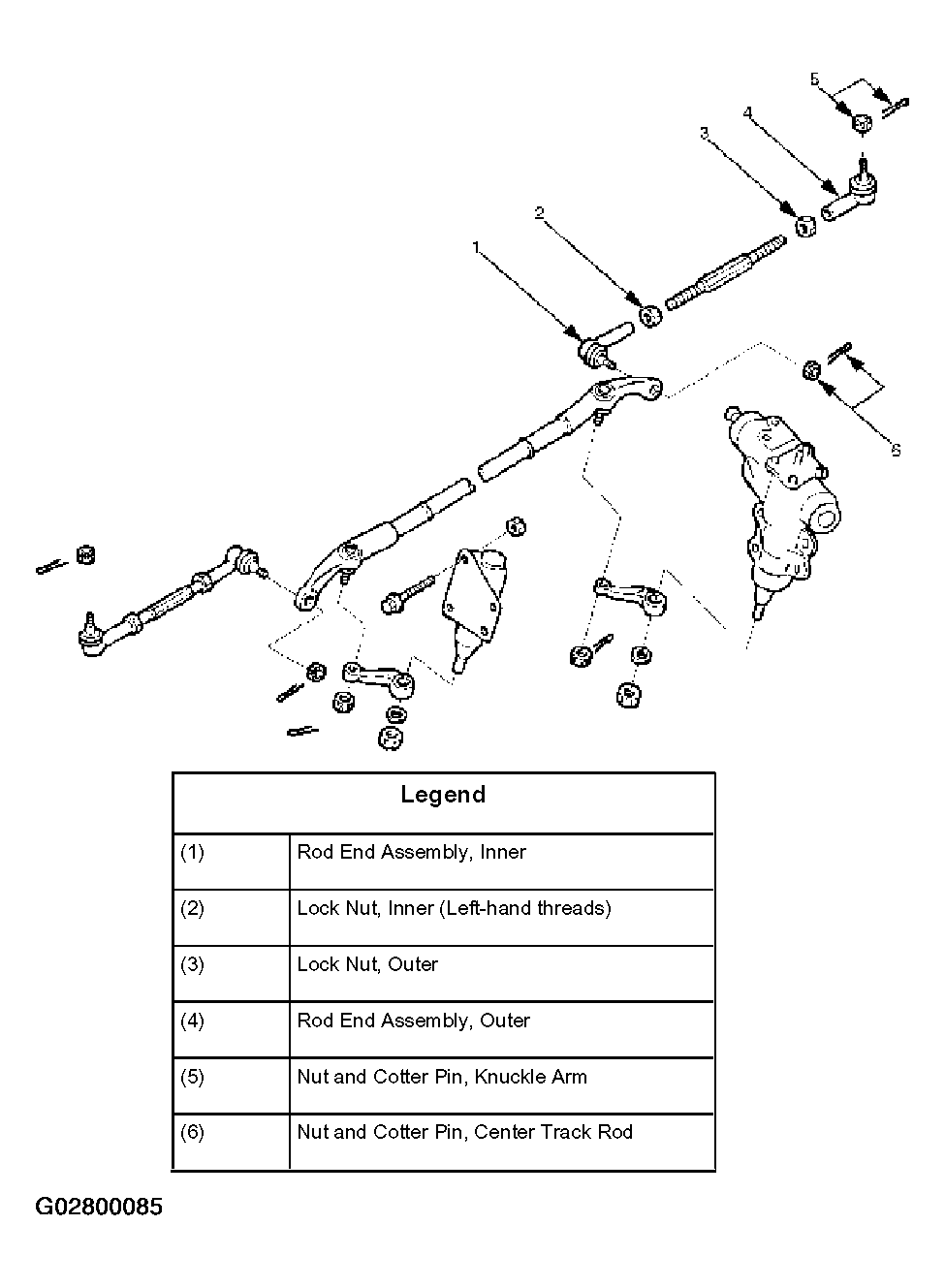

Fig 1: Identifying Outer Track Rod Assembly And Associated Parts

G02800085

Courtesy of ISUZU MOTOR CO.
