Toe-in Adjustment

  1. To adjust the toe-in angle, loosen the lock nuts (2) on the outer track rods (1) and turn the outer track rods. Turn both rods the same amount, to keep the steering wheel centered.

    Toe-in:  0 +/- 2 mm (0 +/- 0.08 in)

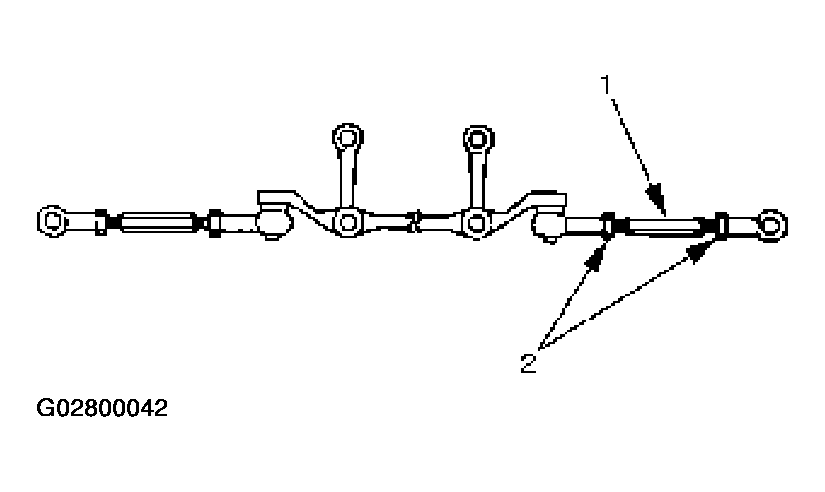

    Fig 1: Adjusting Toe-in
    G02800042Courtesy of ISUZU MOTOR CO.
  2. Tighten the lock nut to the specified torque.

    Torque:  118 N.m (87 lb ft)
