Turn Signal Switch

This diagnosis covers mechanical problems only. Refer to TURN SIGNAL SWITCH  for electrical diagnosis.

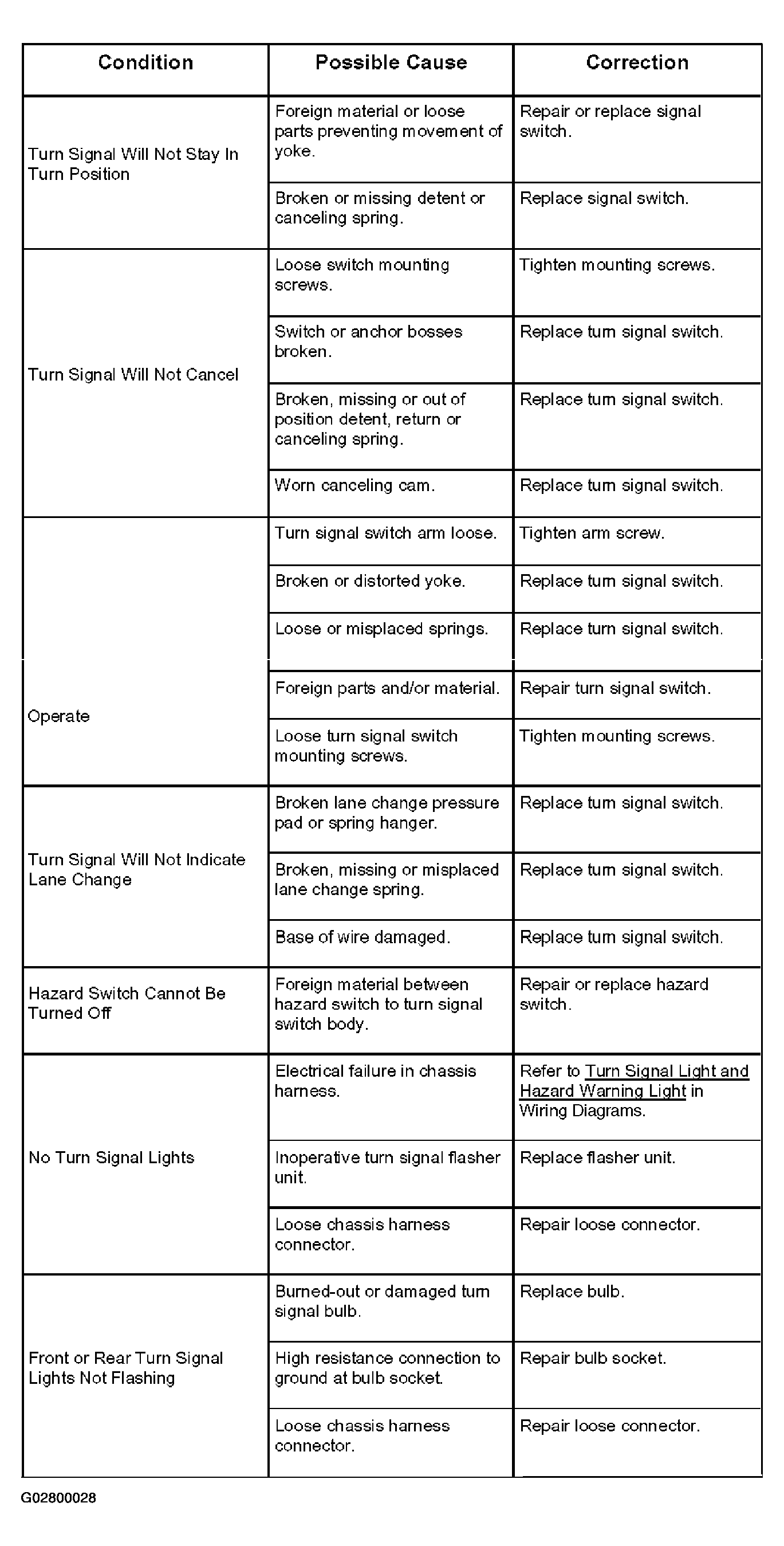

Fig 1: Turn Signal Switch Diagnosis Chart
G02800028Courtesy of ISUZU MOTOR CO.
