General Diagnosis

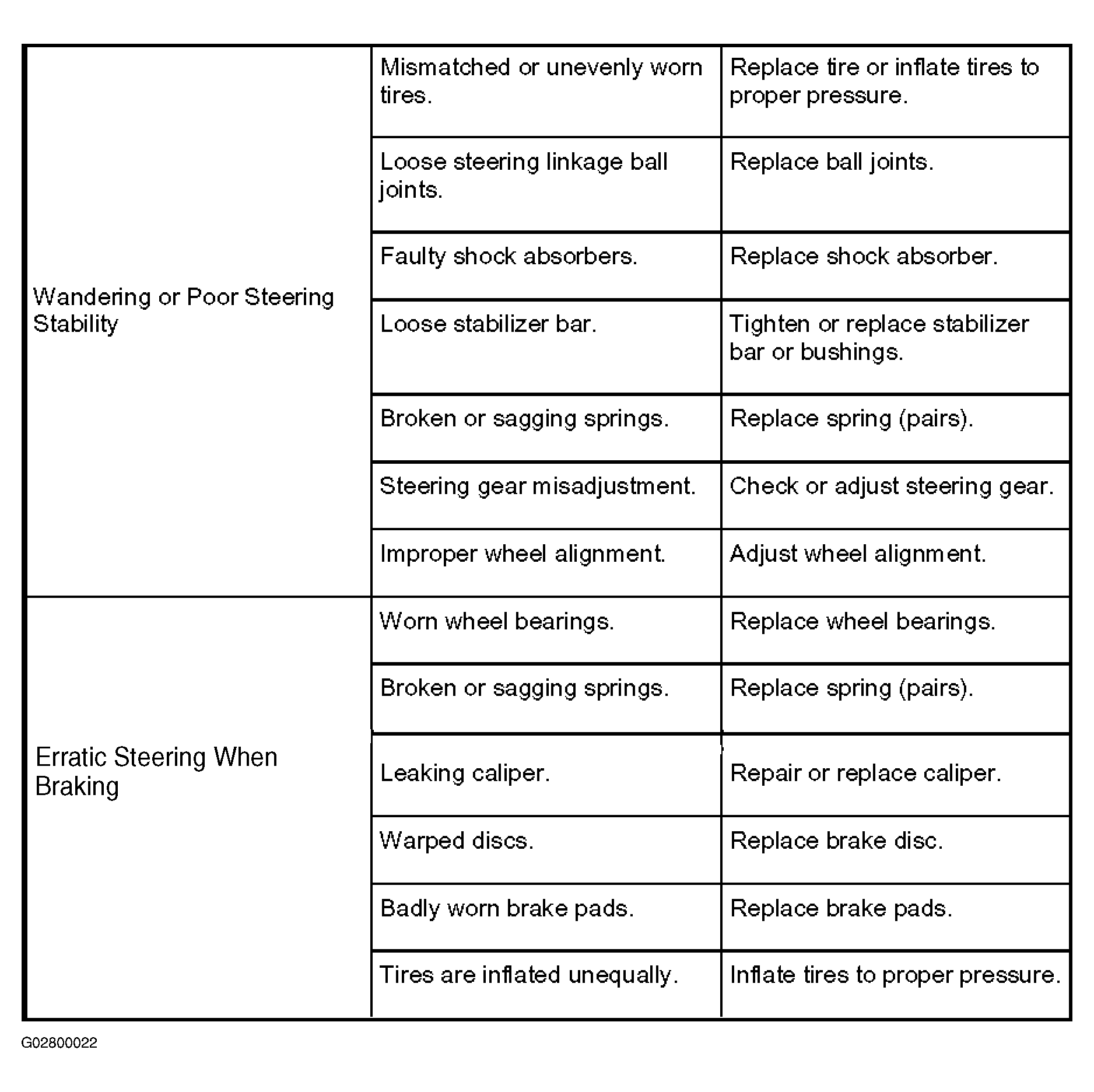

Fig 1: General Diagnosis Chart (1 Of 4)
Courtesy of ISUZU MOTOR CO.

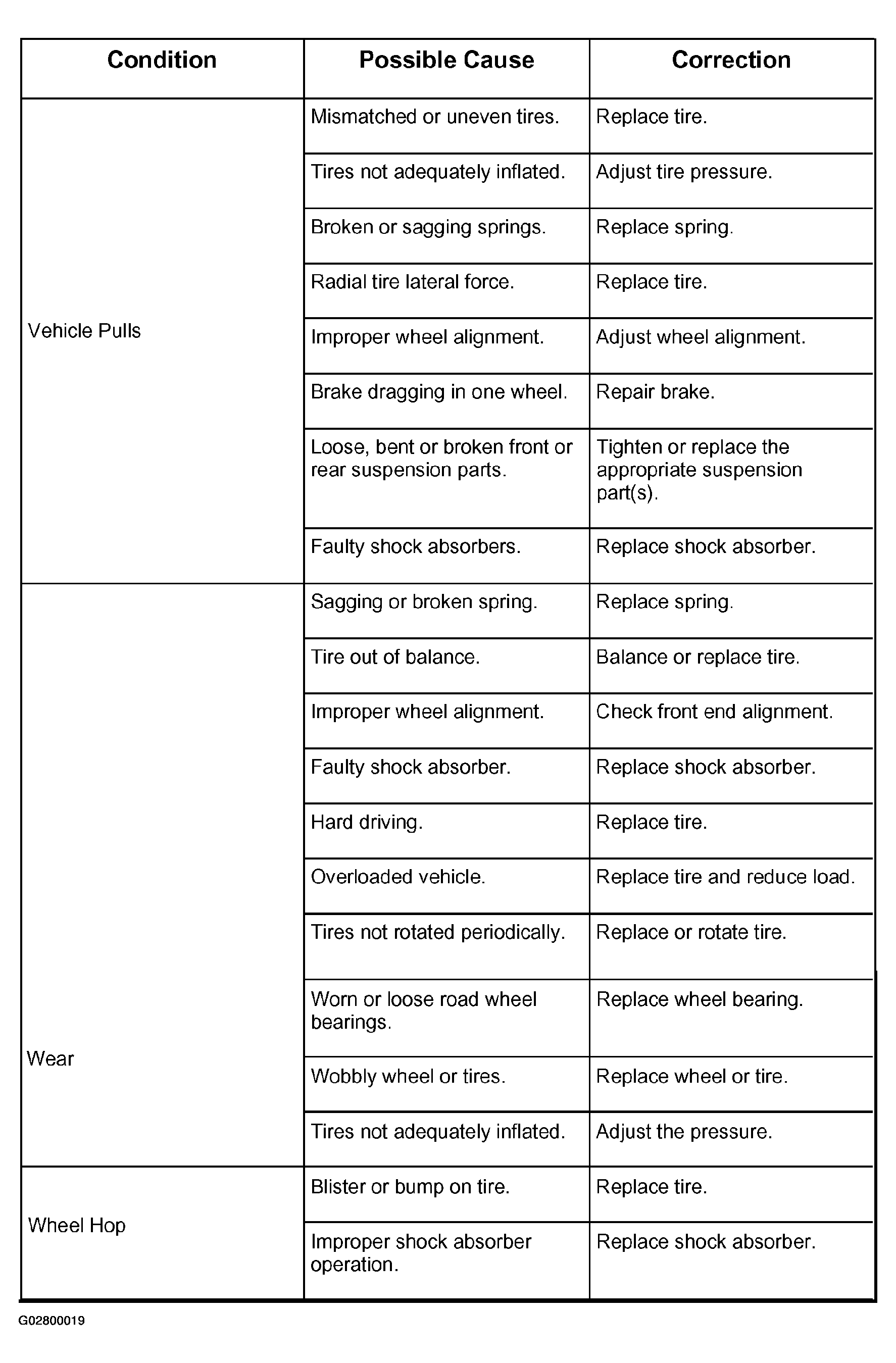

Fig 2: General Diagnosis Chart (2 Of 4)
Courtesy of ISUZU MOTOR CO.

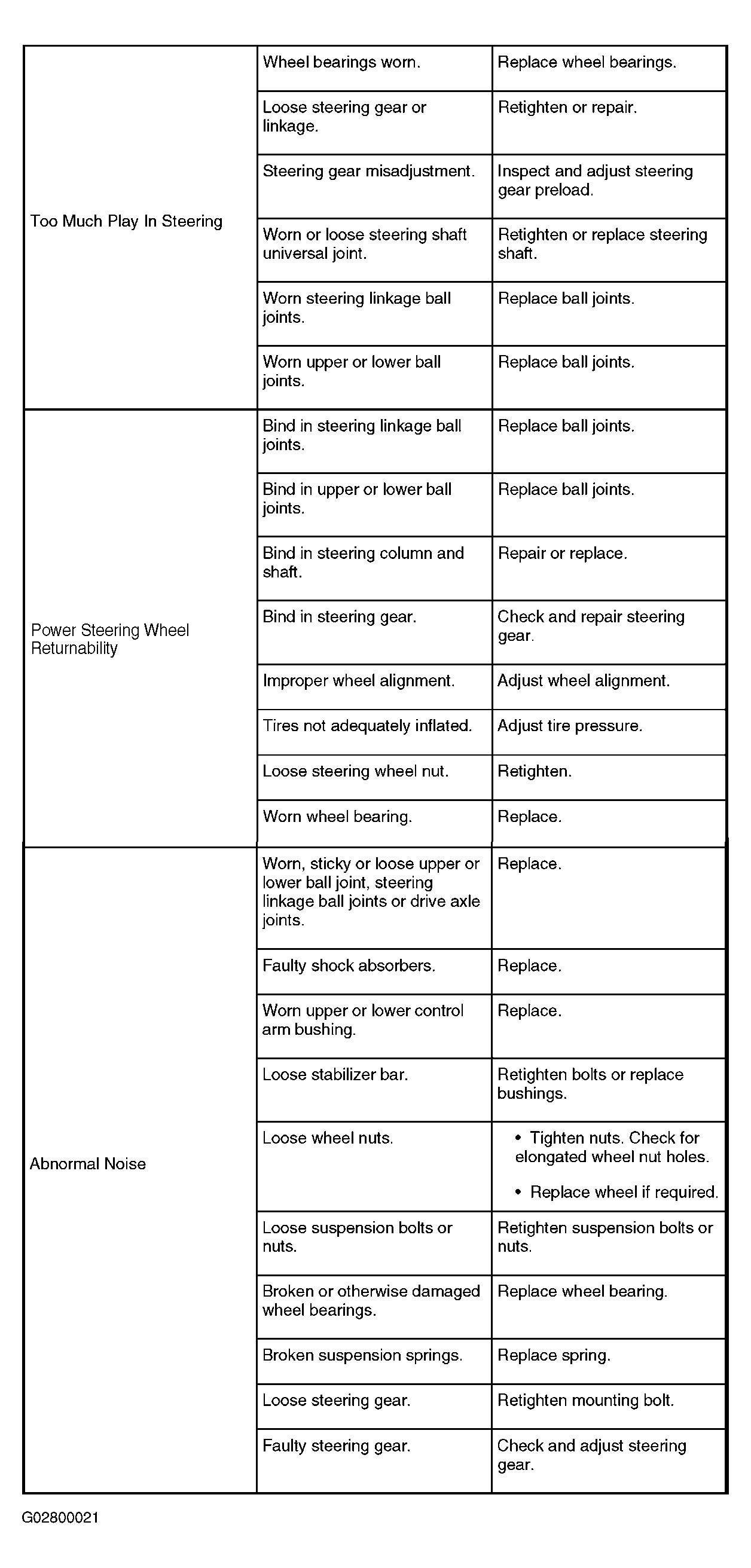

Fig 3: General Diagnosis Chart (3 Of 4)
Courtesy of ISUZU MOTOR CO.

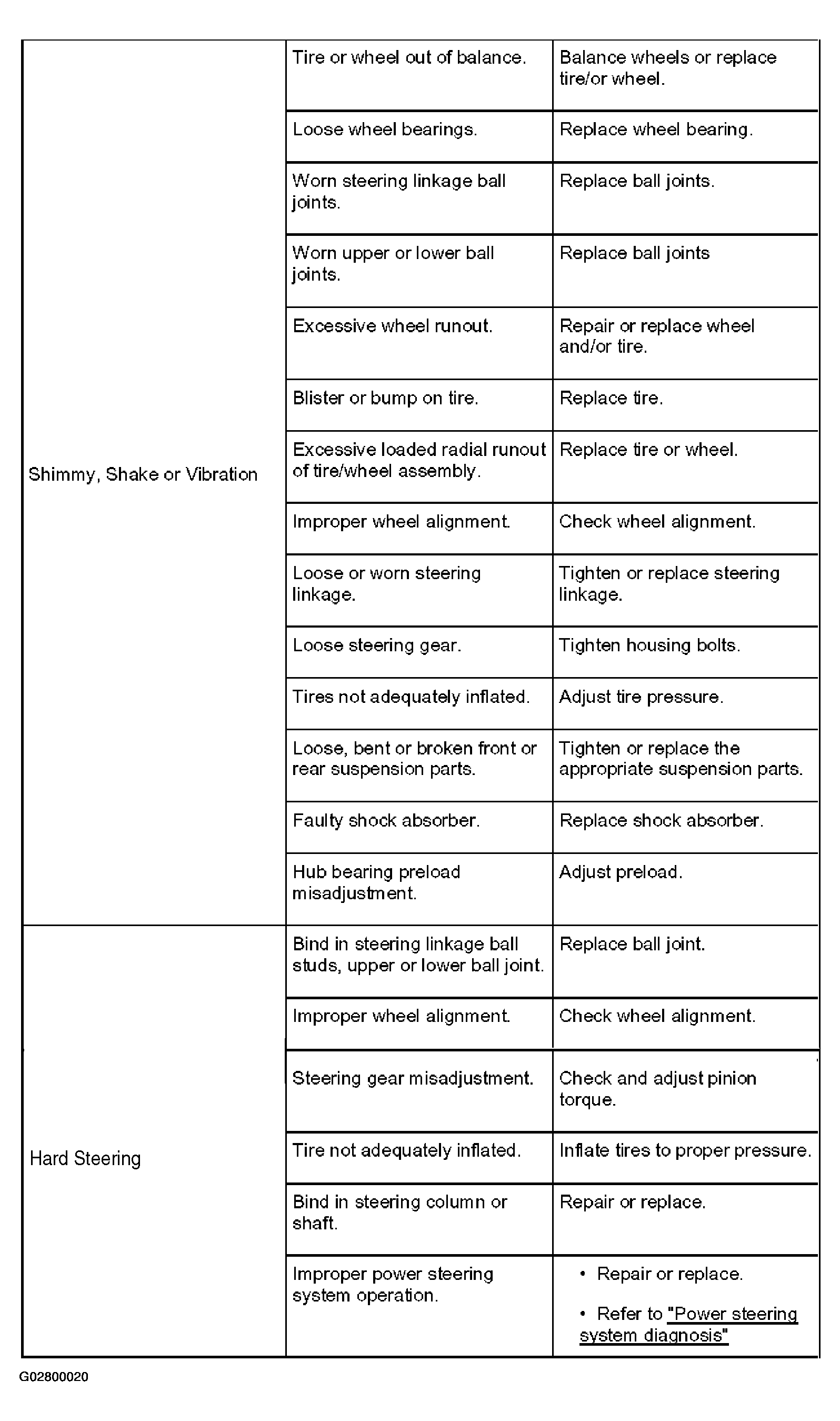

Fig 4: General Diagnosis Chart (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
