Center Track Rod Assembly and Associated Parts

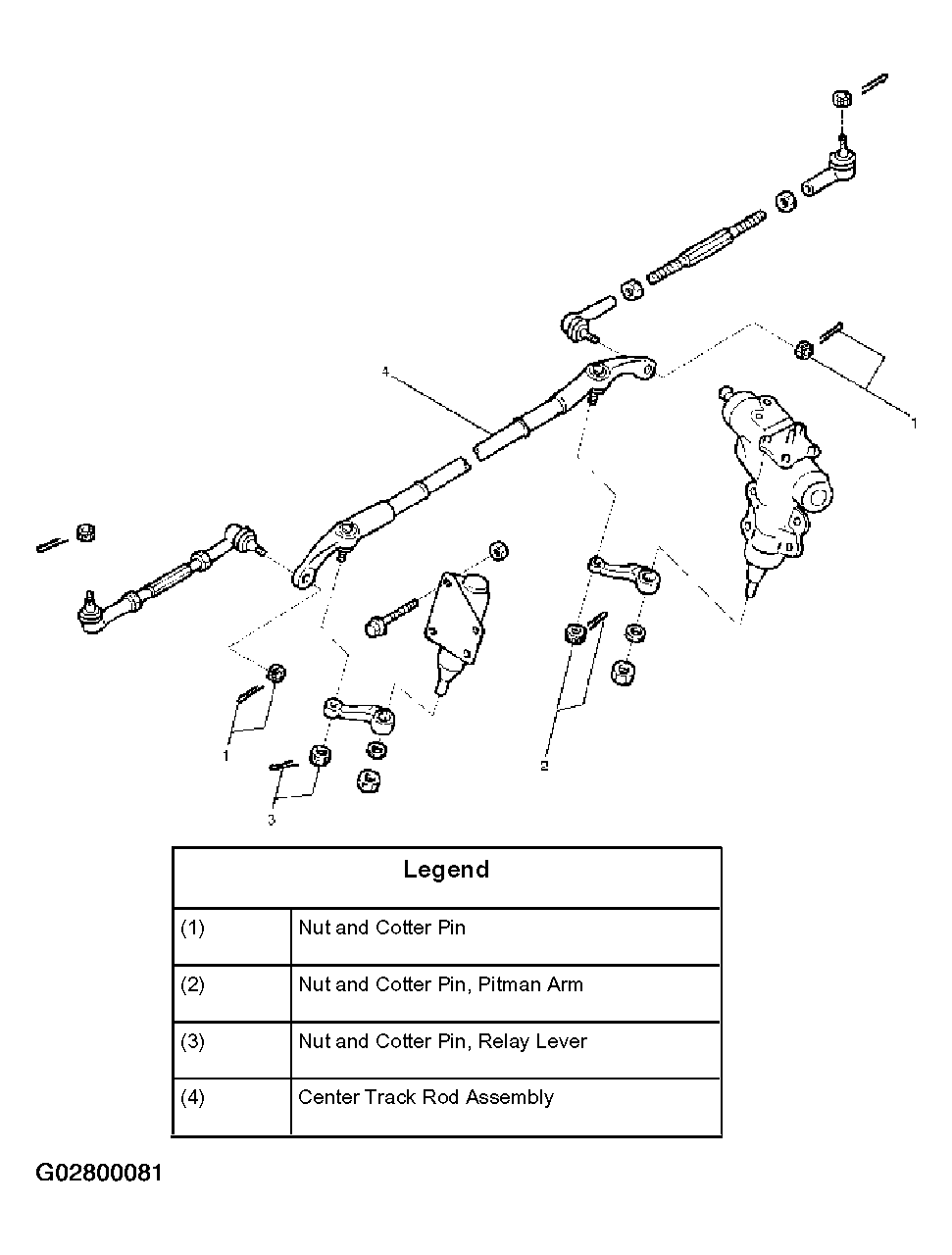

Fig 1: Identifying Center Track Rod Assembly And Associated Parts

G02800081

Courtesy of ISUZU MOTOR CO.
