Removal & Installation

  1. Disconnect battery ground cable.
  2. Remove door trim panel. See REAR DOOR TRIM PANEL  .

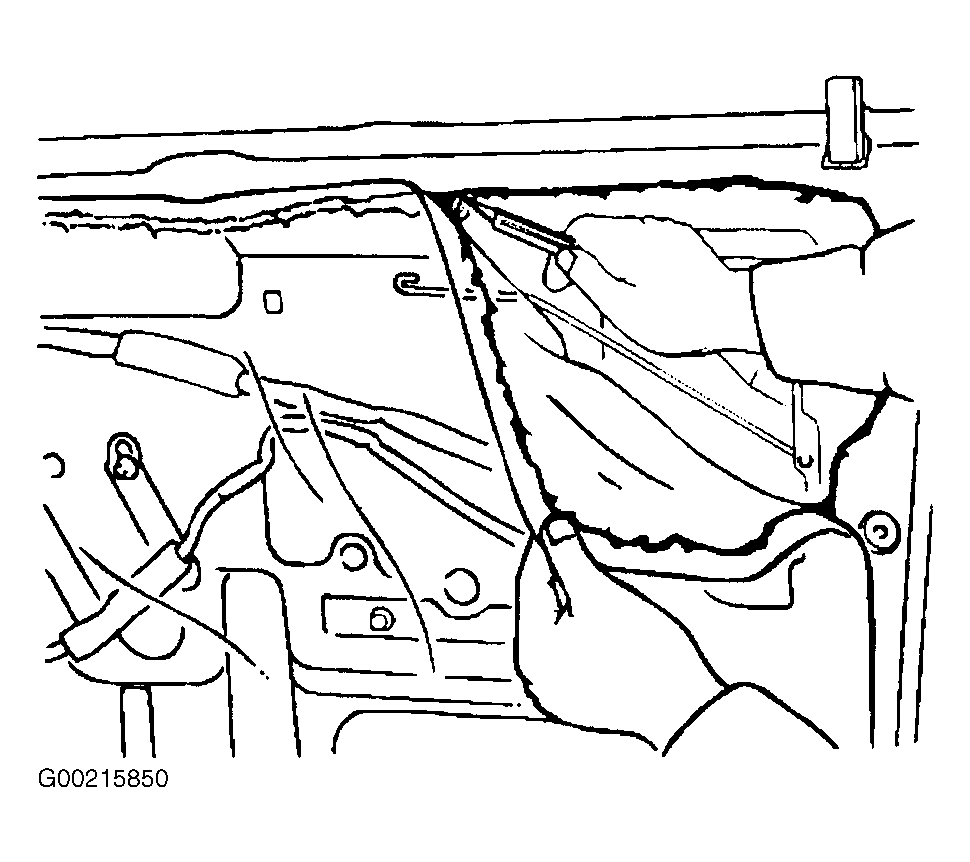

  3. Remove waterproof sheet (1). See Figure .
    • Taking notice of door harness, peel waterproof sheet off door panel carefully.
  4. Remove glass. See Fig 1 .
    • Bring glass down to position where bolt can be seen.
    • Remove sash division 2 fixing bolt (1) and then remove glass fixing bolt to remove glass upwards.

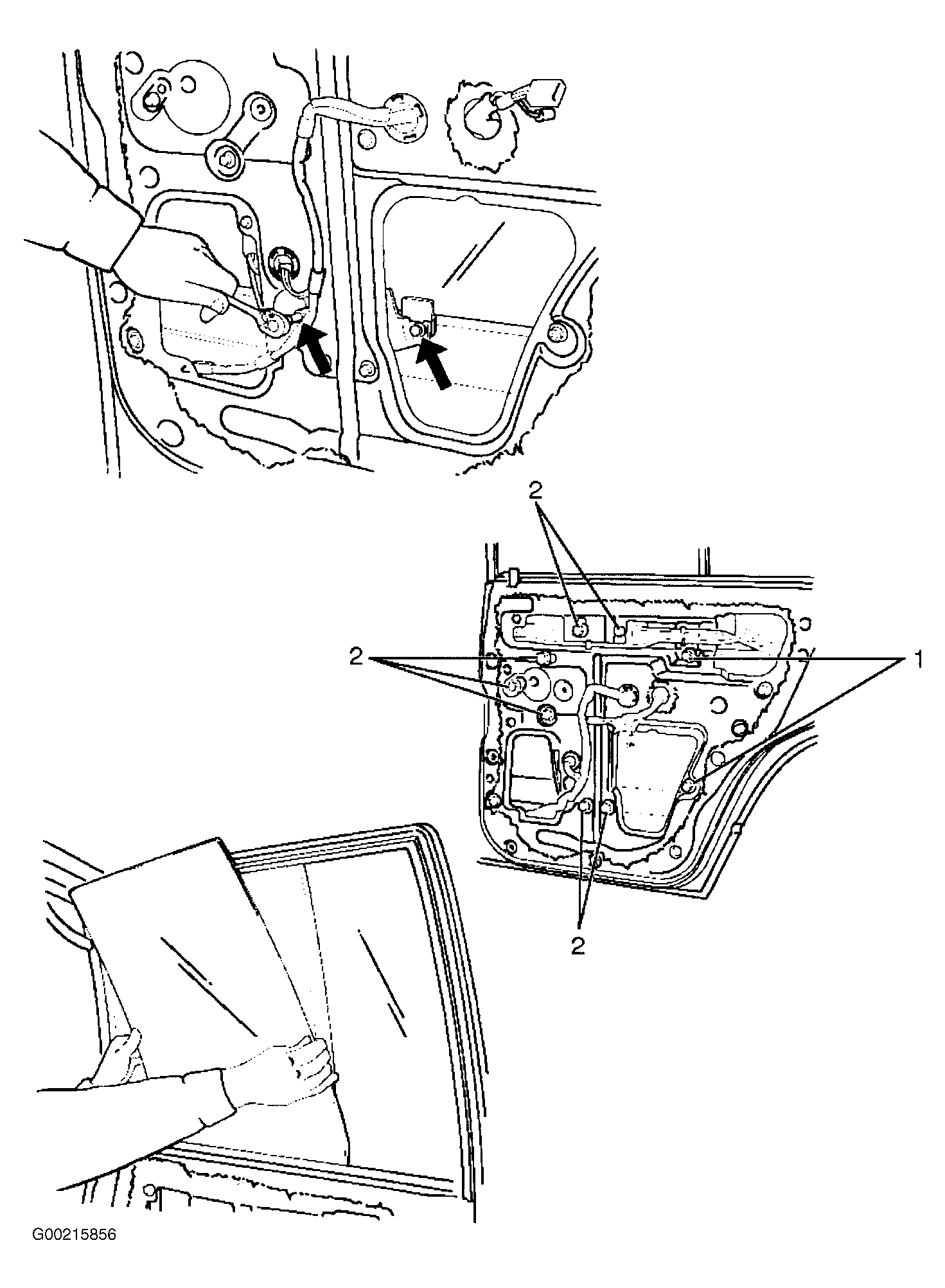

      Fig 1: Removing Glass Down To Position To Remove Fixing Bolt
      G00215856Courtesy of ISUZU MOTOR CO.
  5. Remove window regulator. See Fig 2 .
    • Disconnect regulator motor connector (4) and remove window regulator cable fixing clip (3) from door panel, if equipped with power windows.
    • Remove window regulator 7 fixing bolts (2) and pull regulator out from lower hole or door panel.

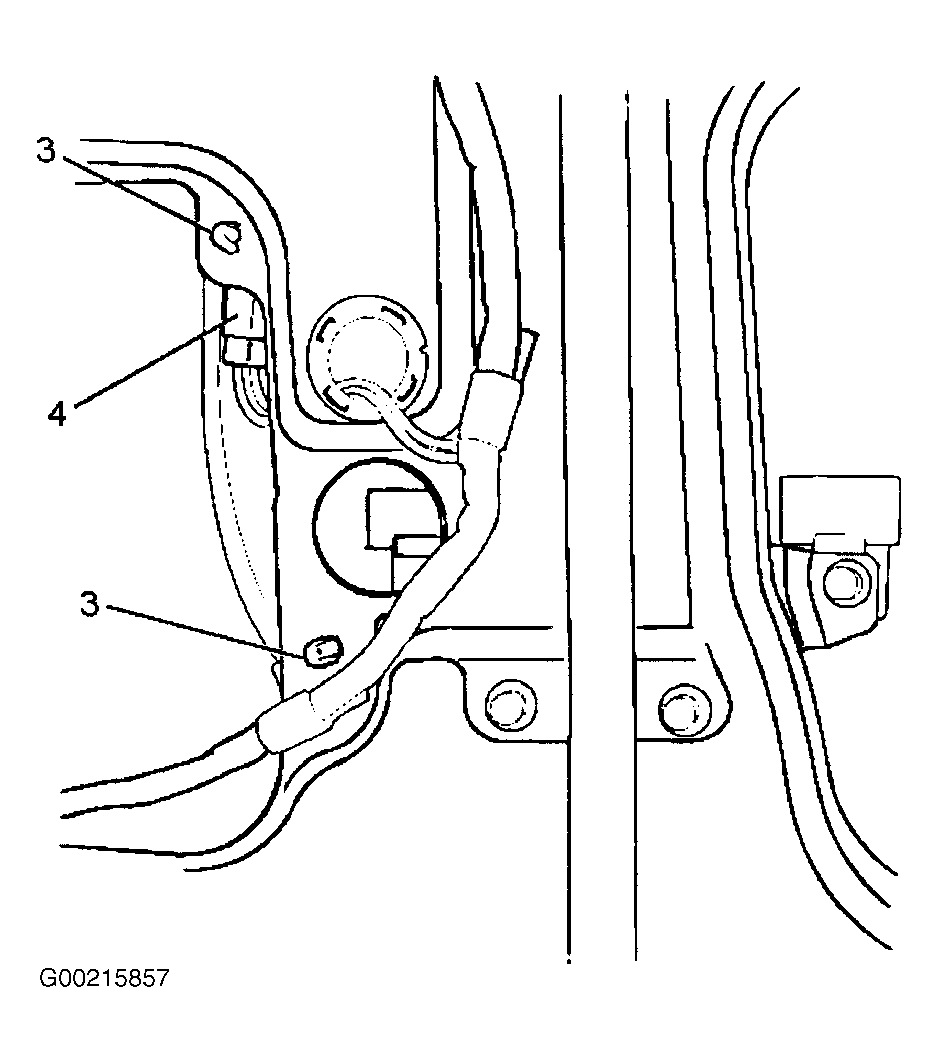

      Fig 2: Removing Window Regulator
      G00215857Courtesy of ISUZU MOTOR CO.
