Rear Door Trim Panel: Installation

To install, follow removal steps in reverse order, noting following points:

1. When installing inside handle (1), assemble temporarily to inside handle link (2). See Fig 1 .

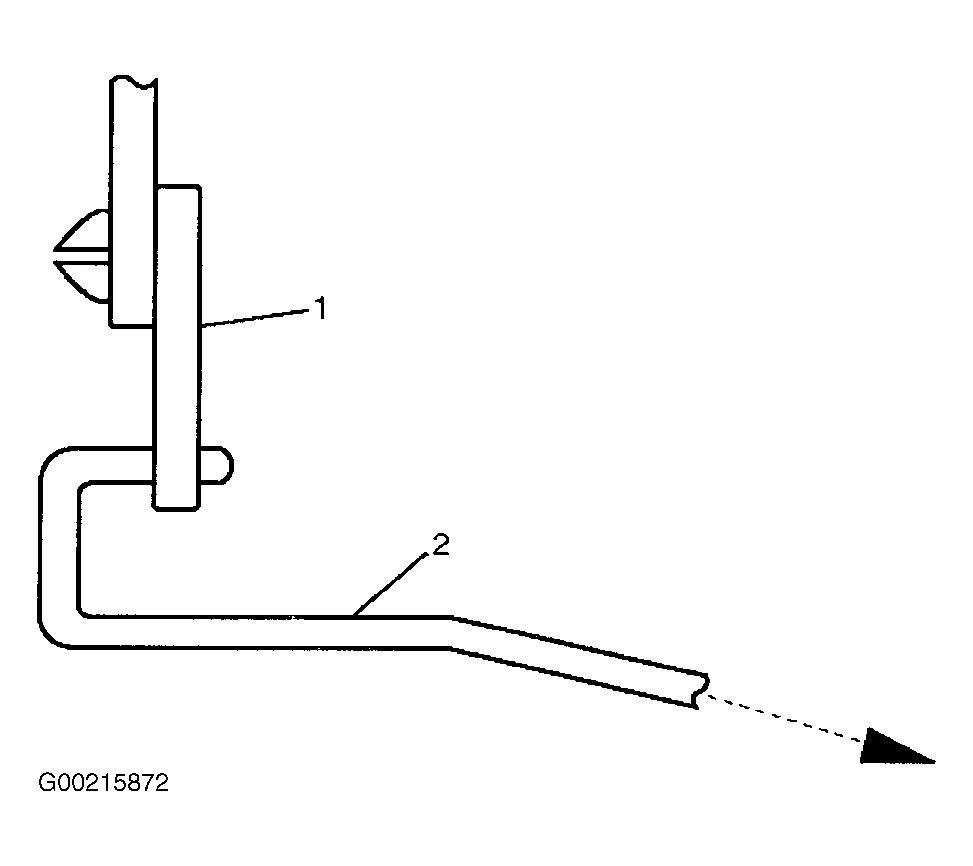

   Fig 1: Installing Inside Handle & Link

   Courtesy of ISUZU MOTOR CO.
2. Pass inside handle through mounting hole of trim panel. Assemble trim panel. Engage securely seven clips into the door panel. Also, connect courtesy light connector. Leave connector of power window drawn out to its prescribed position, so that it will not caught.
3. Put back inside handle (3) to original position of link (5). Fit claw (4) of inside handle securely into hole of door panel. Fix handle with screw. See Fig 2 .

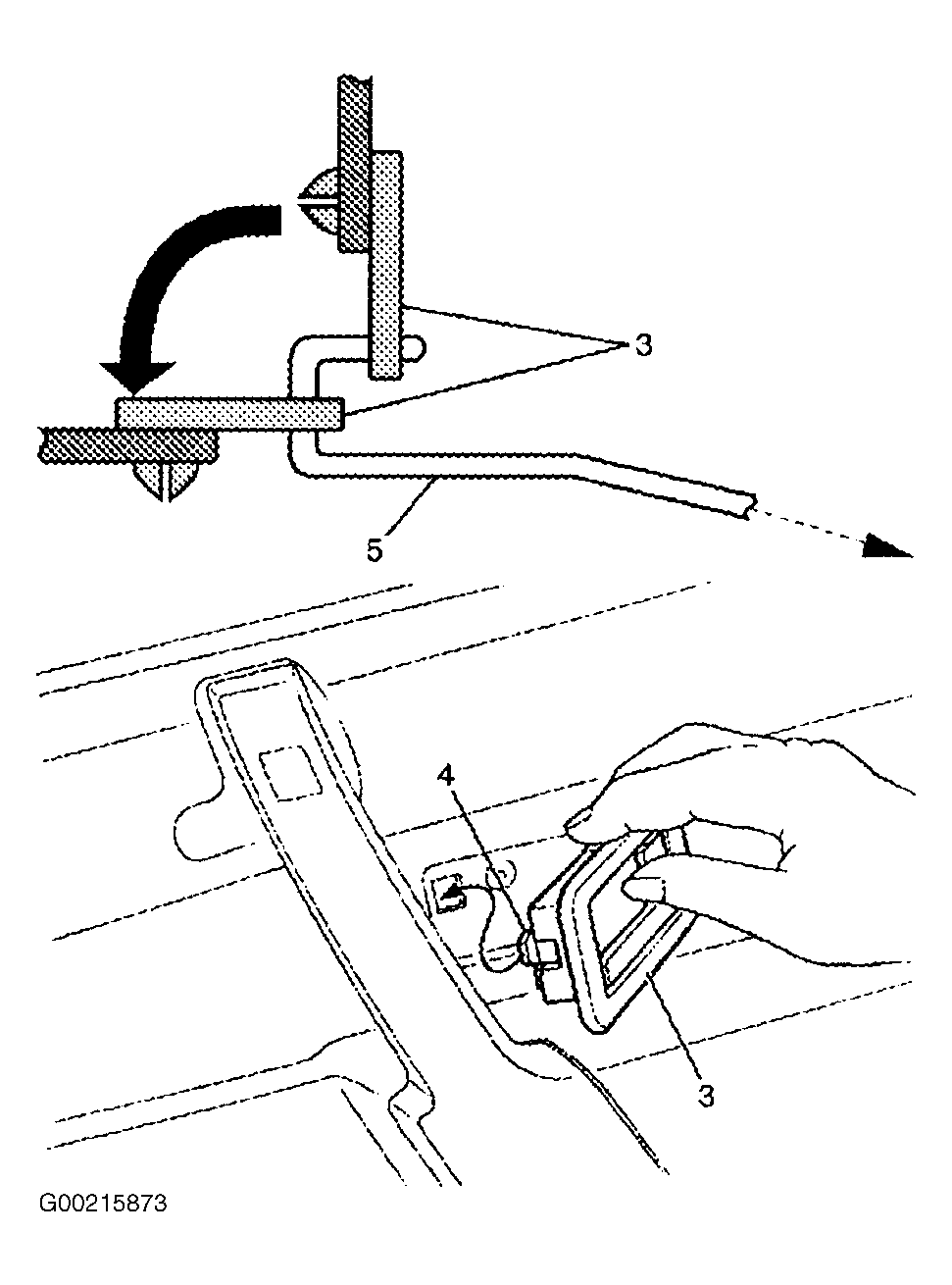

   Fig 2: Installing Inside Handle

   Courtesy of ISUZU MOTOR CO.
