Front Door Trim Panel: Removal

Disconnect battery ground cable.

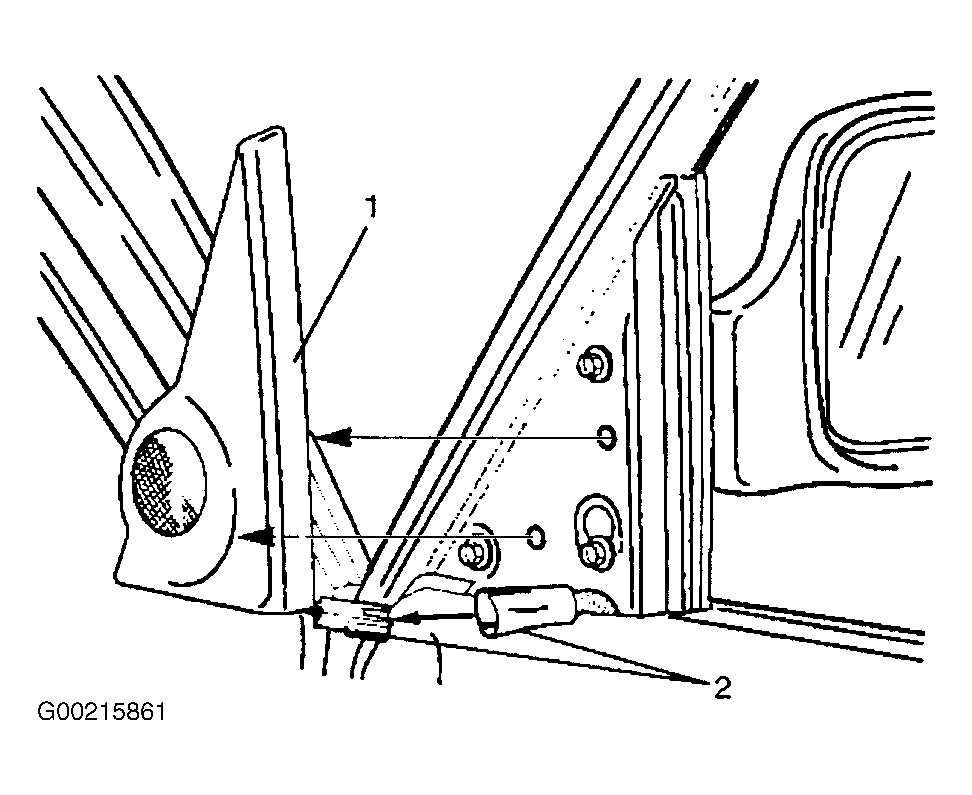

Remove door mirror cover/tweeter (1). See Fig 1 .
- Remove connector (2), if equipped with tweeter.

  Fig 1: Removing Door Mirror Cover/Tweeter
  Courtesy of ISUZU MOTOR CO.

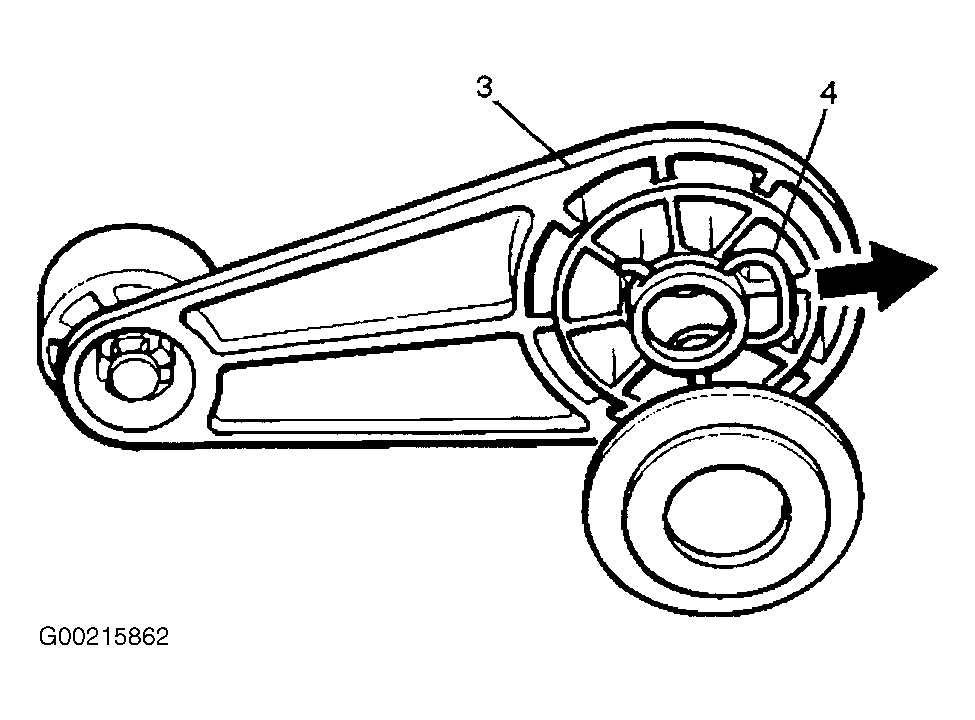

Remove regulator handle (3). See Fig 2 .
- Pull hook (4) out and remove regulator handle.

  Fig 2: Removing Regulator Handle
  Courtesy of ISUZU MOTOR CO.

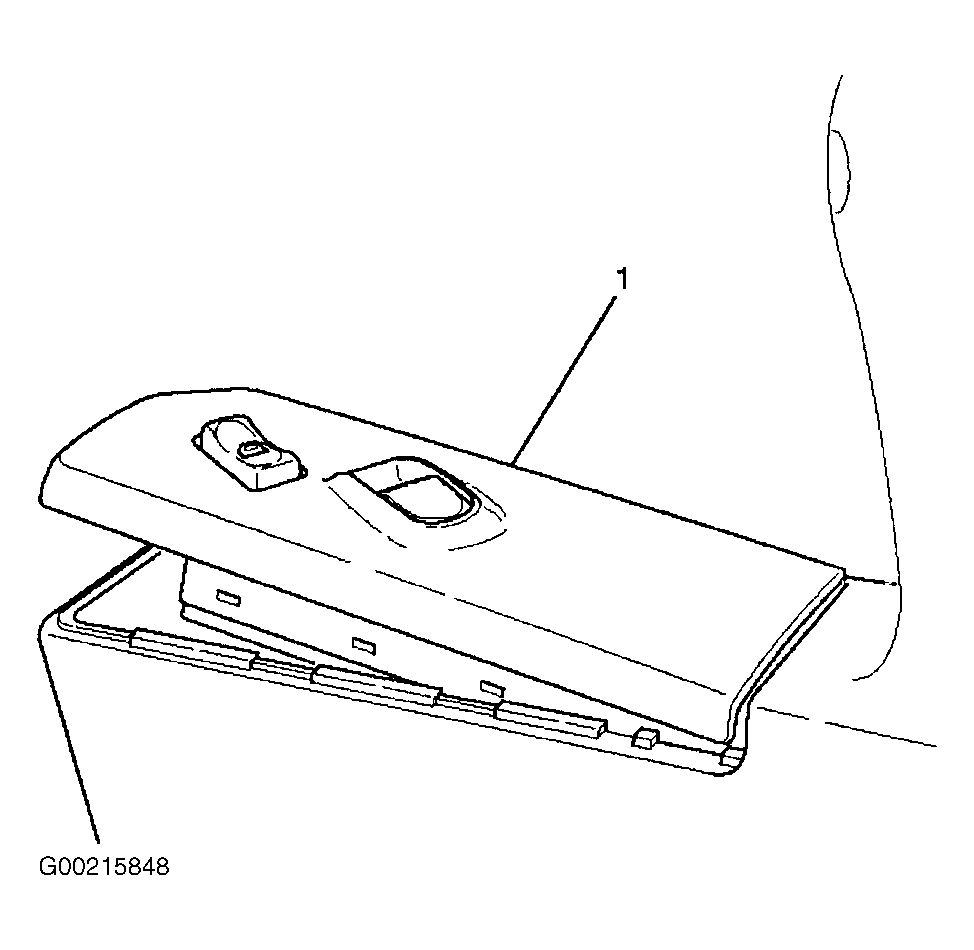

Remove power window switch (5). See Figure .
- Pry power window switch out and disconnect switch connector.
Remove speaker cover.
Remove front speaker.
- Remove front speaker fixing screws in order to disconnect speaker connector.

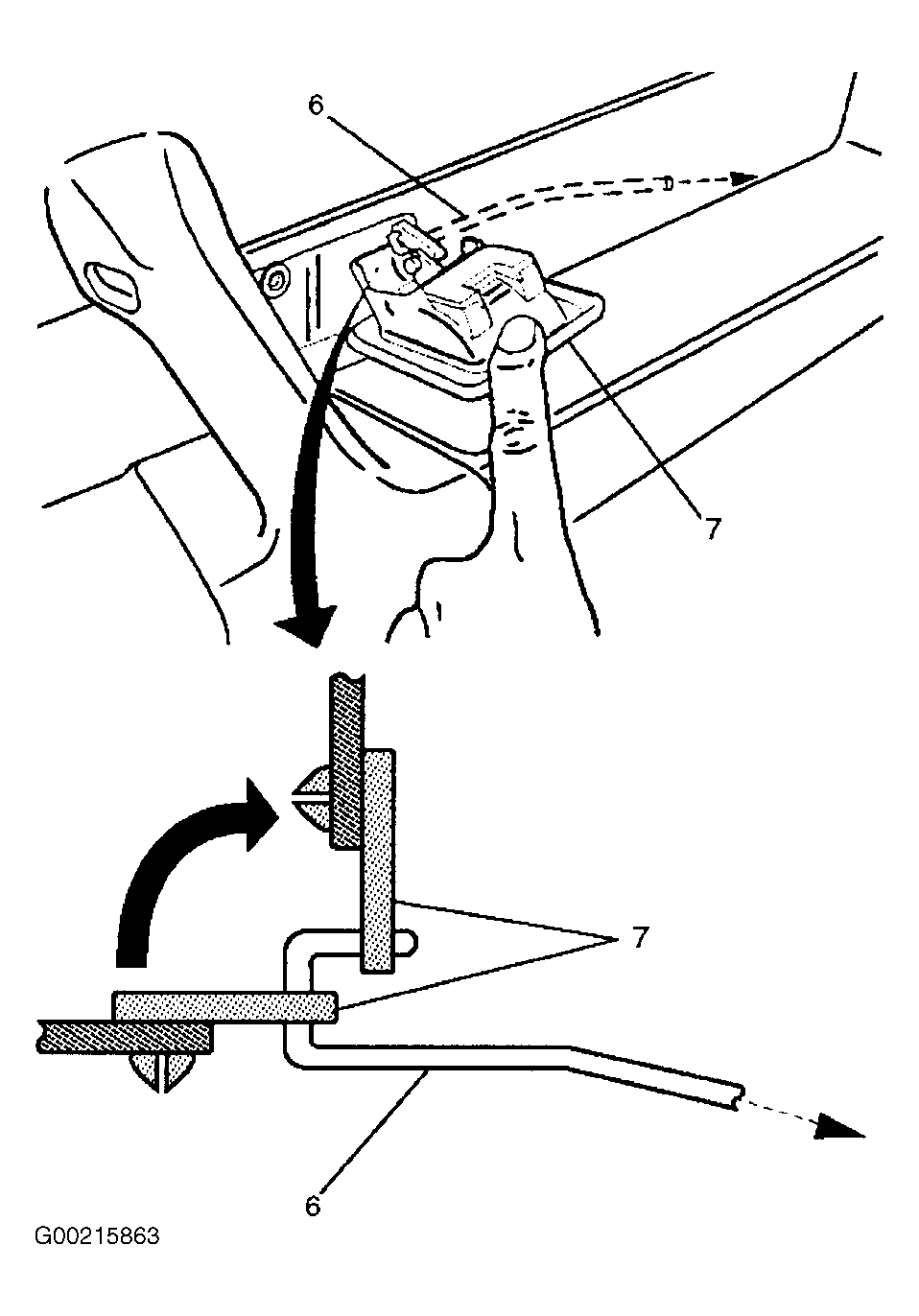

Remove inside handle fixing screw. See Fig 3 .
- Remove screw that fixes inside handle (7), slide inside handle to position and leave it there for the moment.
  CAUTION: Take care NOT to impose excessive force on inside handle link (6), lest this link is elongated, which could make it impossible to operate door with inside handle.

  Fig 3: Removing Inside Handle Fixing Screw
  Courtesy of ISUZU MOTOR CO.

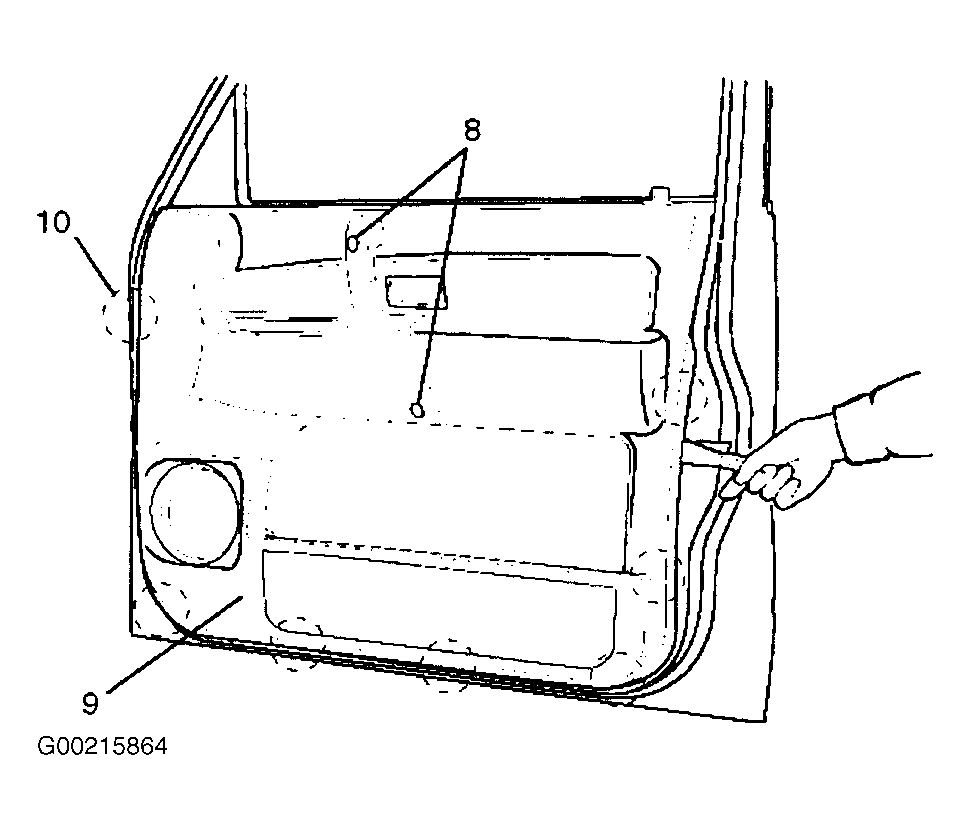

Remove door trim panel (9). See Fig 4 .
- Remove two fixing screws (8) in order to take off seven clips (10) form door panel.

  Fig 4: Removing Door Trim Panel
  Courtesy of ISUZU MOTOR CO.

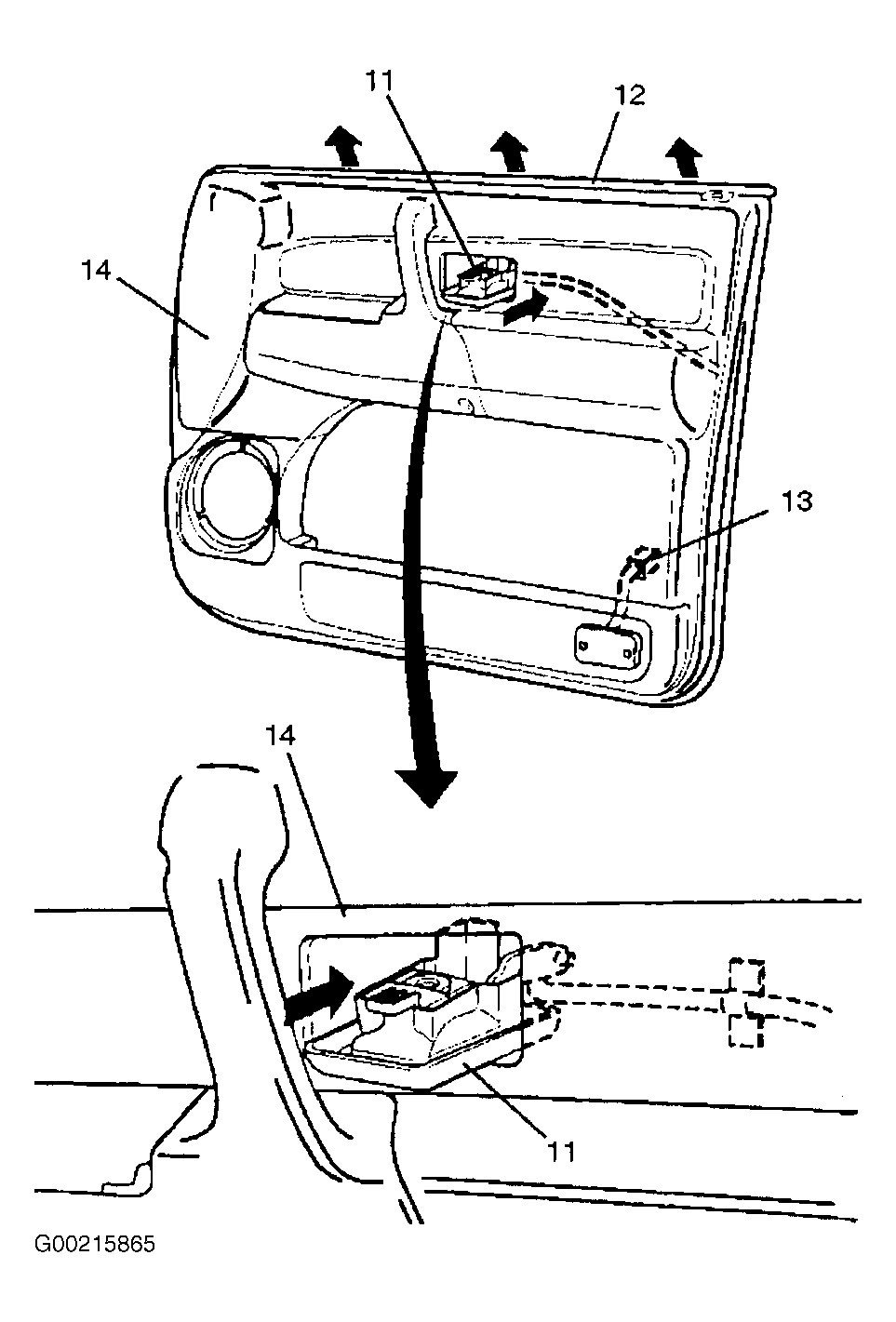

- Disconnect courtesy light connector (13) to lift door trim panel (14) and unlock engagement of waist seal (12) section. Then, pass inside handle (11) through mounting hole of trim panel, and detach trim panel. See Fig 5 .

  Fig 5: Disconnecting Courtesy Light, Trim Panel, Waist Seal & Inside Handle
  Courtesy of ISUZU MOTOR CO.
Remove inside handle.
Removing door would panel. See DOOR WOOD PANEL .
