Home >> Isuzu >> 2002 >> Trooper S, 4WD, Automatic >> Repair and Diagnosis >> Transmission >> Transfer Case >> Driveline Control System (Tod) >> System Components >> Parts Location >> Notes

Parts Location: Notes

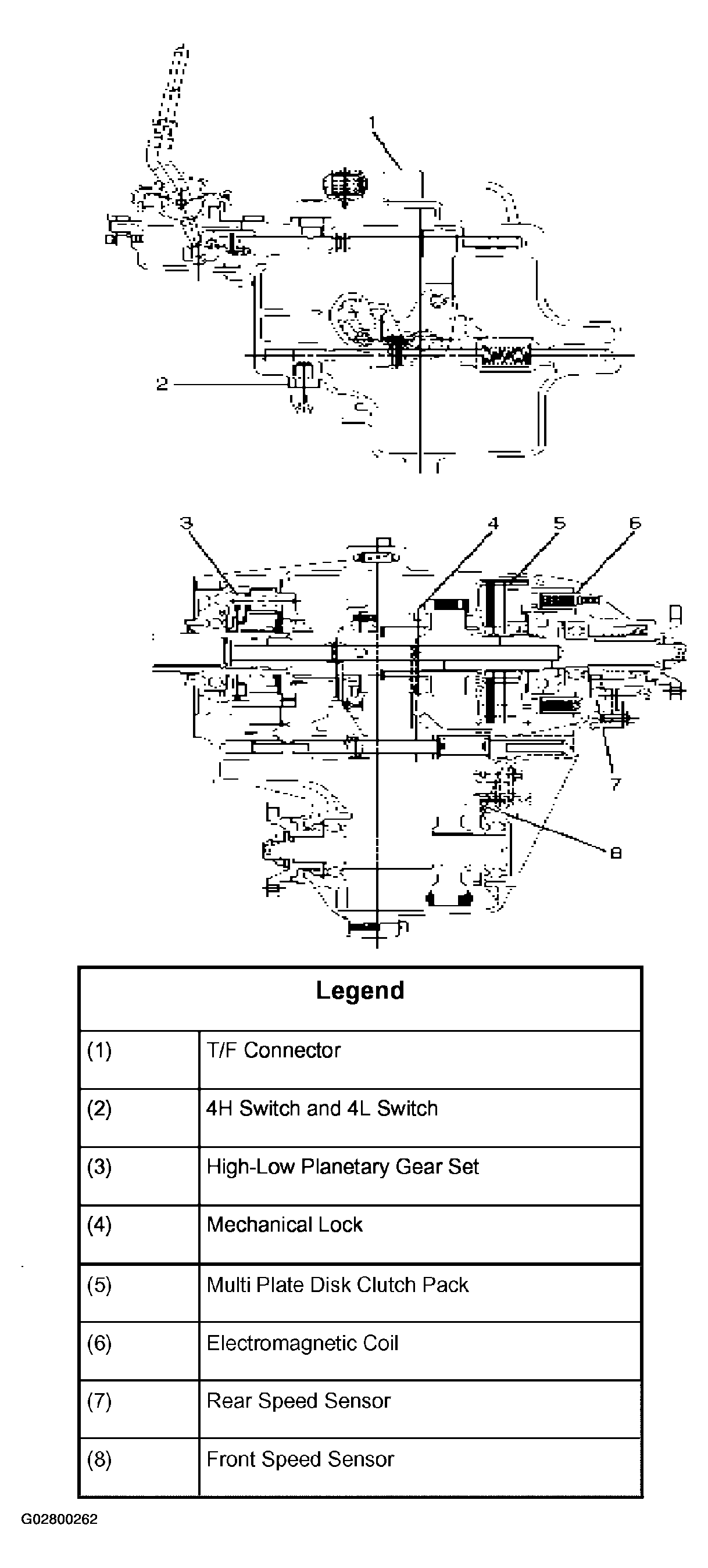

Fig 1: Identifying Driveline Control System (TOD) Components

G02800262

Courtesy of ISUZU MOTOR CO.
