Trooper S, 4WD, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Driveline Control System (Tod)
>>
Checking Failed Pin
>>
Connector Pin Assignment
>>
Notes
Connector Pin Assignment: Notes

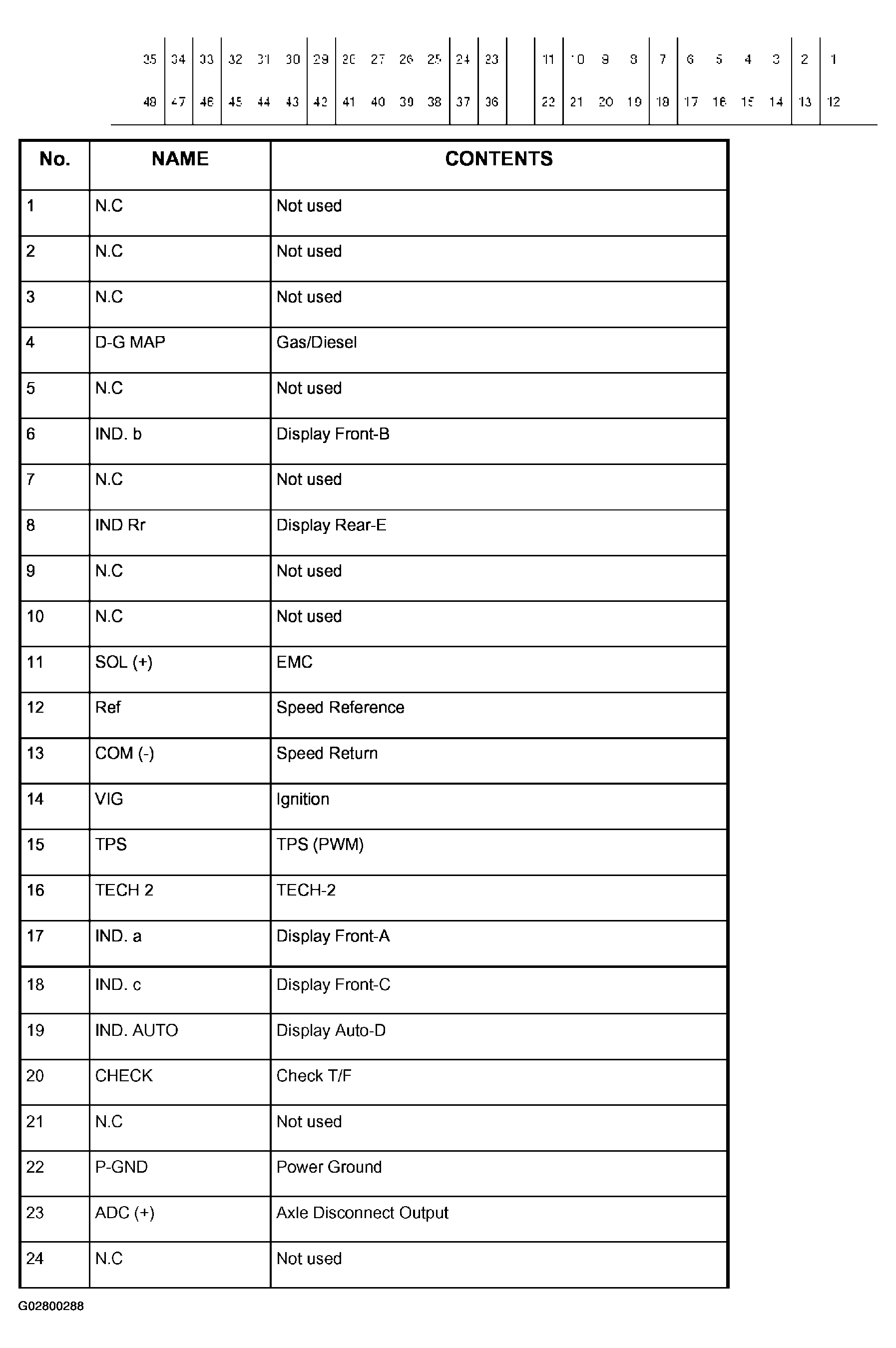

Fig 1: Connector Pin Assignment Chart (1 Of 2)
Courtesy of ISUZU MOTOR CO.

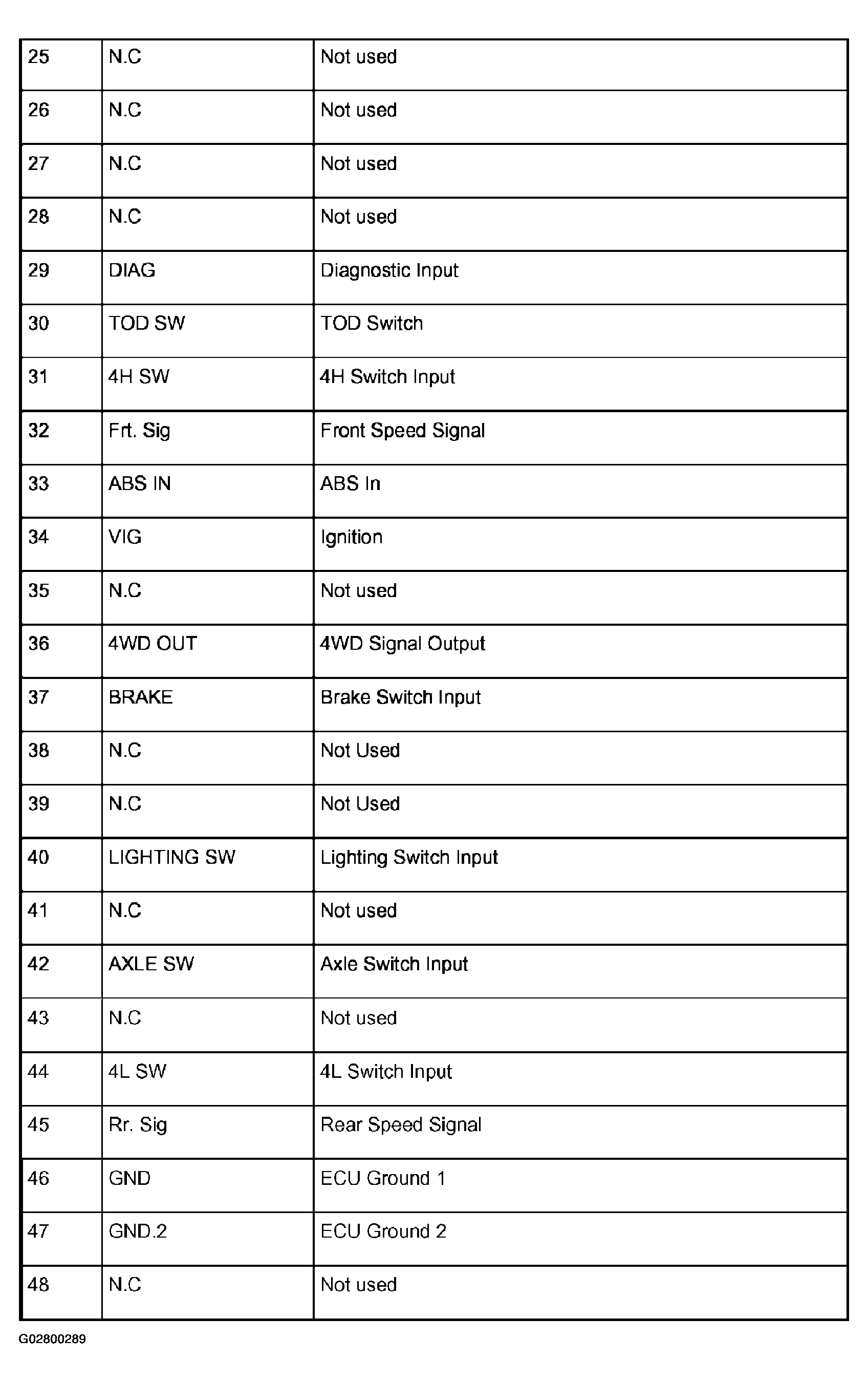

Fig 2: Connector Pin Assignment Chart (2 Of 2)
Courtesy of ISUZU MOTOR CO.
