Powertrain Control Module (PCM)

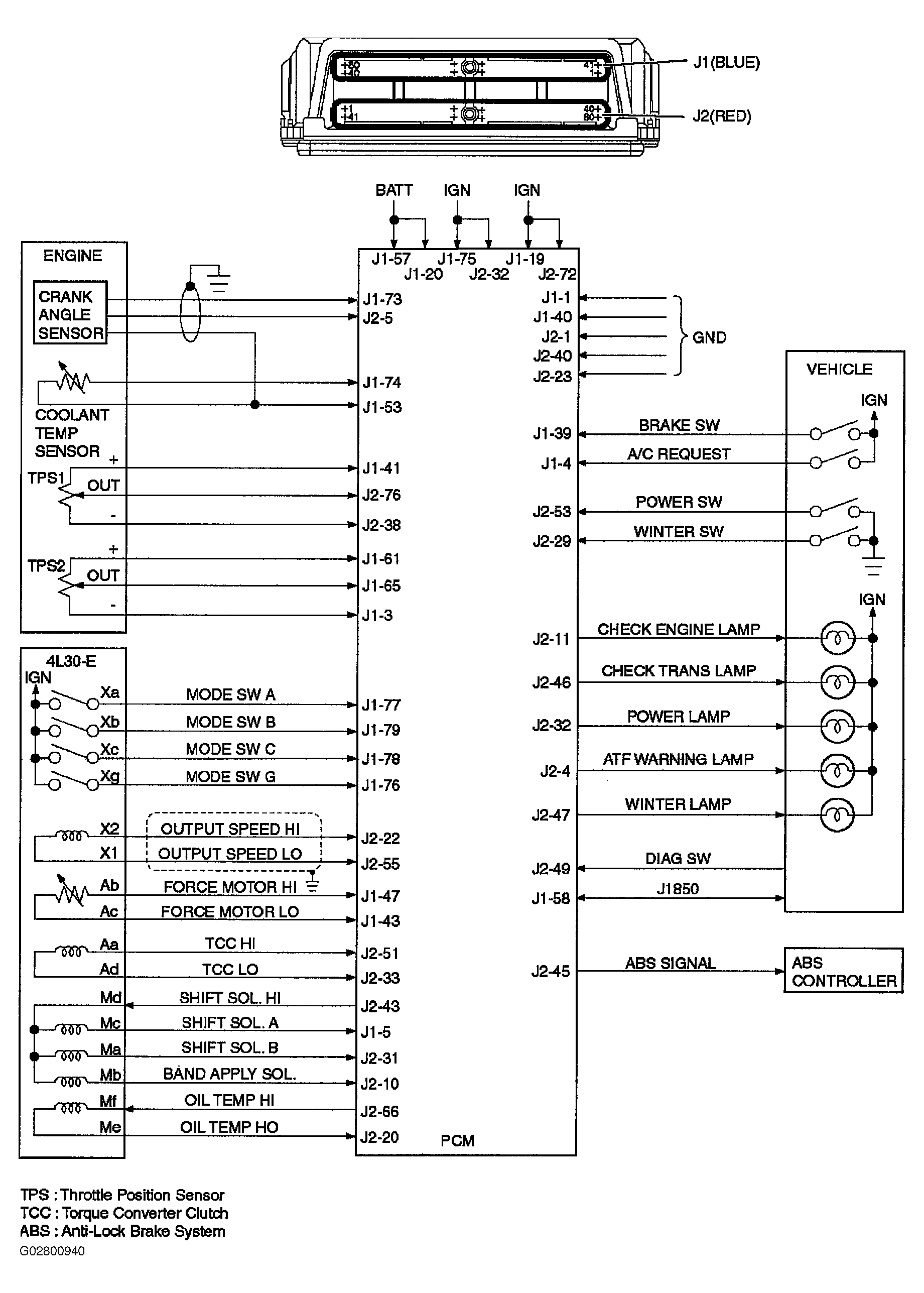

Fig 1: Identifying Powertrain Control Module (PCM)
G02800940Courtesy of ISUZU MOTOR CO.
