Gear Shift Control

  1. Shift pattern
    Fig 1: Gear Shift Control - Shift Pattern
    G02800945Courtesy of ISUZU MOTOR CO.

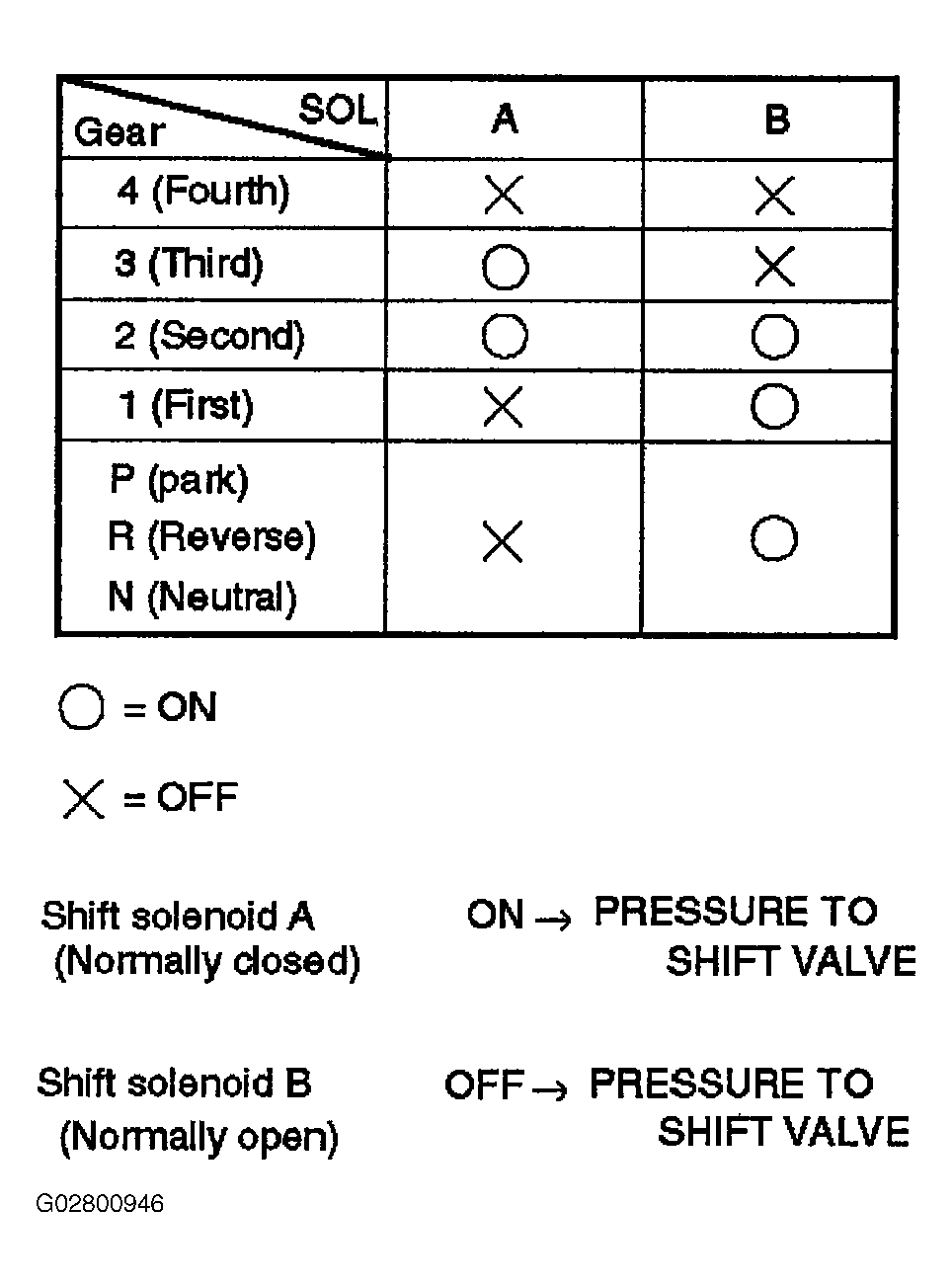

  2. Gear position

    The gear is selected by ON/OFF of two solenoids.

    Fig 2: Gear Shift Control - Gear Position
    G02800946Courtesy of ISUZU MOTOR CO.

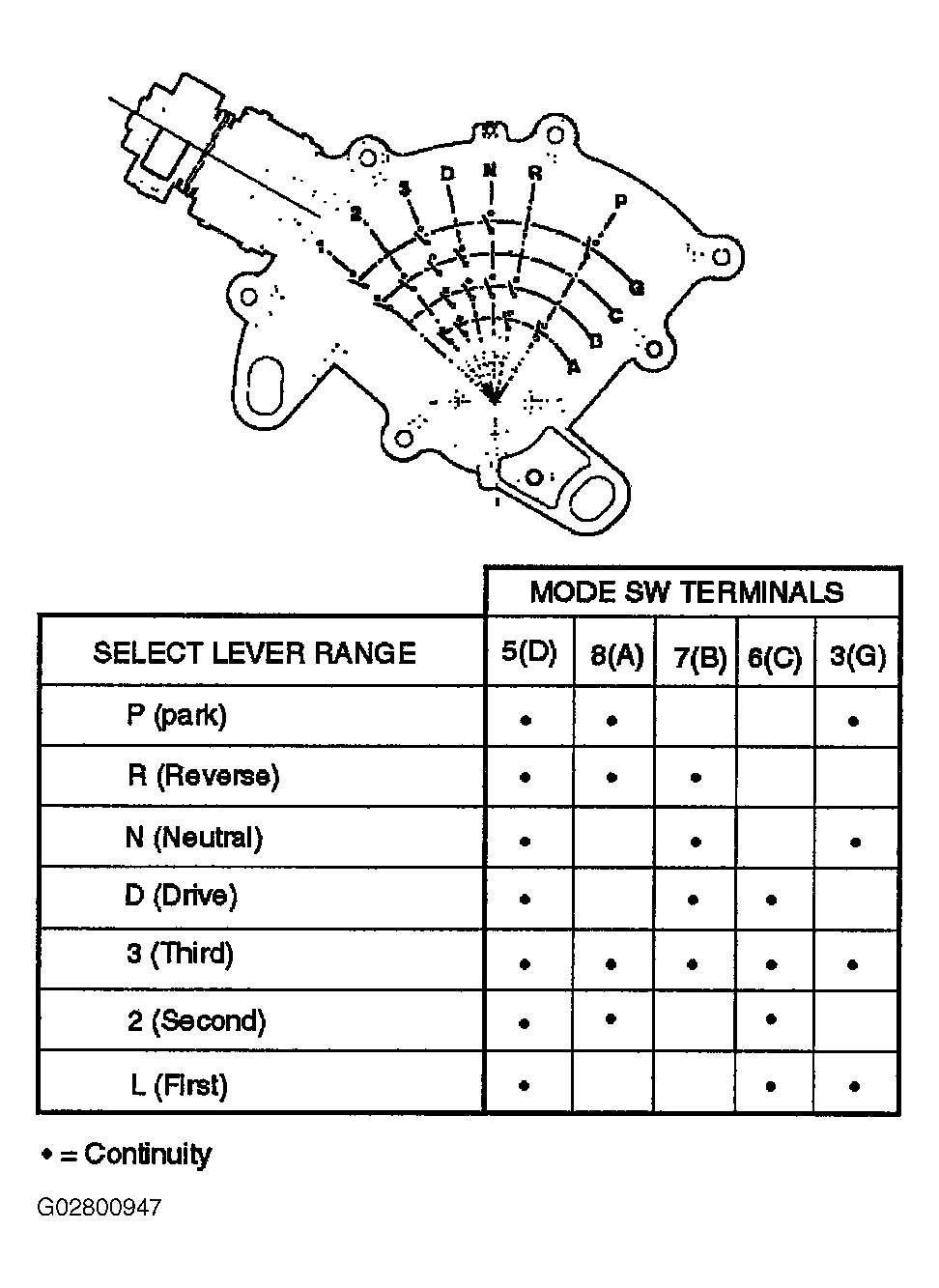

  3. Selecting gear position

    Seven types of positions can be selected according to 5 signals from the mode switch as below.

    Fig 3: Gear Shift Control - Selecting Gear Position
    G02800947Courtesy of ISUZU MOTOR CO.
