Component Locations
NOTE:

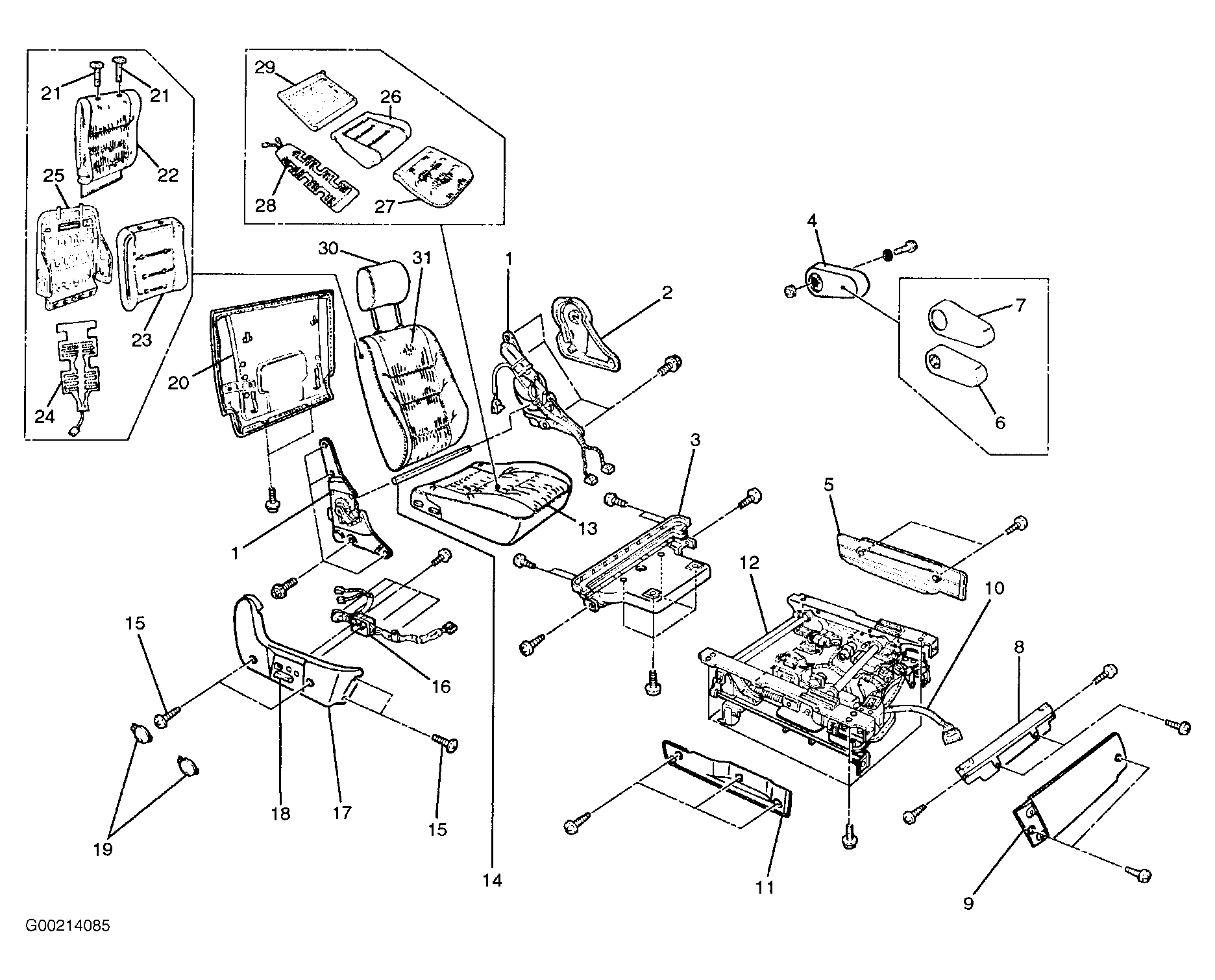

For power seat component locations, See Fig 1
and see POWER SEAT ASSEMBLY LEGEND IDENTIFICATION
.
POWER SEAT ASSEMBLY LEGEND IDENTIFICATION
| Legends | Components |
|---|---|
| (1) | Reclining Device |
| (2) | Inner Cover |
| (3) | Rear Cover |
| (4) | Armrest Assembly |
| (5) | Inner Lower Cover |
| (6) | Pad & Frame Assembly |
| (7) | Trim Cover |
| (8) | Front Lower Cover |
| (9) | Front Cover |
| (10) | Power Seat Harness |
| (11) | Outer Lower Cover |
| (12) | Adjuster Assembly |
| (13) | Seat Cushion Assembly |
| (14) | Connecting Shaft |
| (15) | Outer Cover Fixing Screws |
| (16) | Switch Assembly |
| (17) | Outer Cover |
| (18) | Switch Knob |
| (19) | Outer Cover Cap |
| (20) | Back Board Assembly |
| (21) | Guide Holder |
| (22) | Trim Cover |
| (23) | Pad Assembly |
| (24) | Seat Heater |
| (25) | Frame Assembly |
| (26) | Pad Assembly |
| (27) | Trim Cover |
| (28) | Seat Heater |
| (29) | Frame Assembly |
| (30) | Head Rest |
| (31) | Seat Back Assembly |
