Engine Cooling: Radiator: Removal

  1. Disconnect battery ground cable.
  2. Loosen a drain plug (2) to drain EC.
  3. Disconnect oil cooler hose (1) on automatic transmission (A/T).
  4. Disconnect radiator inlet hose and outlet hose from the engine.

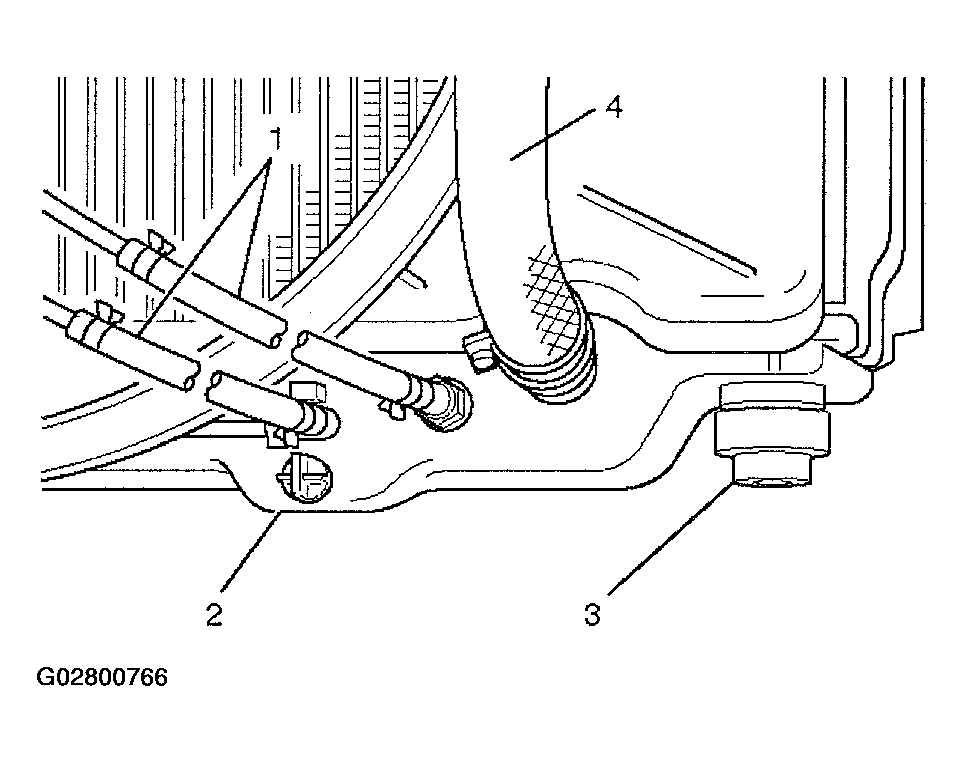

    Fig 1: Locating Drain Plug And Hoses
    G02800766Courtesy of ISUZU MOTOR CO.
  5. Remove fan guide (1), clips (3) on both sides and the bottom lock, then remove lower fan guide (3) with fan shroud (4).

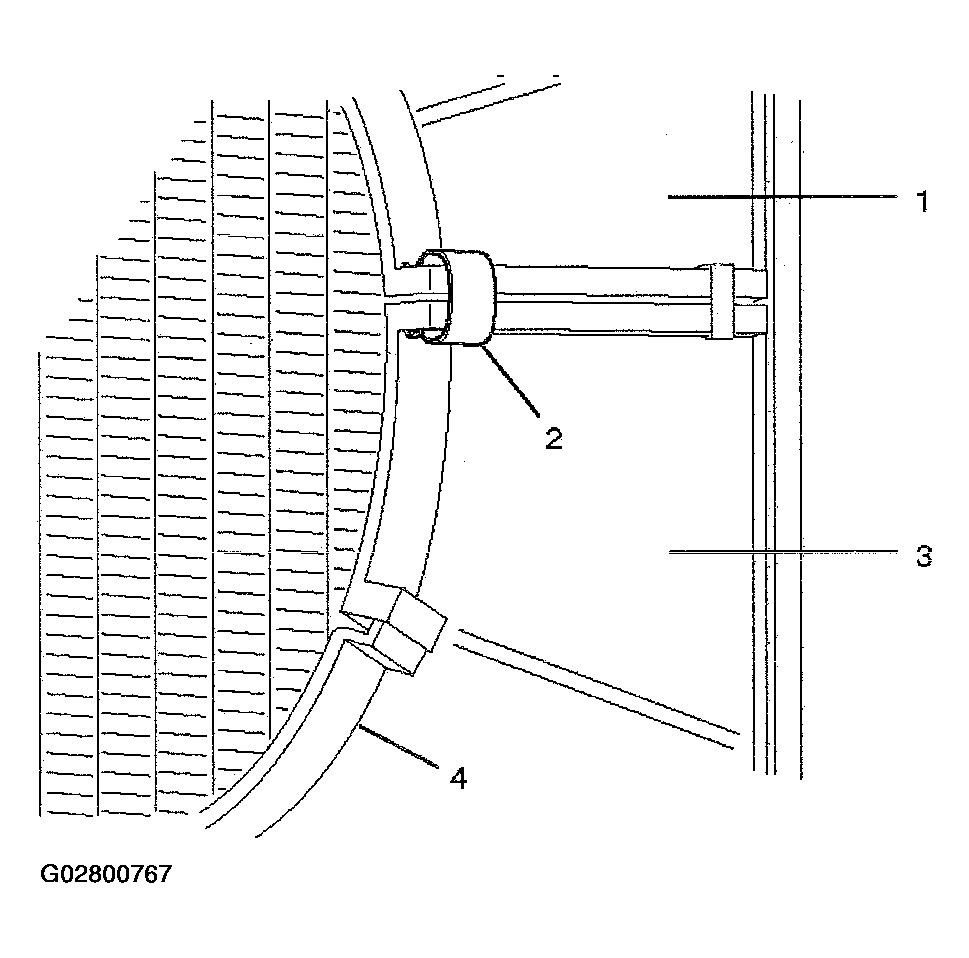

    Fig 2: Removing Fan Guides, Clips And Shroud
    G02800767Courtesy of ISUZU MOTOR CO.
  6. Disconnect the reserve tank hose (4) from radiator.
  7. Remove bracket (5).

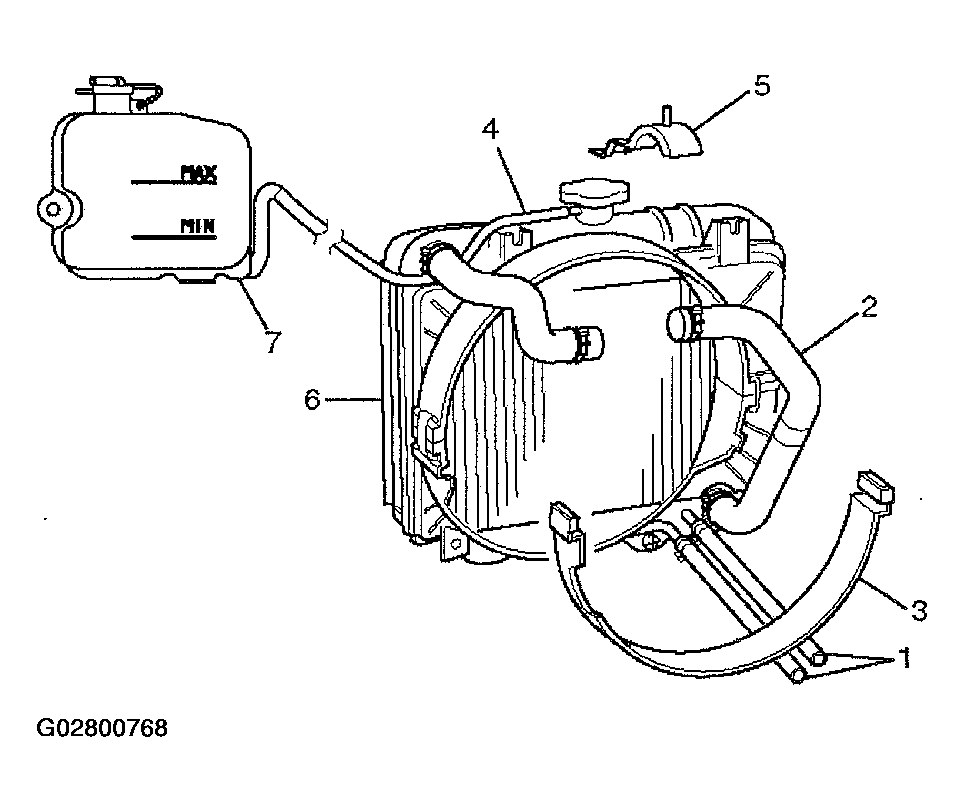

    Fig 3: Disconnecting The Reserve Tank Hose And Removing Bracket From Radiator
    G02800768Courtesy of ISUZU MOTOR CO.
  8. Lift up and remove the radiator assembly with hose, taking care not to damage the radiator core with a fan blade.
  9. Remove rubber cushions on both sides at the bottom.
