Torque Specifications

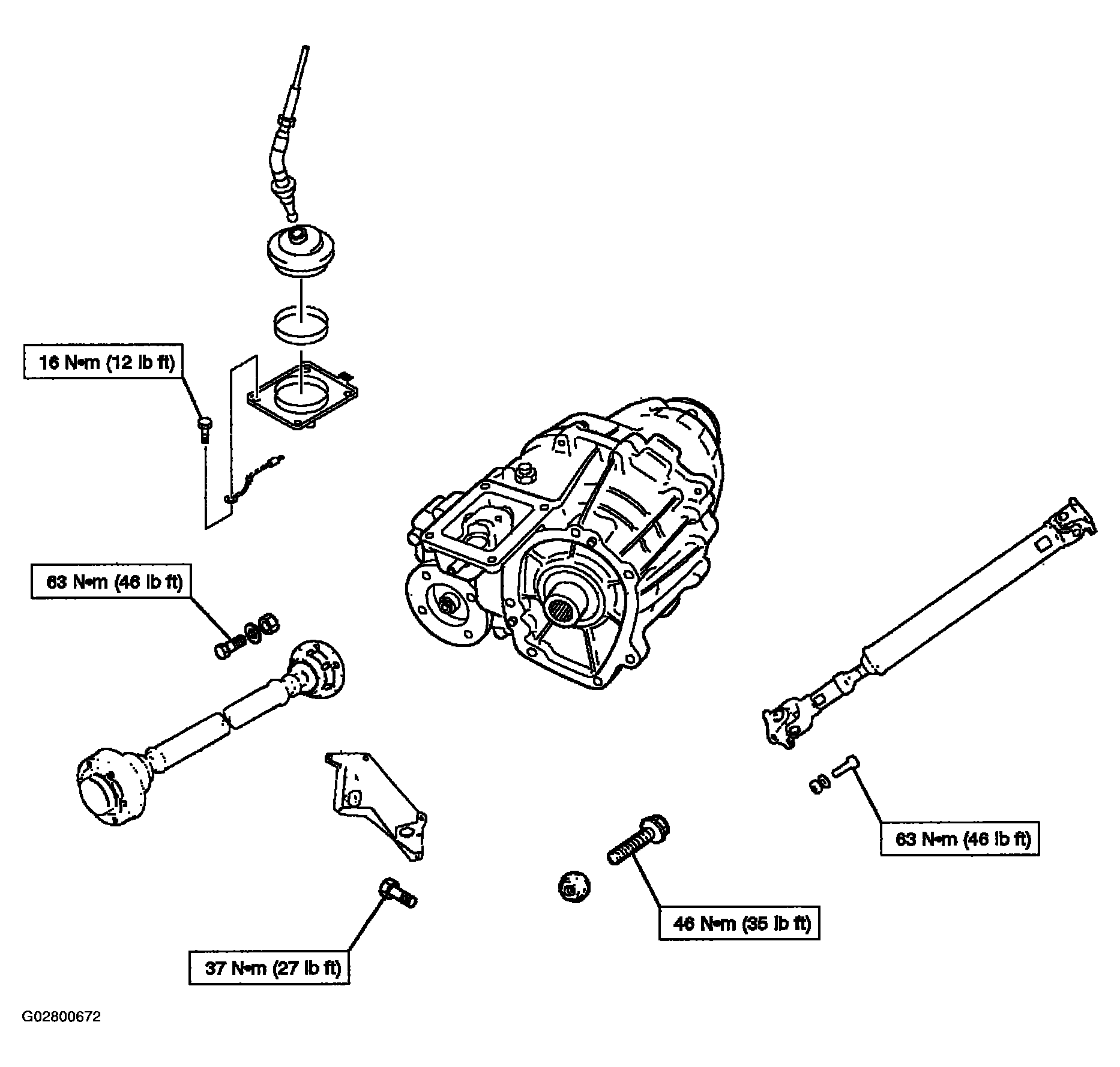

Fig 1: Transfer Case Torque Specifications (1 Of 2)

G02800672

Courtesy of ISUZU MOTOR CO.

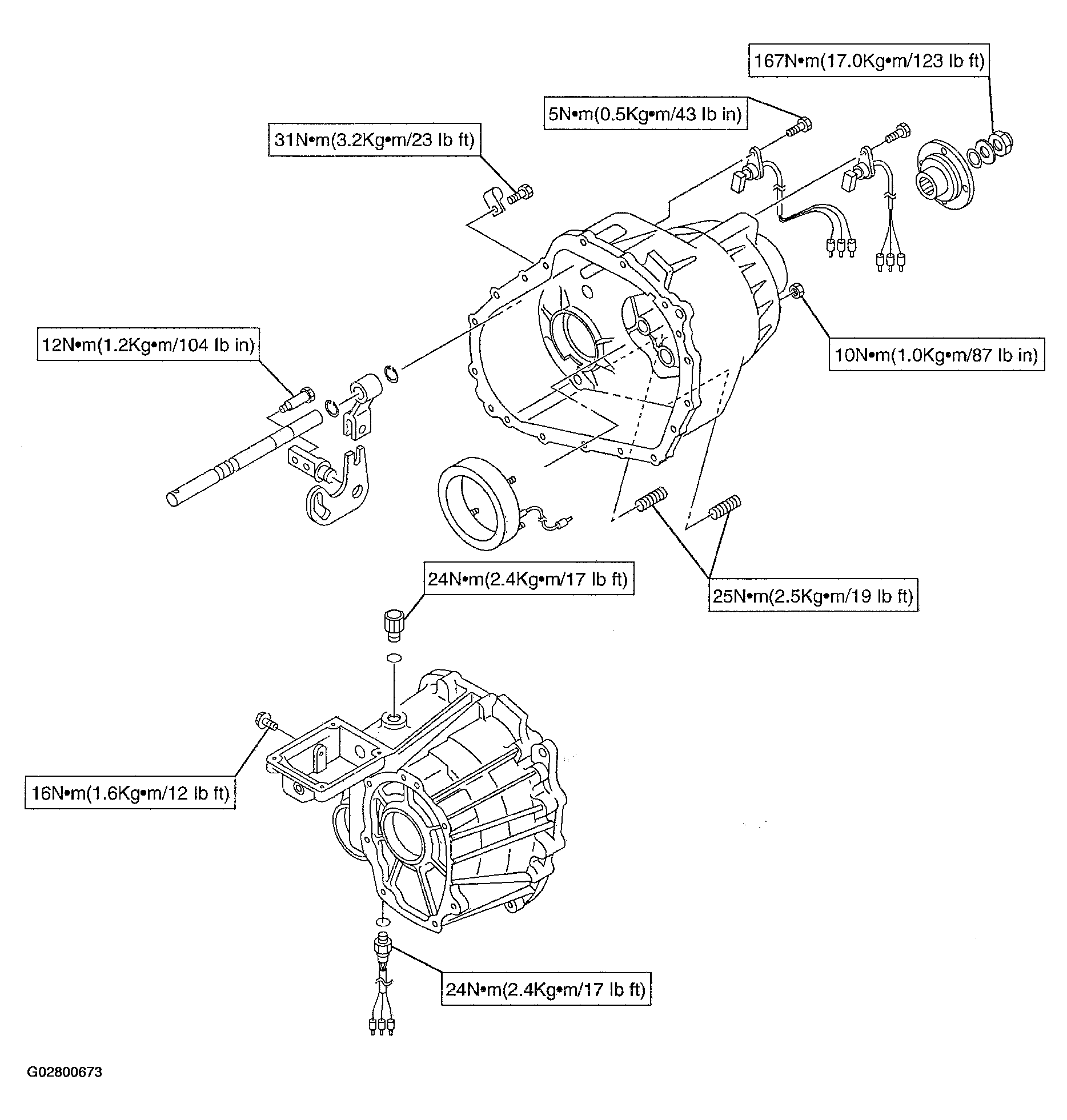

Fig 2: Transfer Case Torque Specifications (2 Of 2)

G02800673

Courtesy of ISUZU MOTOR CO.
