Transmission Control System (4L30-E)
>>
Connector List
Connector List

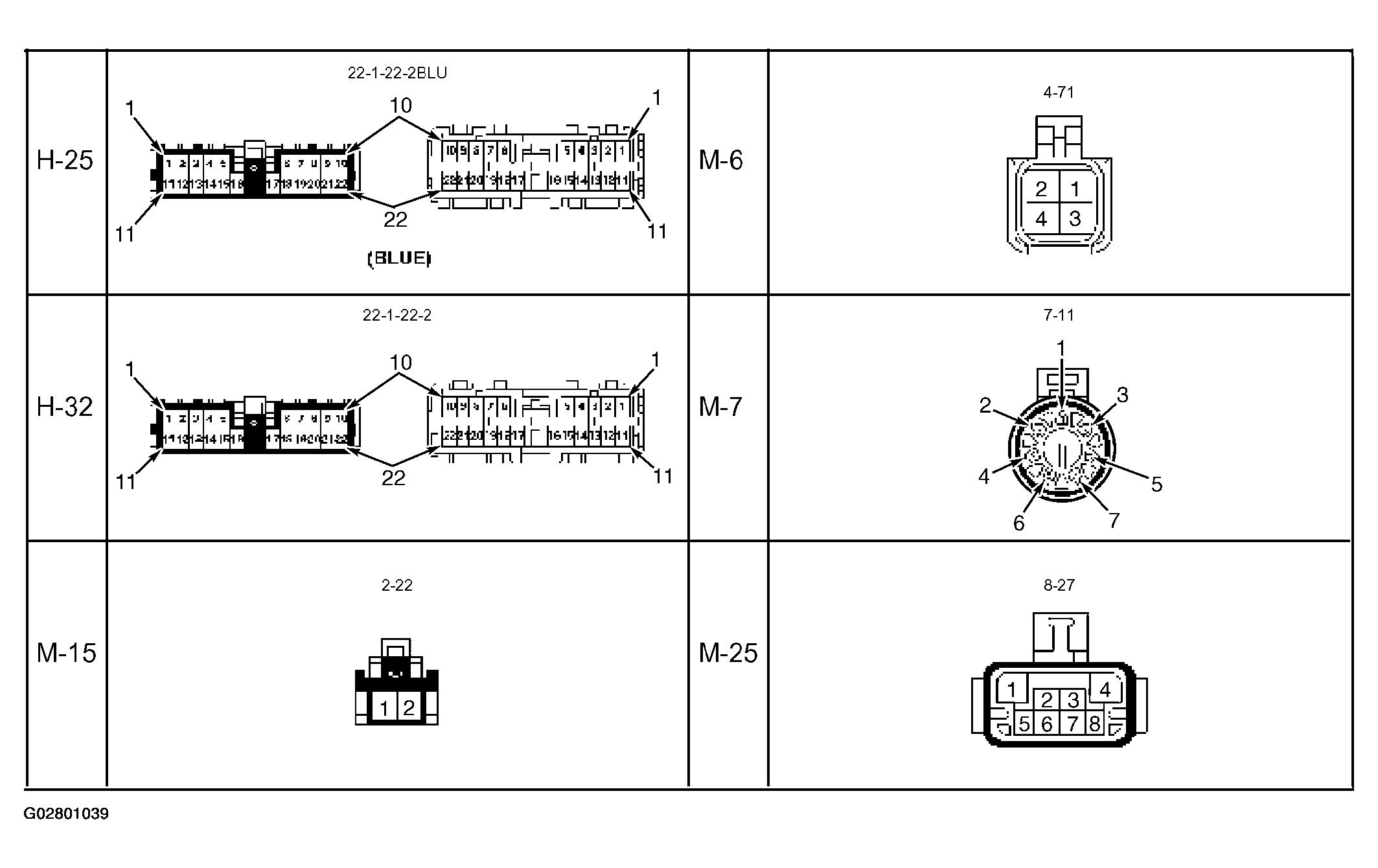

Fig 1: Identifying Harness Connector Terminals (1 Of 2)
Courtesy of ISUZU MOTOR CO.

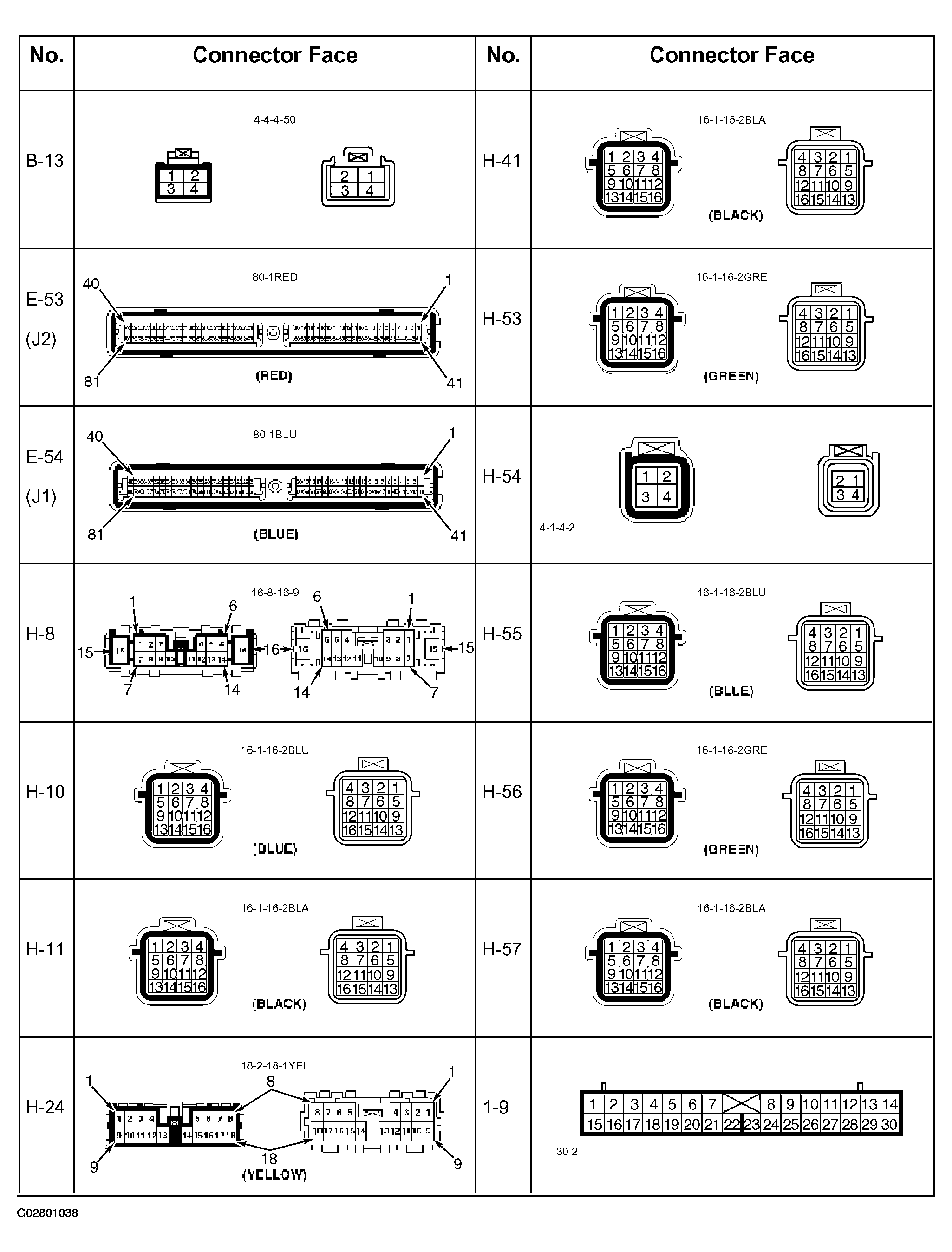

Fig 2: Identifying Harness Connector Terminals (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
