Upper Control Arm: Removal

  1. Raise the vehicle and support the frame with suitable safety stands.
  2. Remove wheel and tire assembly. .
  3. Remove the brake caliper and disconnect brake pipe. Refer to BRAKE PIPE .
  4. Support lower control arm with a jack.
  5. Remove speed sensor cable.
  6. Remove nut and cotter pin then use remover J-36831.
    CAUTION: Be careful not to break the ball joint boot.
  7. Remove upper ball joint.

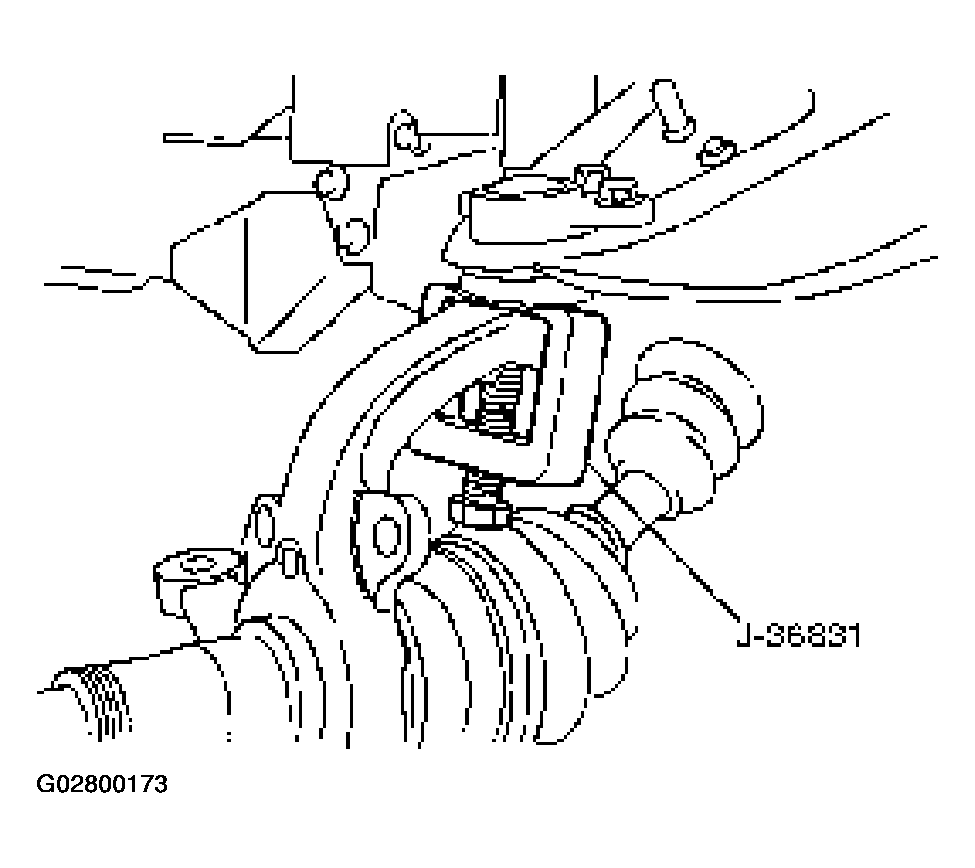

    Fig 1: Removing Upper Ball Joint
    G02800173Courtesy of ISUZU MOTOR CO.
  8. Remove bolt and plate.
  9. Remove nut assembly.
  10. Remove camber shims and note the positions and number of shims.
  11. Remove caster shims and note the positions and number of shims.
  12. Remove upper control arm assembly.
  13. Remove nut.
  14. Remove plate.
  15. Remove bushing by using remover J-29755.

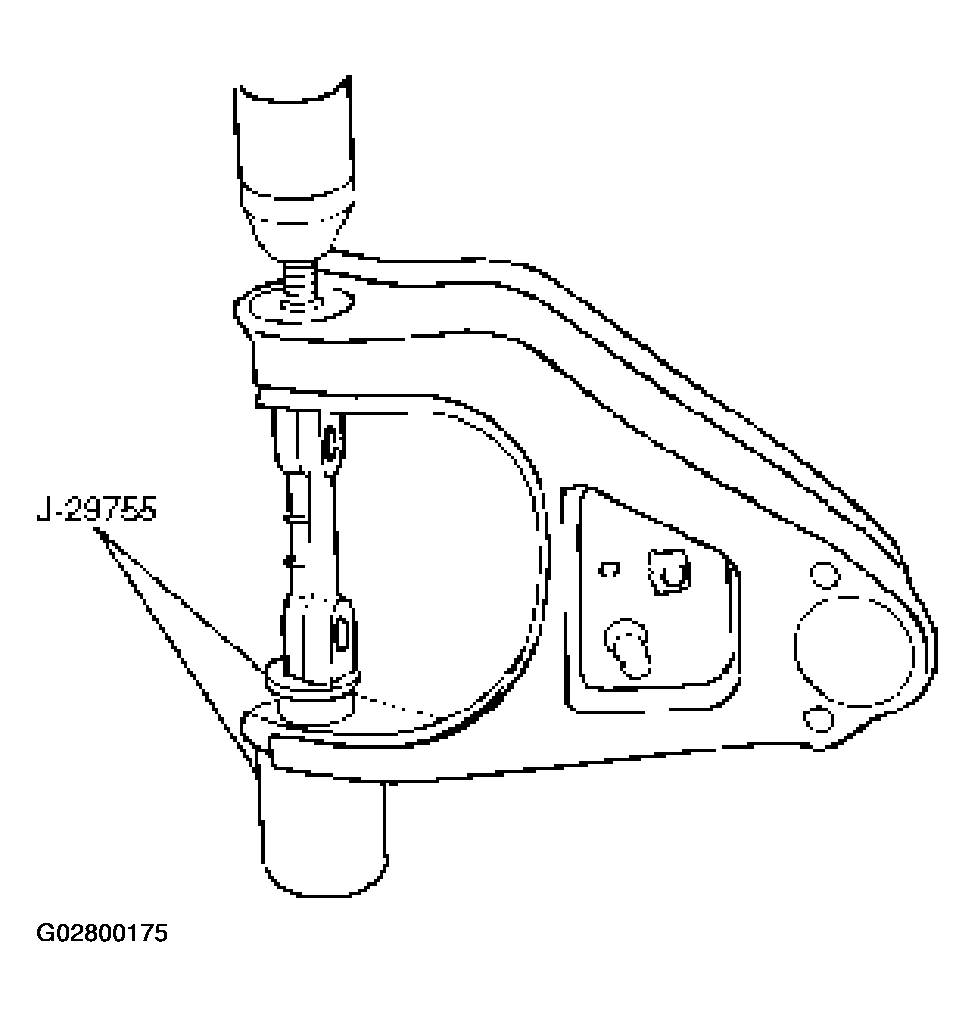

    Fig 2: Removing Bushing
    G02800174Courtesy of ISUZU MOTOR CO.
  16. Remove fulcrum pin.
    Fig 3: Removing Fulcrum Pin
    G02800175Courtesy of ISUZU MOTOR CO.
