Engine Cooling: General Description: Notes

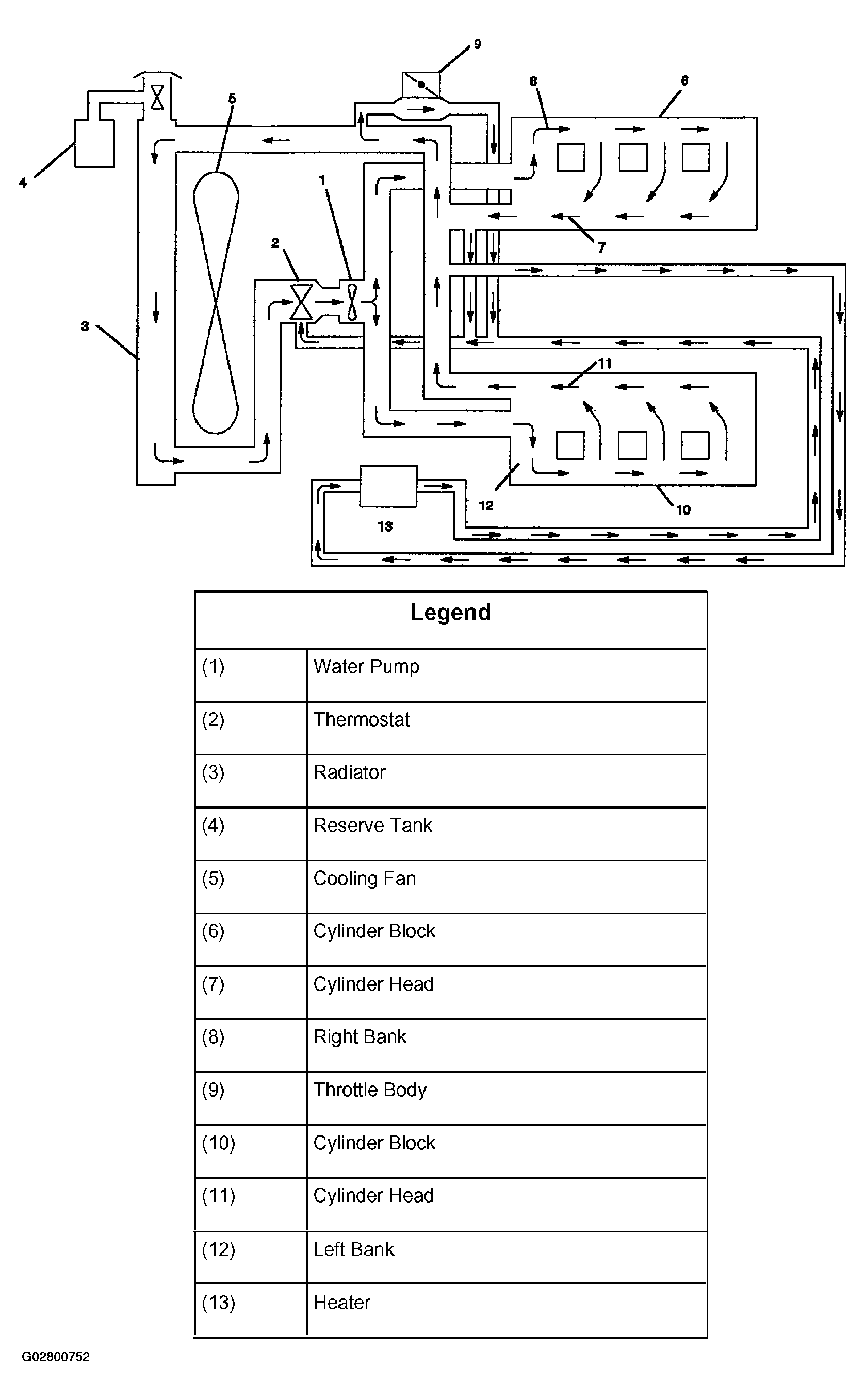

Fig 1: Identifying Engine Cooling System
G02800752Courtesy of ISUZU MOTOR CO.

The cooling system is a pressurized Engine Coolant (EC) forced circulation type which consists of a water pump, thermostat cooling fan, radiator and other components. The automatic transmission fluid is cooled by the EC in radiator.
