Front Door Trim Panel: Installation

To install, follow removal steps in reverse order, noting the following points:

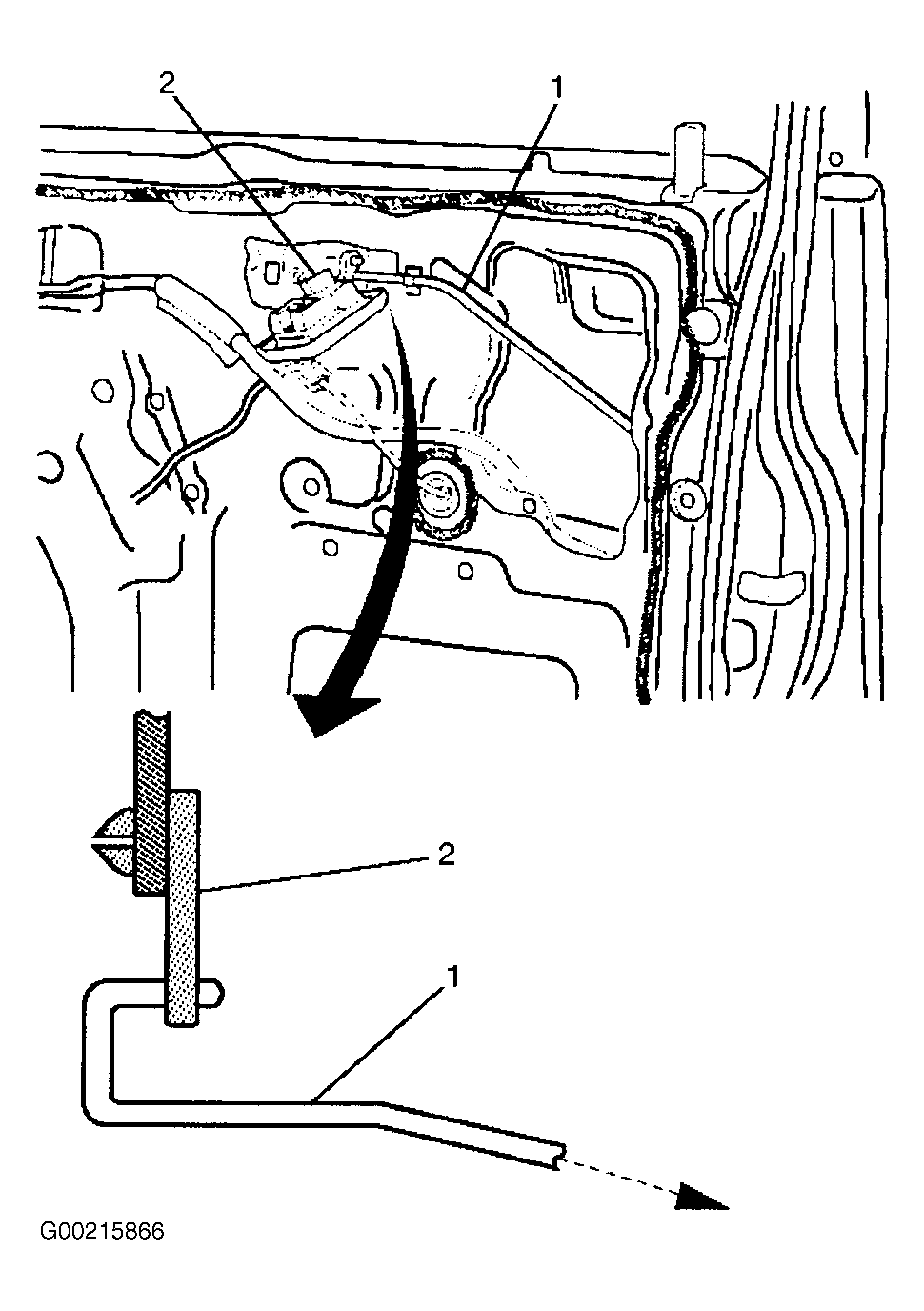

1. When installing inside handle (2), assemble it temporarily to inside handle link (1). See Fig 1 .
   Fig 1: Installing Inside Handle & Link

   Courtesy of ISUZU MOTOR CO.

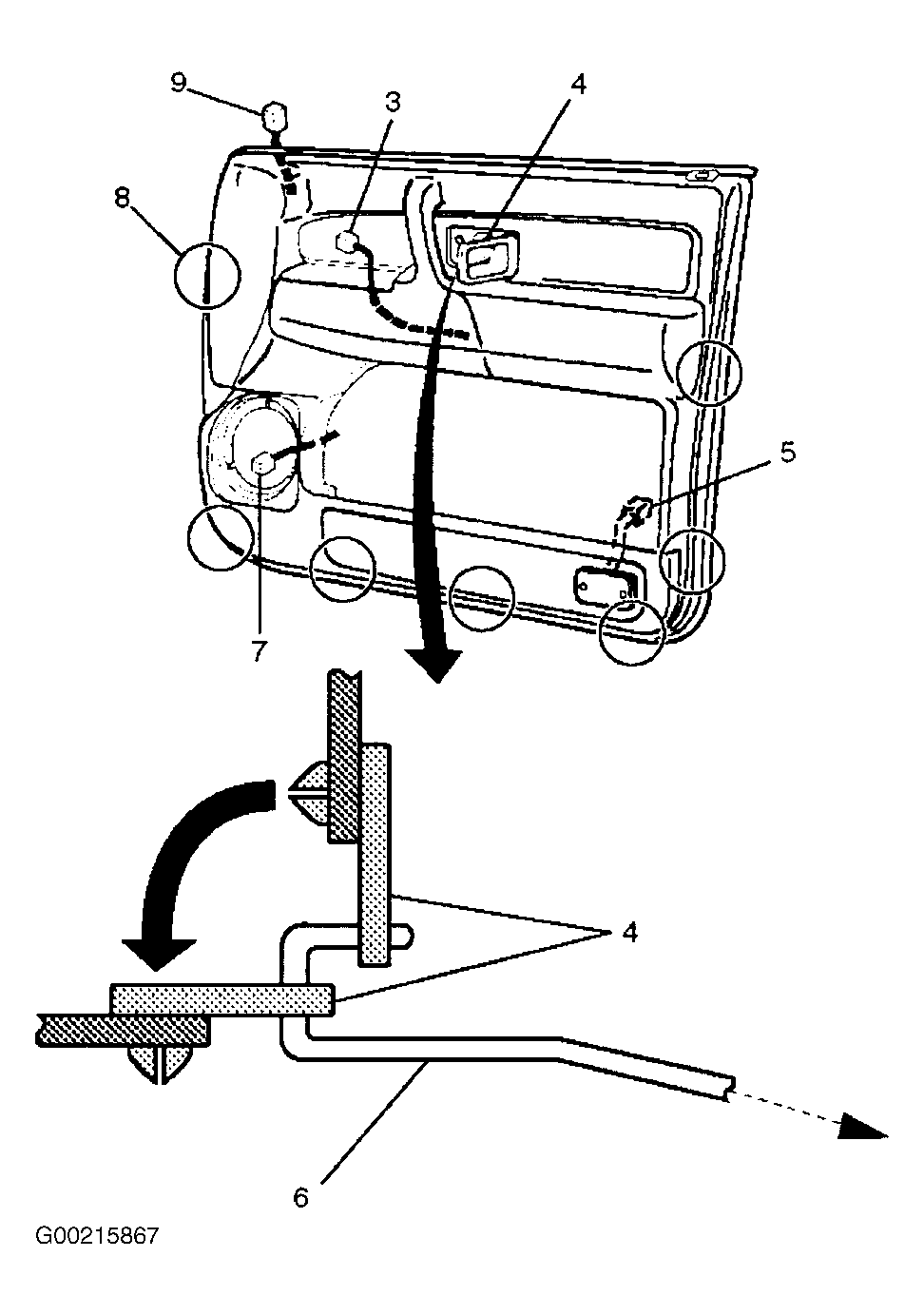

2. Pass inside handle (4) through mounting hole of trim panel and assemble trim panel. See Fig 2 . Engage seven clips (8) into door panel. Also, connect courtesy light connector (5) and leave connectors of speaker (7), tweeter (9) and power window (3) drawn out to their prescribed positions, so that they will be caught. Then, put inside handle (4) to normal position of inside handle link (6).
   Fig 2: Assembling Trim Panel

   Courtesy of ISUZU MOTOR CO.

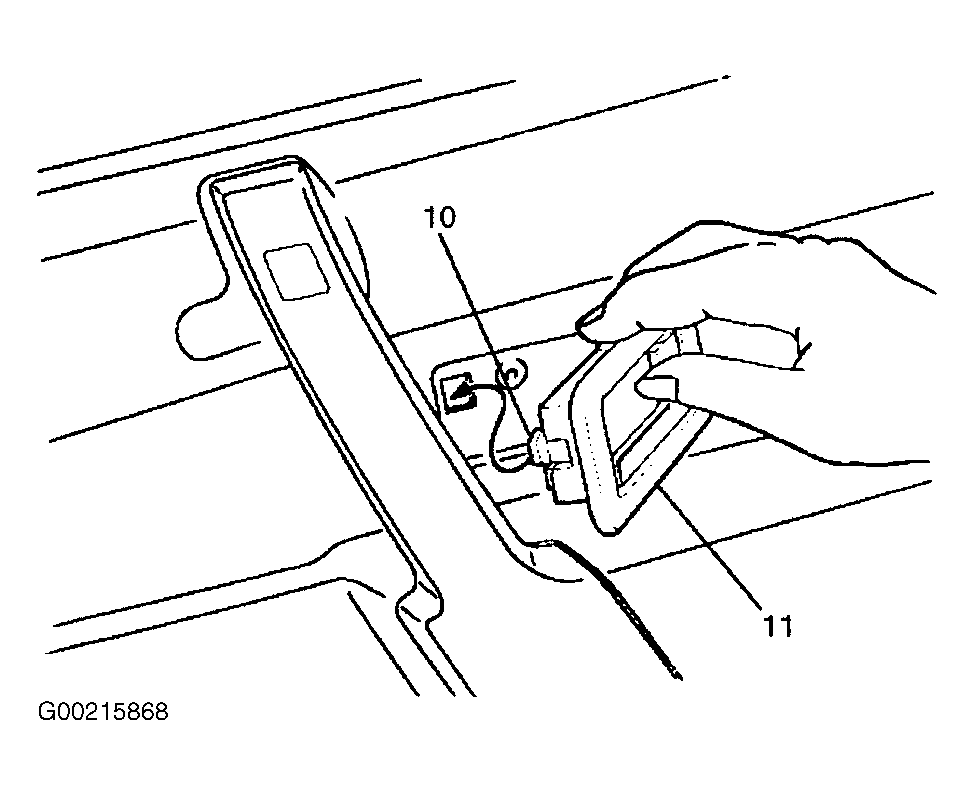

3. Fit claw (10) of inside handle (11) securely into hole of door panel and fix inside handle with screw. See Fig 3 .
   Fig 3: Fitting Claw & Securing Door Panel

   Courtesy of ISUZU MOTOR CO.
