Isuzu
>>
2002
>>
Trooper LS, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission (4L30-E)
>>
Sprag Unit
>>
Disassembled View
Disassembled View

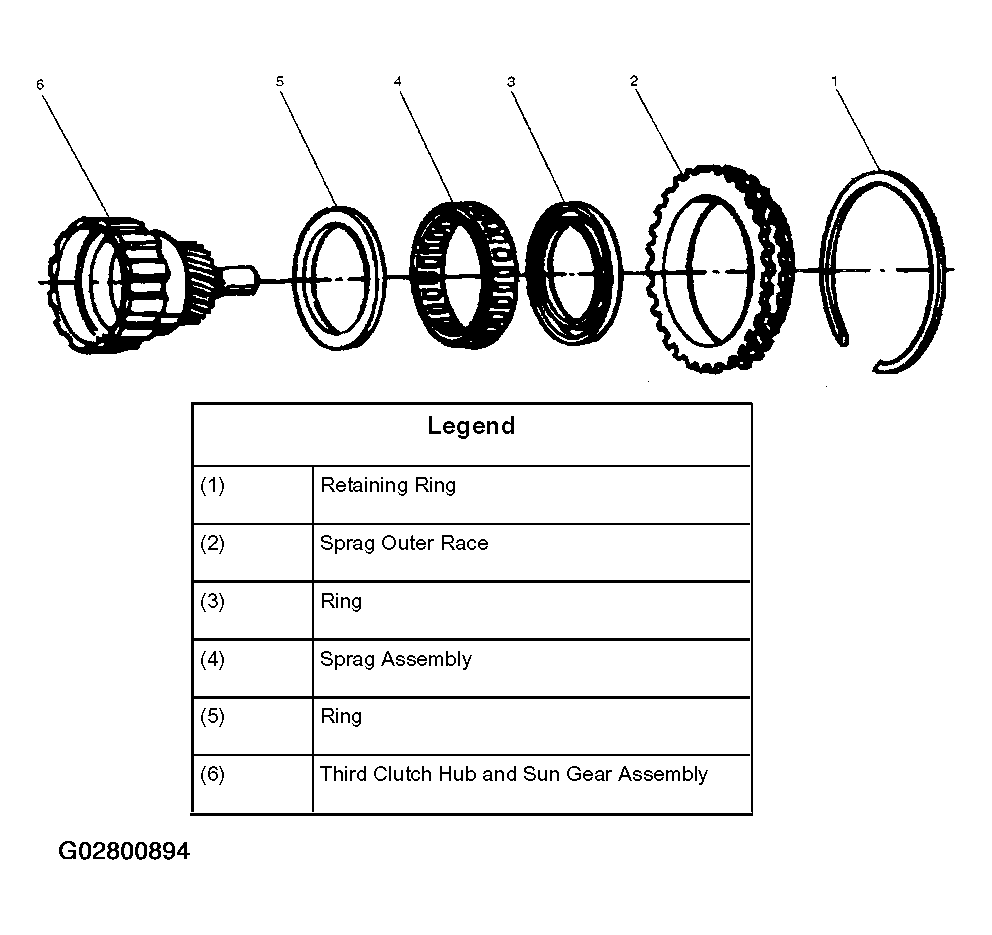

Fig 1: Exploded View Of Sprag Unit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
