Normal mode: Downshift

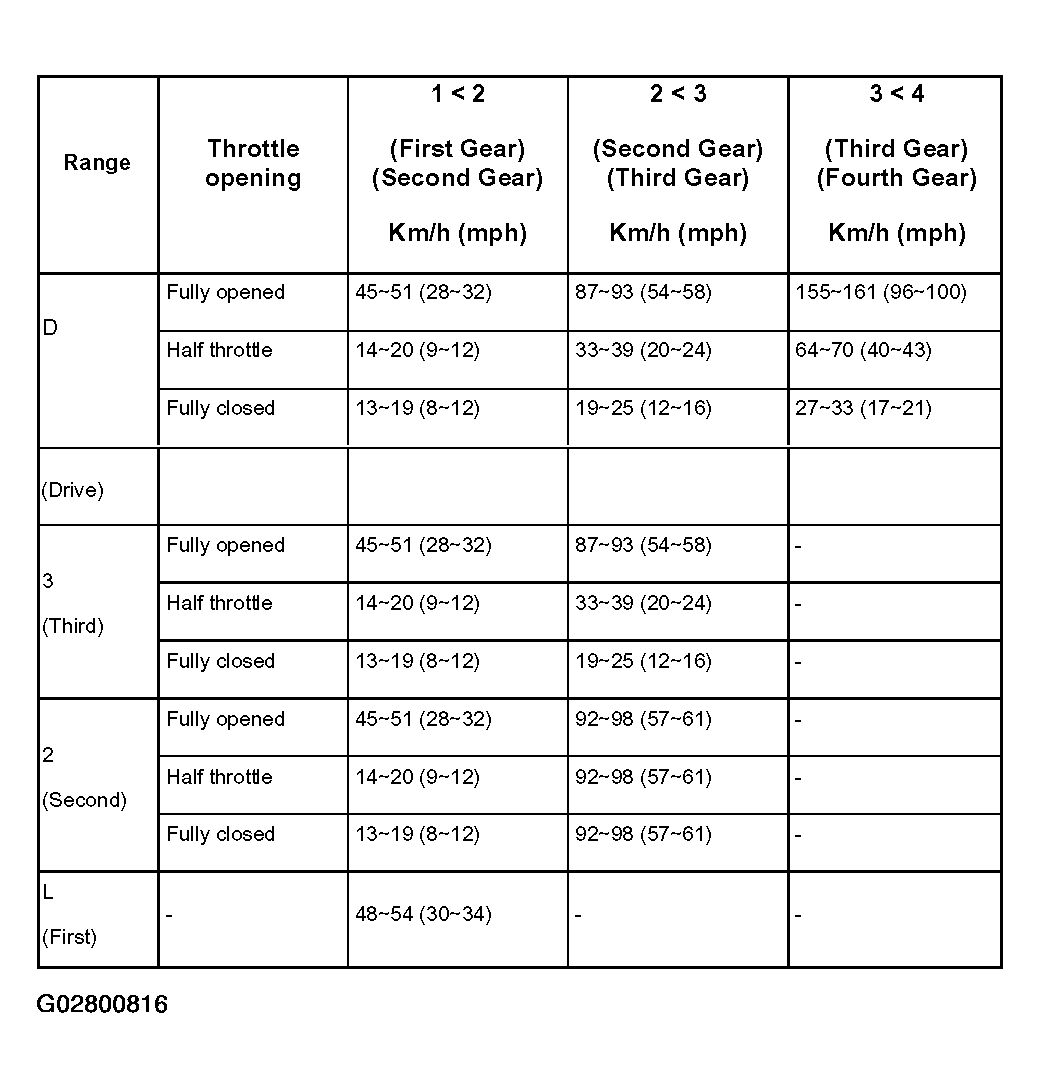

Fig 1: "Normal Mode" - Downshift Chart

G02800816

Courtesy of ISUZU MOTOR CO.
