Selector Lever: Inspection

  1. Make sure that when the shifter control lever is shifted from "P" to "L", a "clicking" can be felt at each shift position. Make sure that the gear corresponds to that of the position plate indicator.
  2. Check to see if the shifter lever can be shifted as shown in illustration.

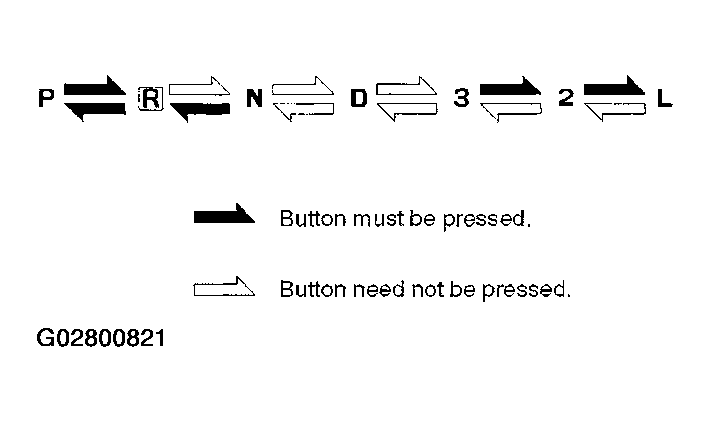

Fig 1: Identifying Selector Lever Shifting Positions
G02800821Courtesy of ISUZU MOTOR CO.
