Automatic Transmission (4L30-E)
>>
Preliminary Inspection Chart
Preliminary Inspection Chart

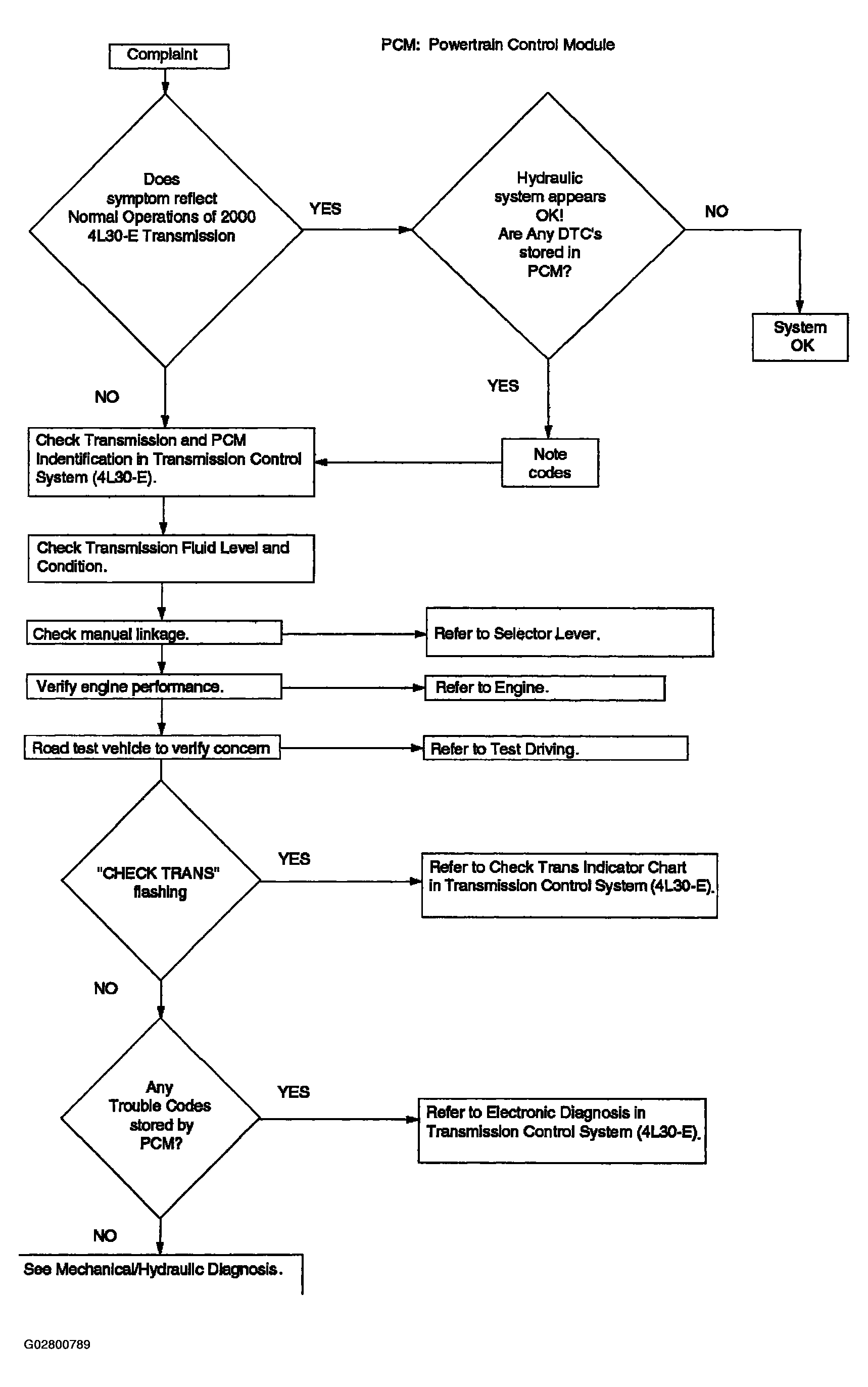

Fig 1: Preliminary Inspection Flow Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
