Mode Switch: Removal

  1. Place selector lever in neutral.
  2. Disconnect battery ground cable.
  3. Remove mode switch cover (1).
  4. Disconnect selector lever (2) from the mode switch.
  5. Disconnect transmission harness from the mode switch connector (3).
  6. Remove bracket with mode switch connector from the transmission case.
  7. Remove mode switch connector (3) from the bracket (4).
  8. Remove two mode switch bolts and nut then remove mode switch (5).

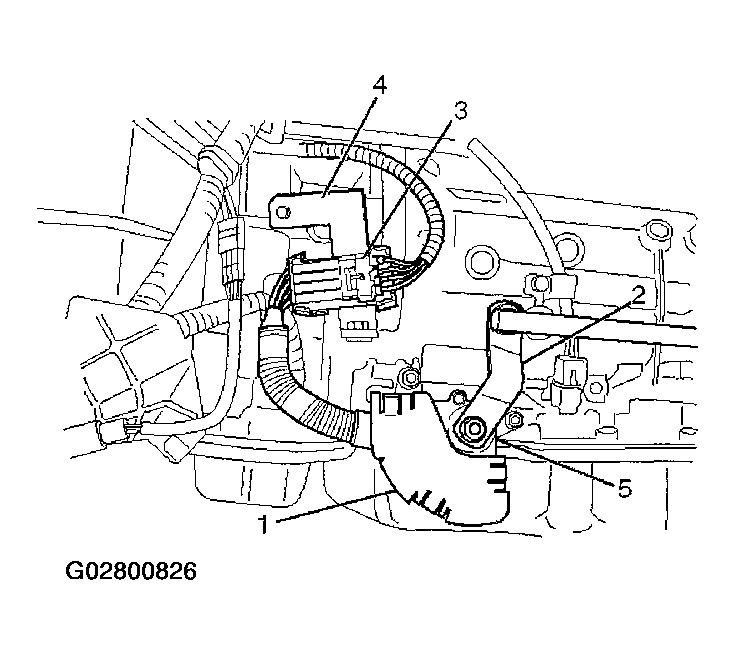

Fig 1: Removing Mode Switch
G02800826Courtesy of ISUZU MOTOR CO.
