Automatic Transmission (4L30-E)
>>
Main Case Valve Body
>>
Disassembled View
Disassembled View

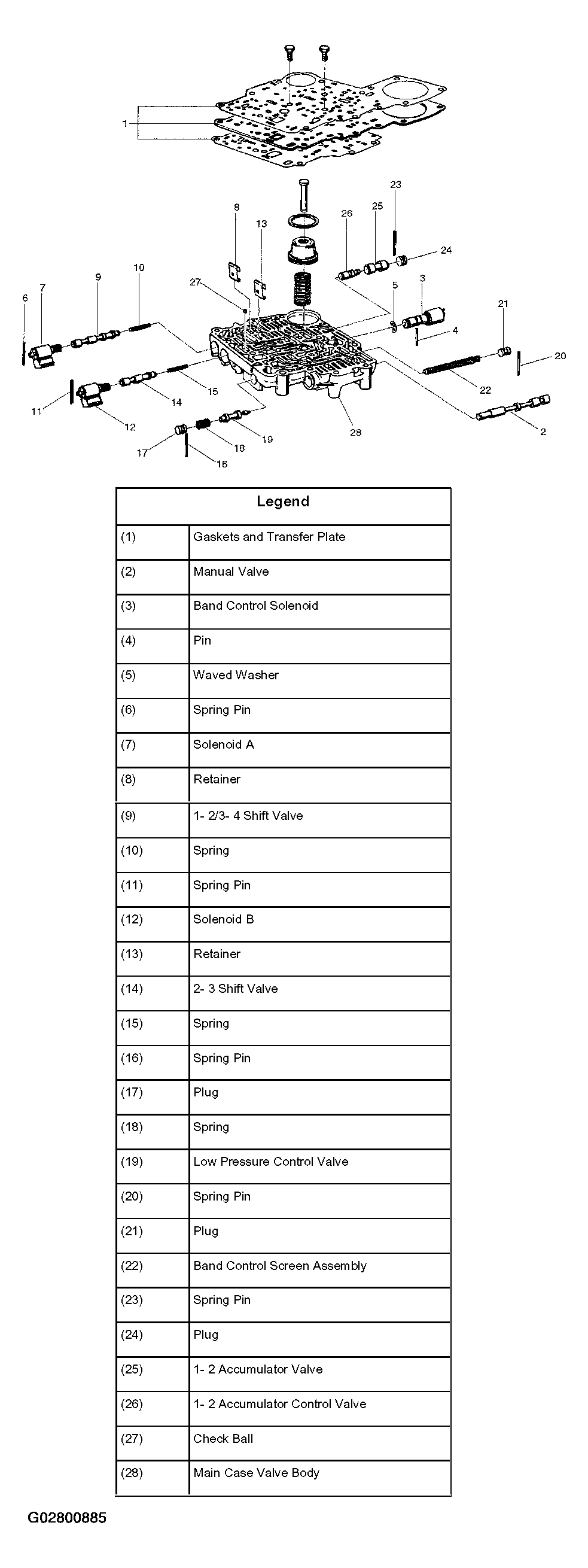

Fig 1: Exploded View Of Main Case Valve Body
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
