Automatic Transmission (4L30-E)
>>
Lockup Speed Chart
Lockup Speed Chart
Lockup Speed Chart
Transfer gear ratio:
High: 1.000
Rear axle ratio:
4.300

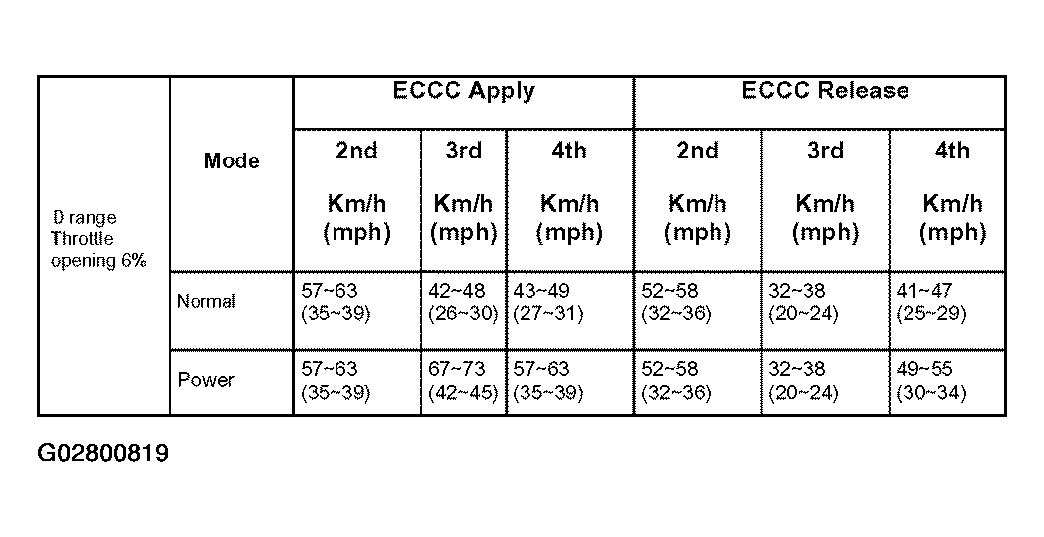

Fig 1: Lockup Speed Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
