Automatic Transmission (4L30-E): Construction

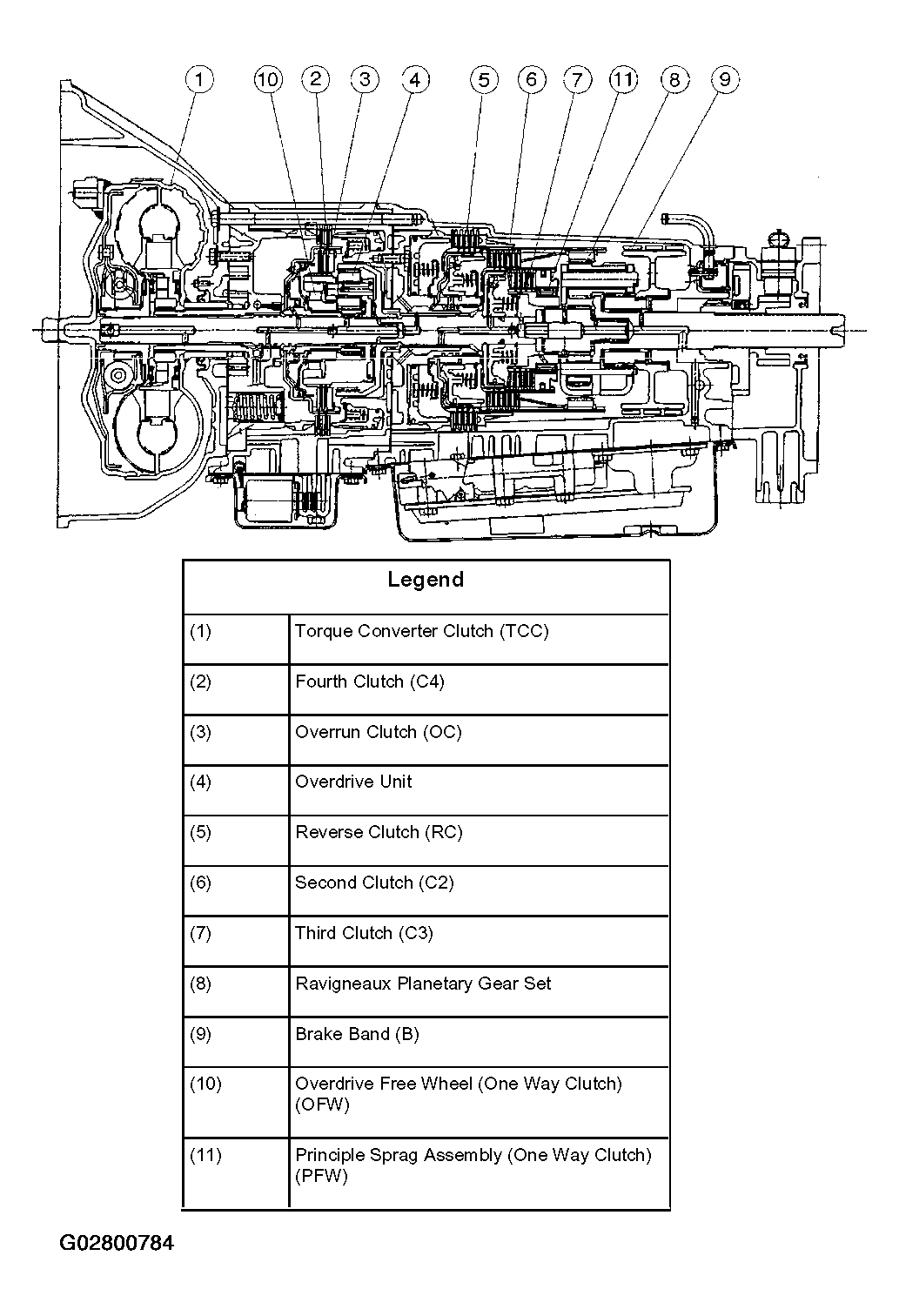

Fig 1: Identifying Automatic Transmission Construction

G02800784

Courtesy of ISUZU MOTOR CO.
