Hydraulic Pump

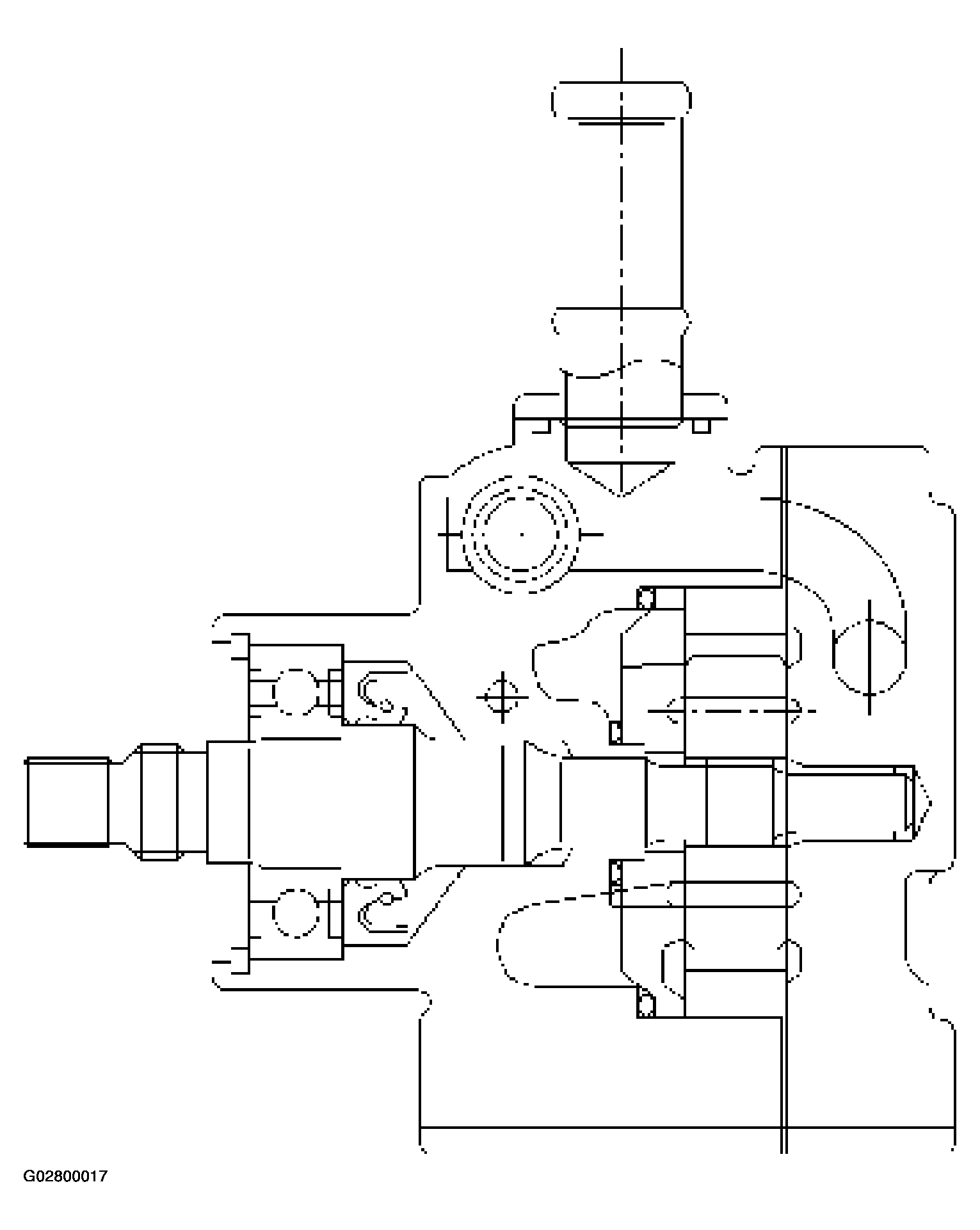

Fig 1: Cutaway View Of Hydraulic Pump

Courtesy of ISUZU MOTOR CO.

The hydraulic pump is a vane-type design. There are two openings at the rear of the pump housing. The larger opening contains the cam ring, pressure plate, thrust plate, rotor and vane assembly, and end plate. The smaller opening contains the pressure line union, flow control valve and spring.
