Inspection and Repair

Make necessary correction or parts replacement if wear, damage, corrosion or any other abnormal conditions are found through inspection.

1. Trailing link
2. Rubber bushing
   • Remove the rubber bushing by using remover J-39214.

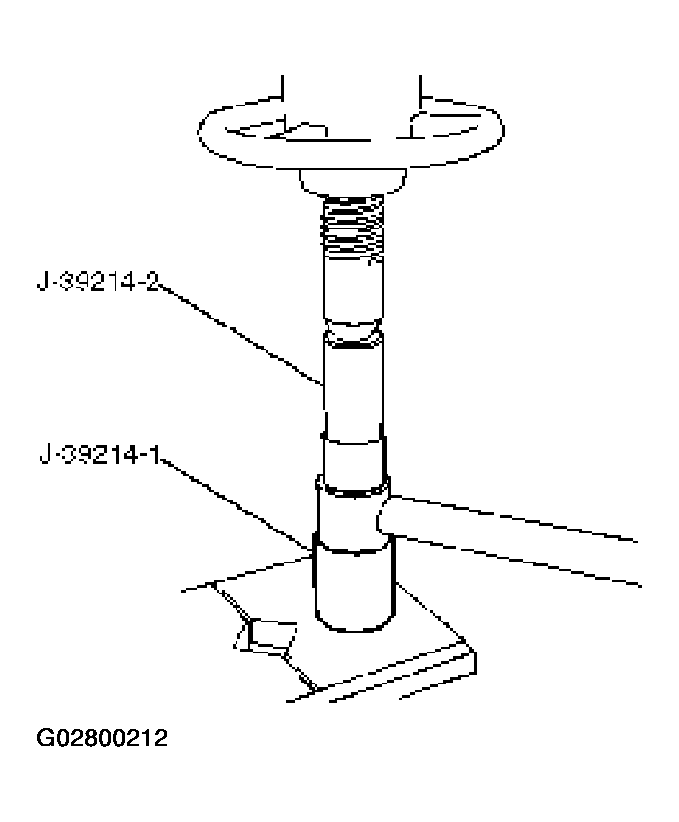

     Fig 1: Removing Rubber Bushing

     Courtesy of ISUZU MOTOR CO.
   • Install the rubber bushing by using installer J-39214.

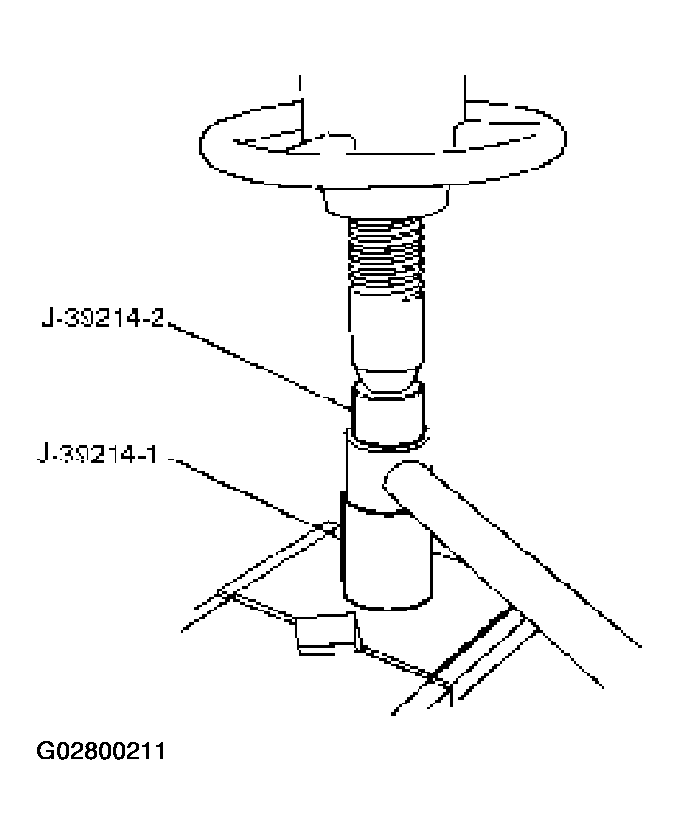

Fig 2: Installing Rubber Bushing

Courtesy of ISUZU MOTOR CO.
