Stabilizer Bar: Installation

  1. Install rubber bushing.
  2. Install stabilizer bar.
  3. Install bracket and tighten to the specified torque.

    Torque:  22 N.m (16 lb ft)

  4. Install link.
  5. Install nut and washer, then tighten the nut to the specified torque.

    Torque:  50 N.m (37 lb ft)

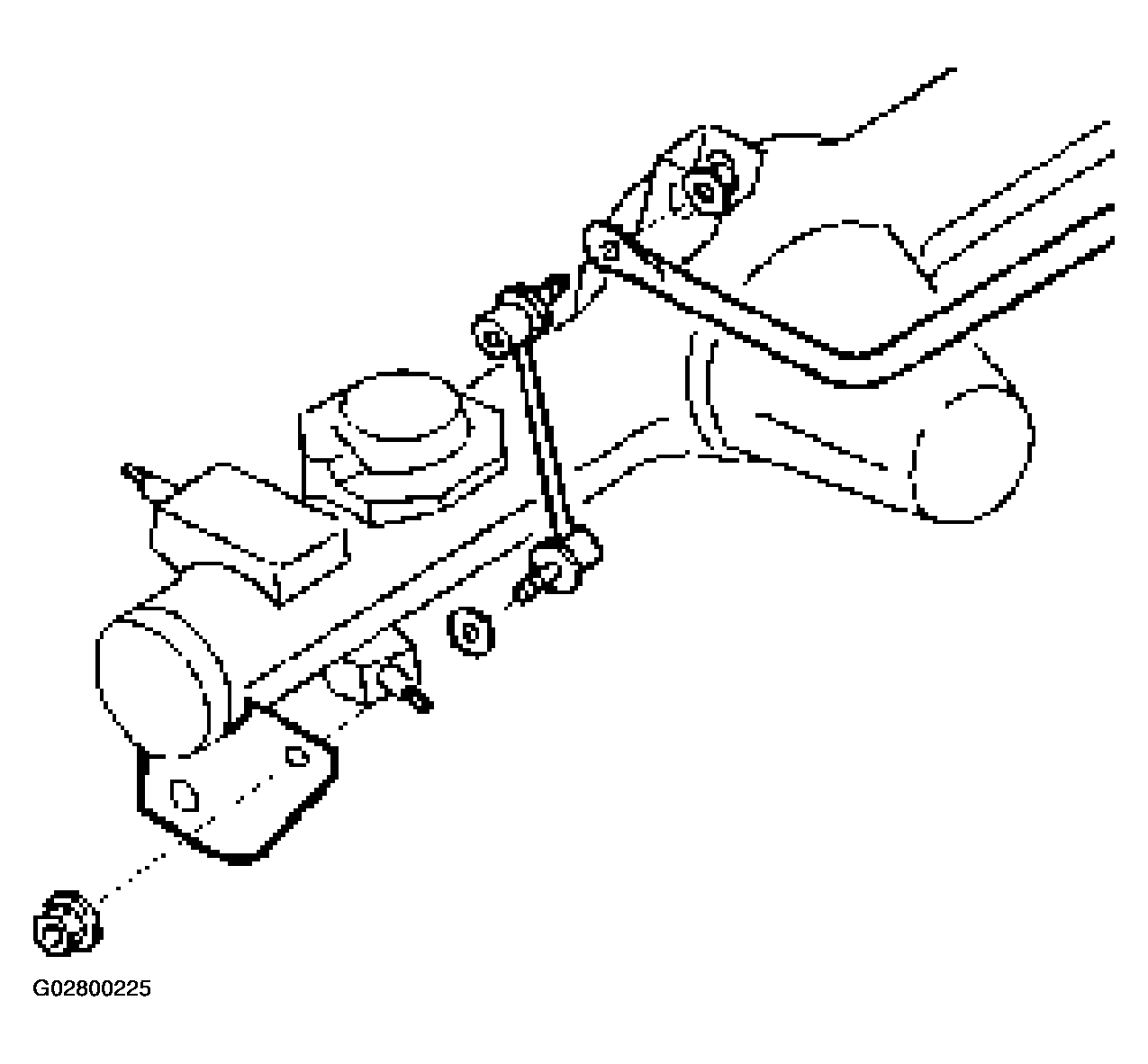

Fig 1: Installing Link
G02800225Courtesy of ISUZU MOTOR CO.
