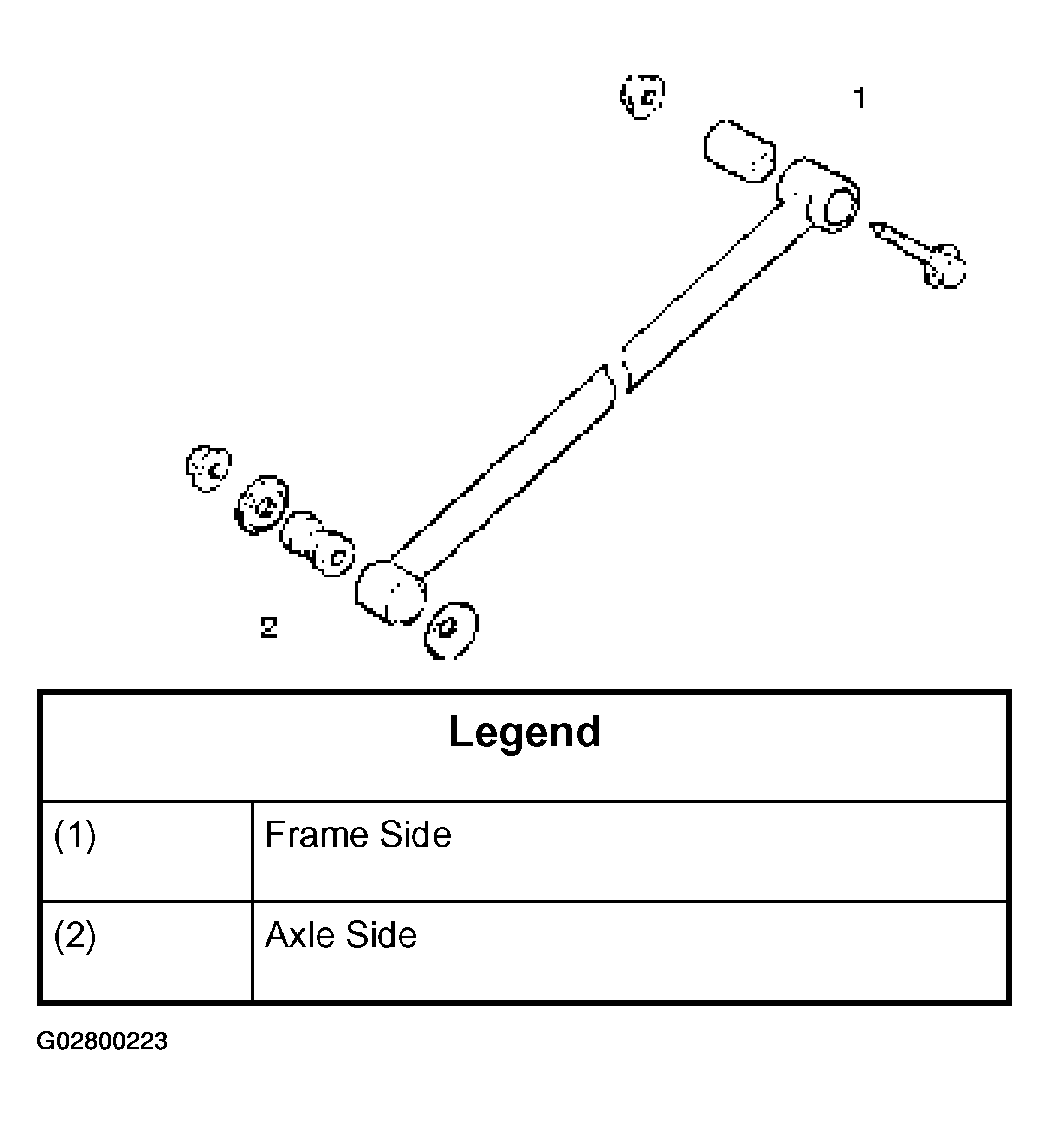

Lateral Rod: Installation
- Install lateral rod and make sure that the lateral rod is in its correct position.NOTE: When mounting lateral rod, be sure not to use grease on bushings or any other nearby part.
- Install bolt and nut. Tighten the bolt and nut lightly, then retighten them to the specified torque after the vehicle is at curb height.
Torque: 137 N.m (101 lb ft)
- Install nut and washer. Tighten the nut lightly, then retighten the nut to the specified torque after the vehicle is at curb height.
Torque: 78 N.m (58 lb ft)
