Inspection and Repair

Make necessary correction or parts replacement if wear, damage, corrosion or any other abnormal condition are found through inspection.

1. Lateral rod
2. Rubber bushing (Frame side)
   • Remove the rubber bushing (Frame side) by using remover J-39214.

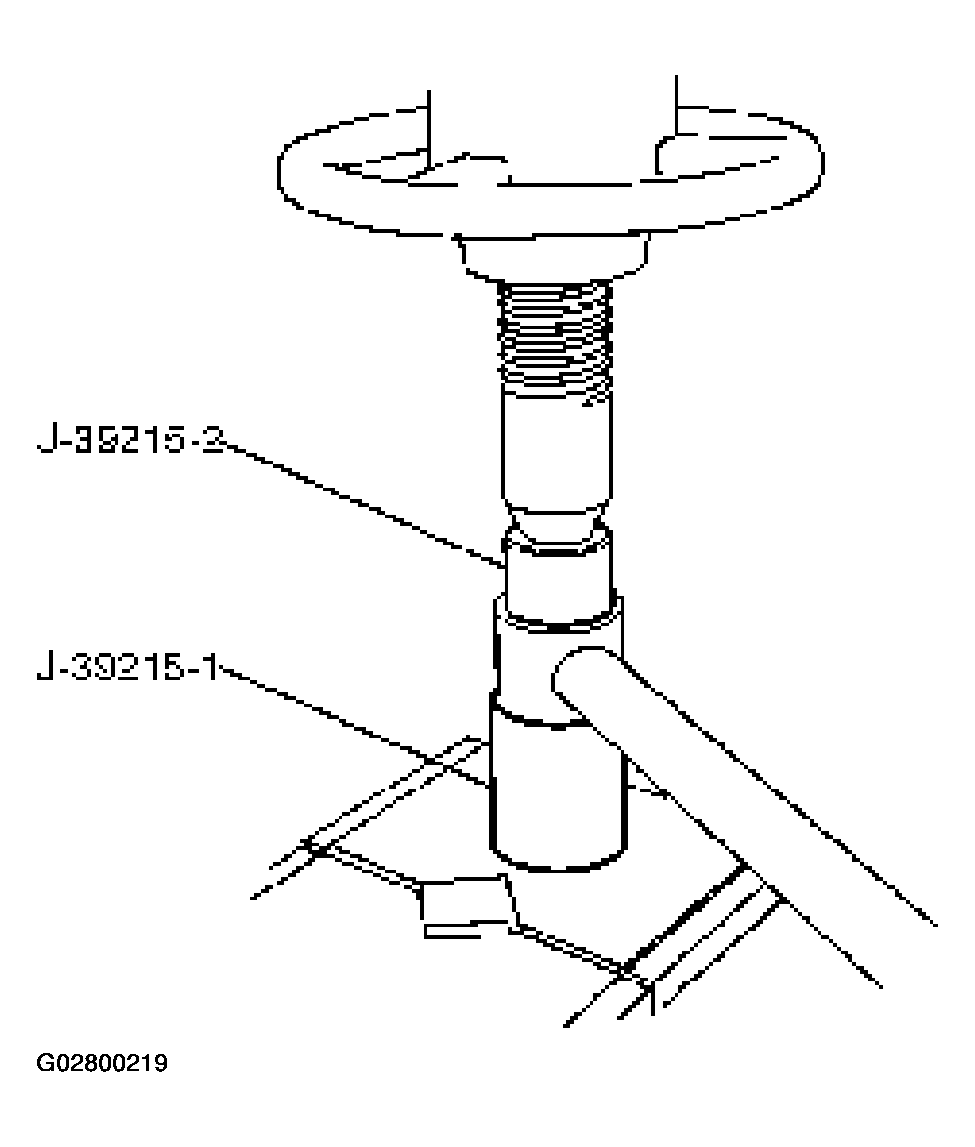

     Fig 1: Removing Rubber Bushing (Frame Side)

     Courtesy of ISUZU MOTOR CO.
   • Install the rubber bushing (Frame side) by using Installer J-39215.
   NOTE: When mounting rubber bushings, do not use grease on bushings or any other nearby parts.

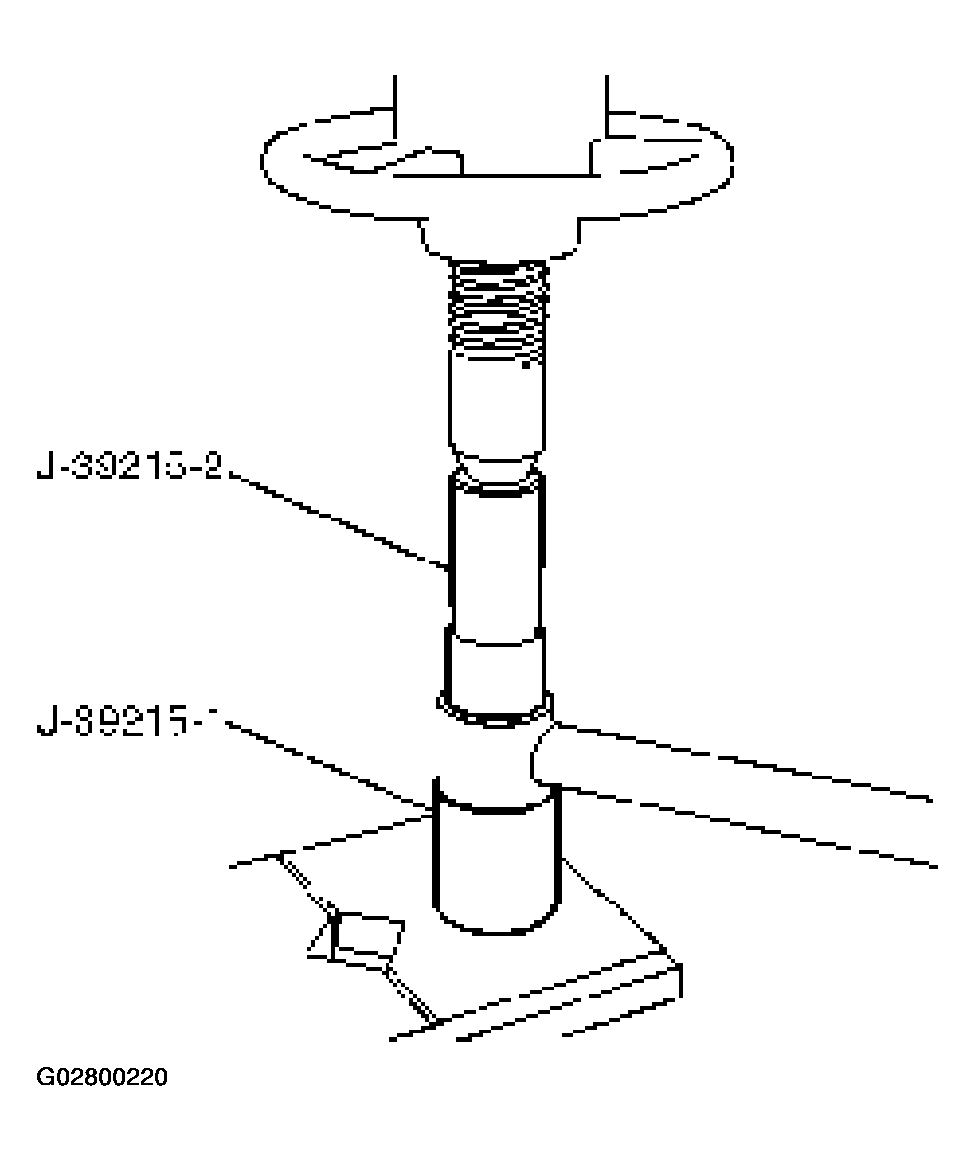

   Fig 2: Installing Rubber Bushing (Frame Side)

   Courtesy of ISUZU MOTOR CO.
3. Rubber bushing (Axle side)
   • Remove the rubber bushing (Axle side) by using remover J-39792.

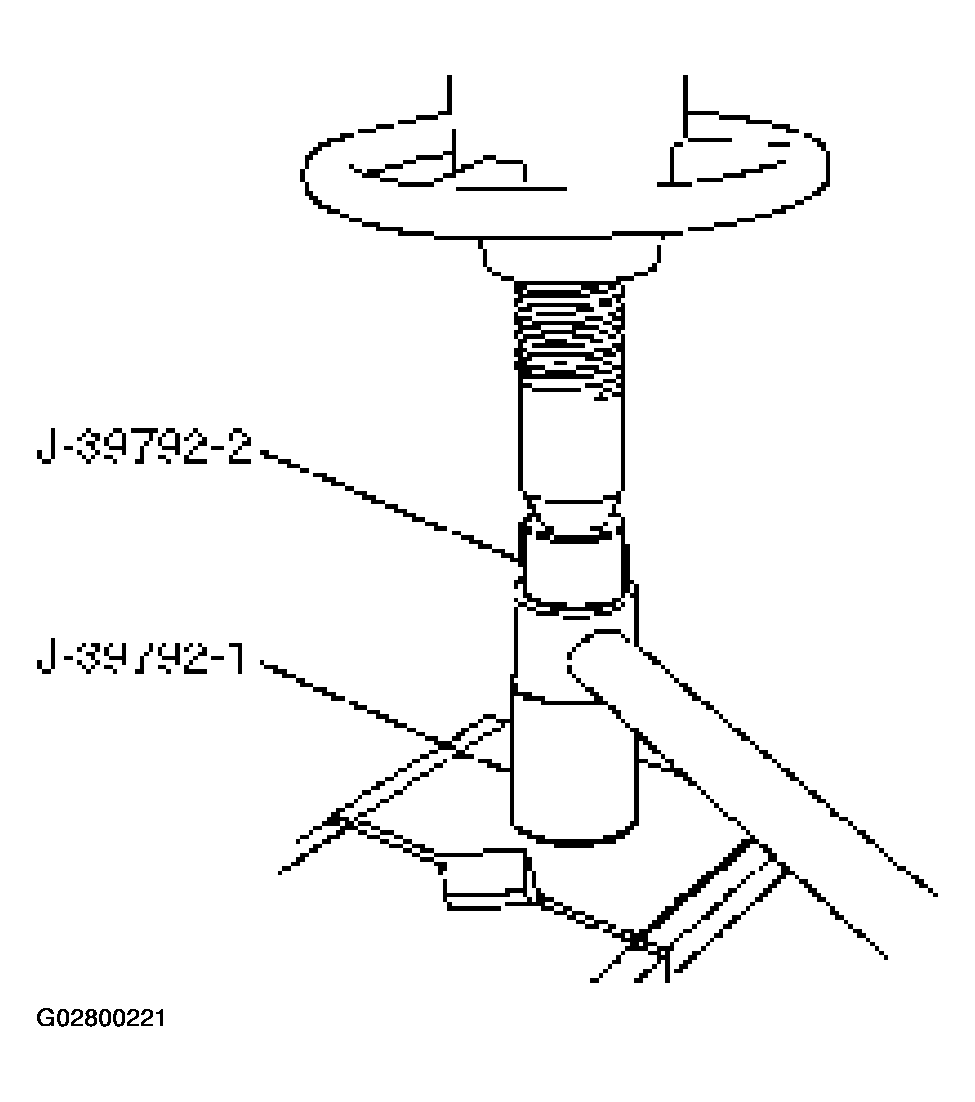

     Fig 3: Removing Rubber Bushing (Axle Side)

     Courtesy of ISUZU MOTOR CO.
   • Install the rubber bushing (Axle side) by using installer J-39792.

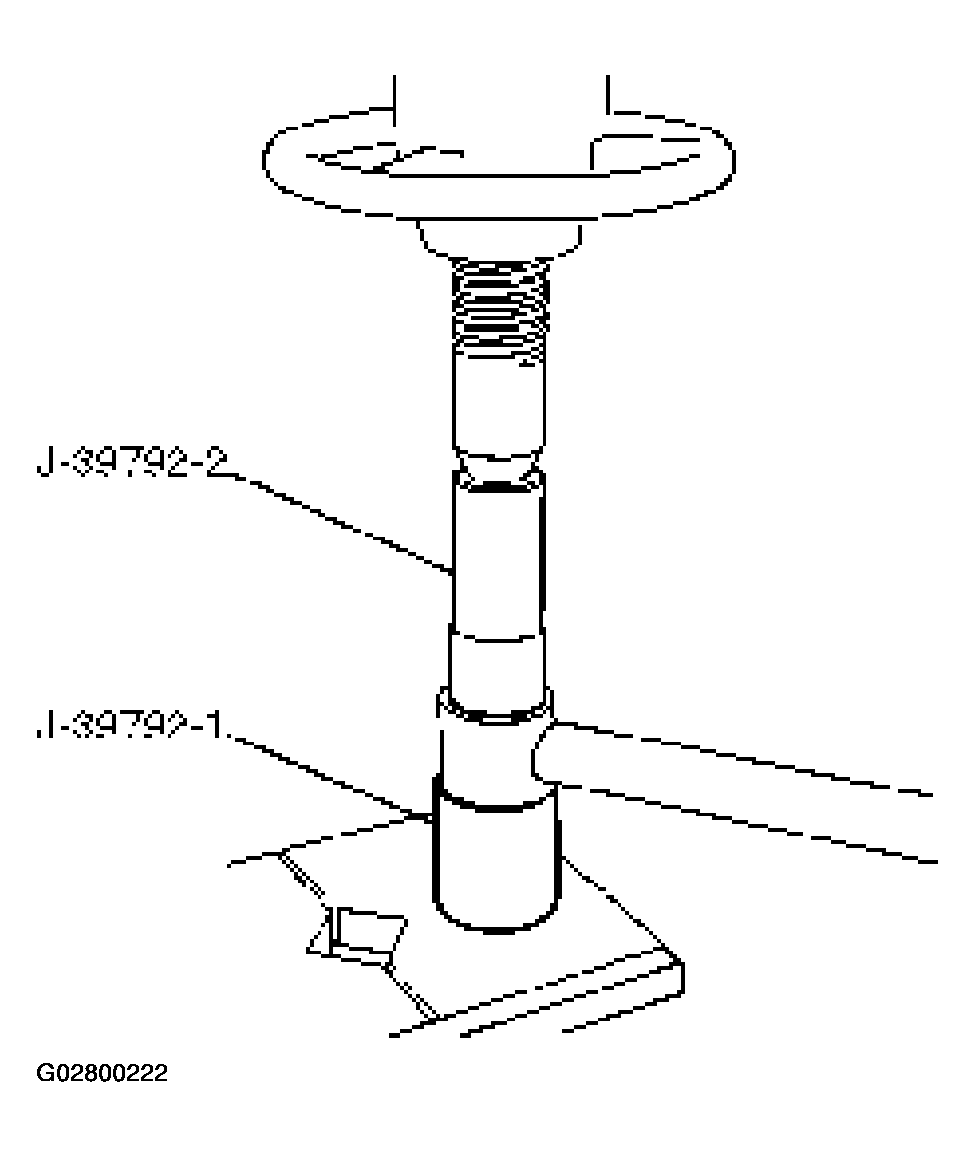

   Fig 4: Installing Rubber Bushing (Axle Side)

   Courtesy of ISUZU MOTOR CO.
