Coil Spring: Installation

  1. Install coil spring and make sure that the coil spring is installed in the proper position. Paint mark (1) should be downward.

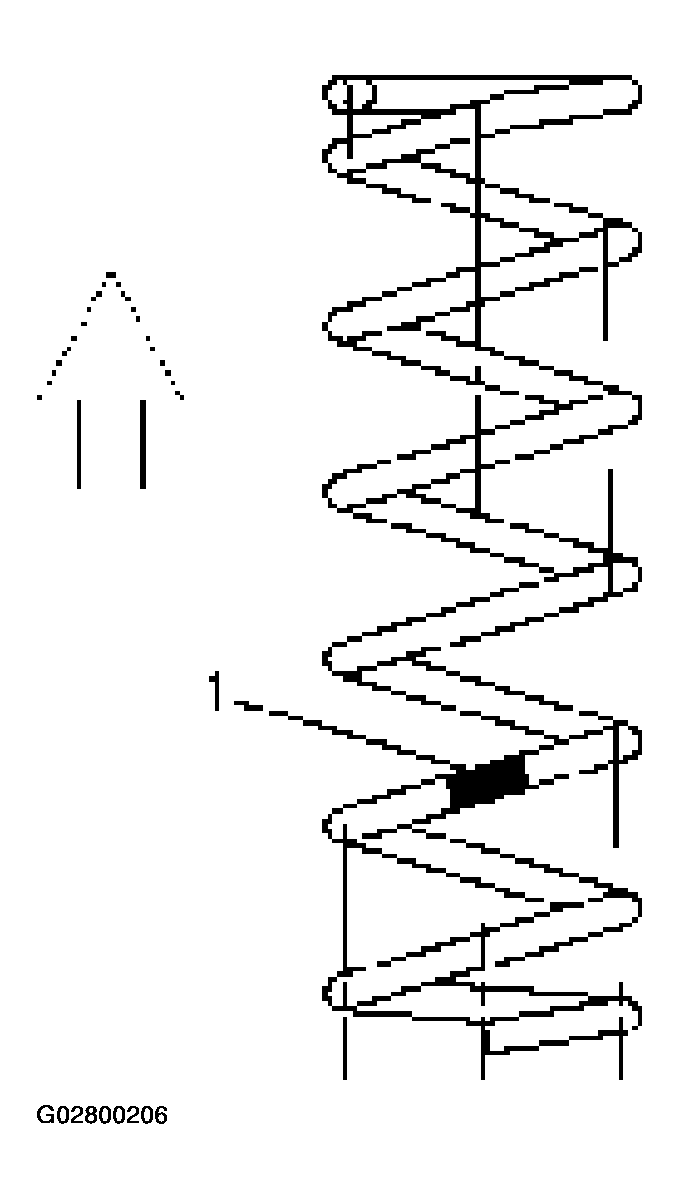

    Fig 1: Installing Coil Spring
    G02800206Courtesy of ISUZU MOTOR CO.
  2. Fit the end of the coil spring to the coil spring seat and mount the coil spring on the rear axle case.

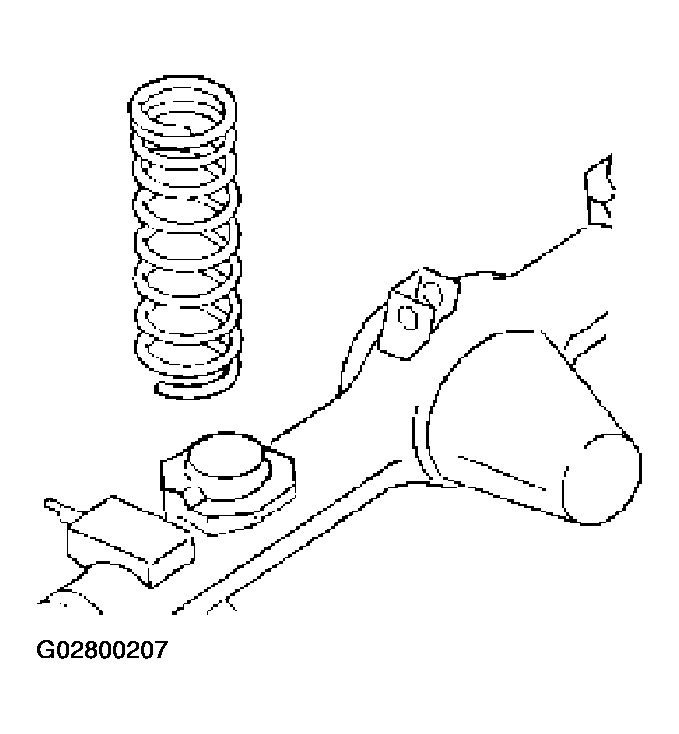

    Fig 2: Installing Coil Spring To Coil Spring Seat
    G02800207Courtesy of ISUZU MOTOR CO.
  3. Install the insulator on the coil spring. Jack up the axle case gently with the top of the coil spring set to the spring seat on the frame side.

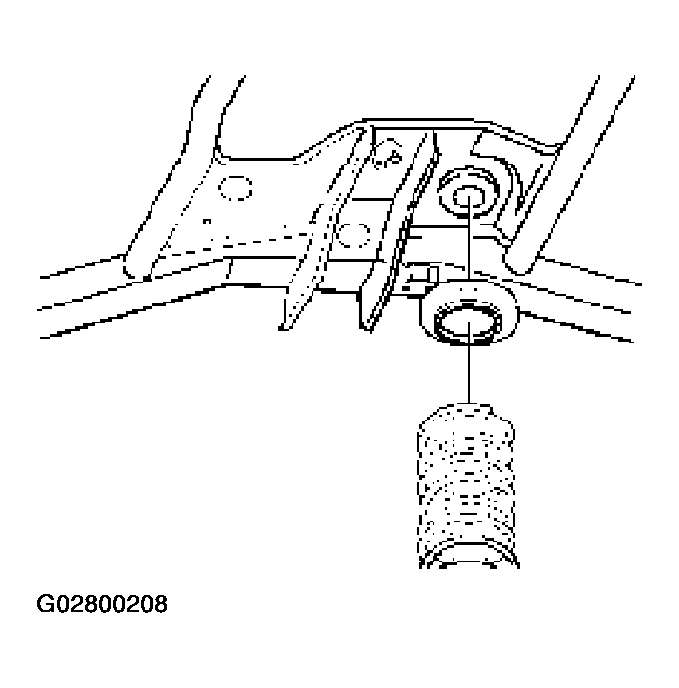

    Fig 3: Installing Insulator
    G02800208Courtesy of ISUZU MOTOR CO.
  4. Install shock absorber and tighten the nut lightly, then retighten it to the specified torque after the vehicle is at curb height.
    NOTE: When mounting shock absorber, be sure not to use grease on bushings or any other nearby part.

    Torque:  78 N.m (58 lb ft)

  5. Install stabilizer bar.

    Torque:  50 N.m (37 lb ft)

  6. Install parking brake cable bracket.
