Center Link: Installation

  1. Install center link. Make sure that the center link is in its correct position.
    NOTE: When mounting center link, be sure not to use grease bushings or any other nearby part.

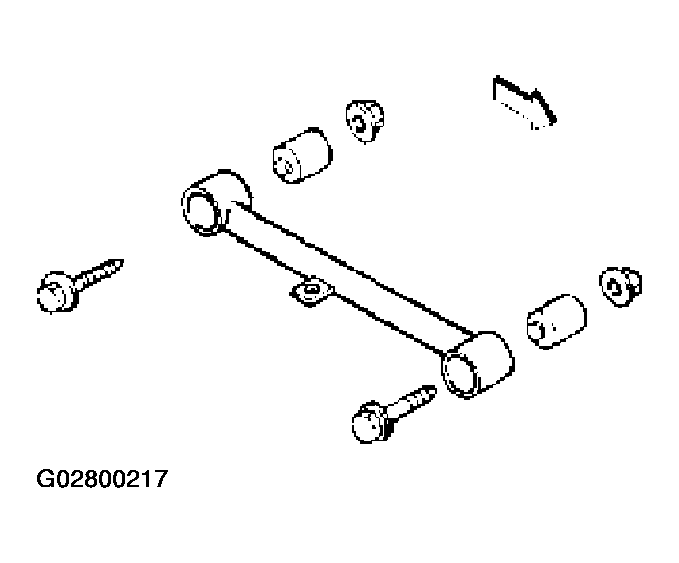

    Fig 1: Installing Center Link
    G02800217Courtesy of ISUZU MOTOR CO.
  2. Install bolt and nut. Tighten the bolts and nuts lightly, then retighten them to the specified torque after the vehicle is at curb height.

    Torque:  137 N.m (101 lb ft)

  3. Install speed sensor cable bracket.
  4. Install speed sensor cable.
