Rodeo 2.2L
TORQUE SPECIFICATIONS (RODEO 2.2L)
| Application |
Ft. Lbs. (N.m) |
| Clutch Pressure Plate Bolt |
13 (18) |
| Clutch Pedal-To-Dash Panel |
12 (16) |
| Driveshaft Mounting Flange Bolts |
46 (63) |
| Flywheel Bolt |
| Step 1 |
26 (35) |
| Step 2 |
Tighten Additional 45 Degrees |
| Master Cylinder Fluid Line |
14 (19) |
| Master Cylinder-To-Dash Panel |
11 (15) |
| Master Cylinder Push Rod-To-Yoke |
12 (17) |
| Shift Fork Fulcrum Bolts |
28 (38) |
| Slave Cylinder Mounting Bolt |
32 (43) |
| Starter Bolt |
30 (40) |
Transmission
, |
| 3rd Crossmember-To-Chassis |
37 (50) |
| Transmission Rear Rubber Mounting Nuts |
30 (40) |
| Transmission-To-3rd Crossmember |
30 (40) |

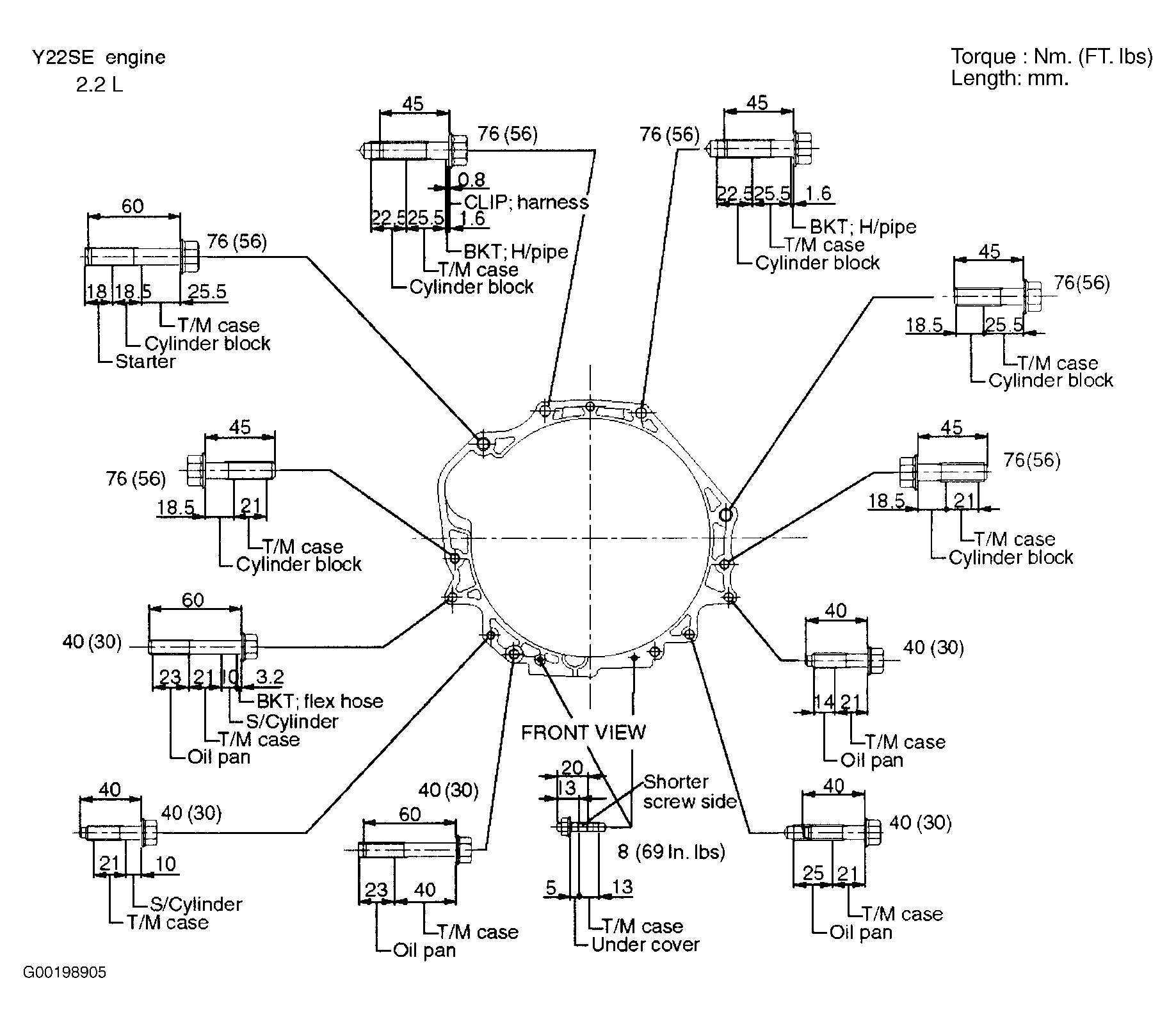

| Transmission-To-Engine Bolt |
52 (76) |
| Transmission-To-Engine Oil Pan Bolt |
30 (40) |
| INCH Lbs. (N.m) |
| Transmission Under Cover |
69 (8) |
