New Compressor Installation

The new compressor is filled with 150cc (5.0 fl oz) of compressor oil and nitrogen gas. When mounting the compressor on the vehicle, perform the following steps:

1. Gently release nitrogen gas from the new compressor.
   • Take care not to let the compressor oil flow out.
   • Inspect O-rings and replace if necessary.

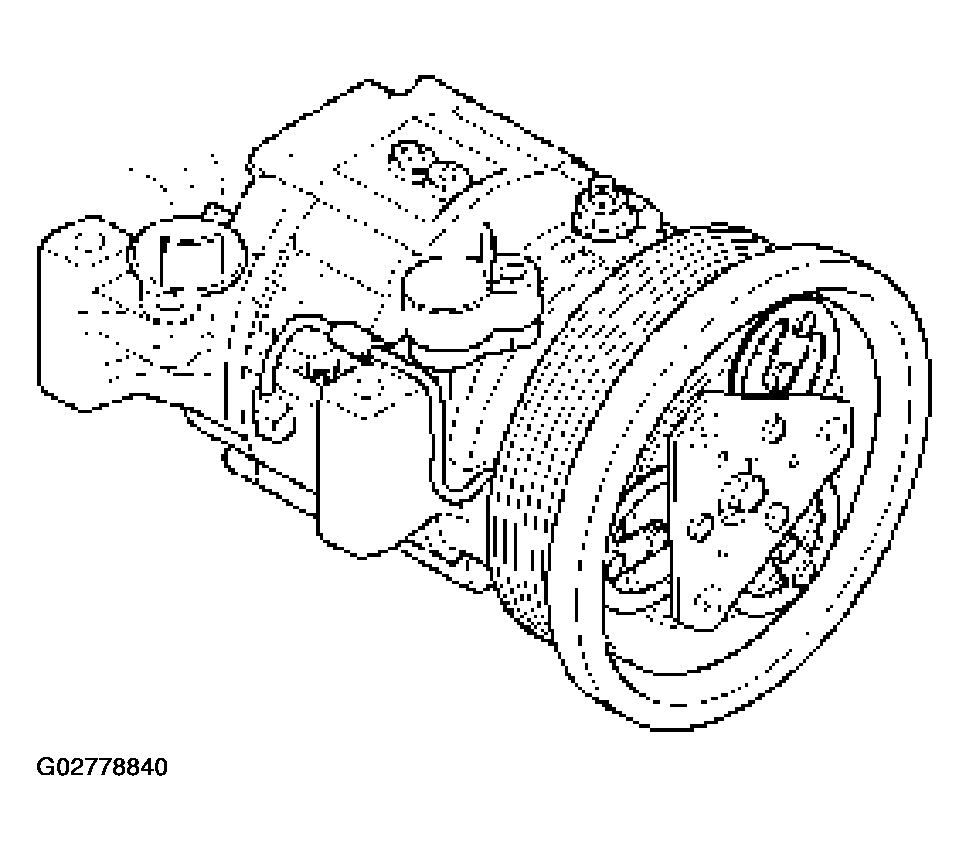

     Fig 1: Identifying Compressor


2. Turn the compressor several times by hand and release the compressor oil in the rotor.
3. When installing on a new system, the compressor should installed as it is. When installing on a used system, the compressor should be installed after adjusting the amount of compressor oil. (Refer to COMPRESSOR  ).

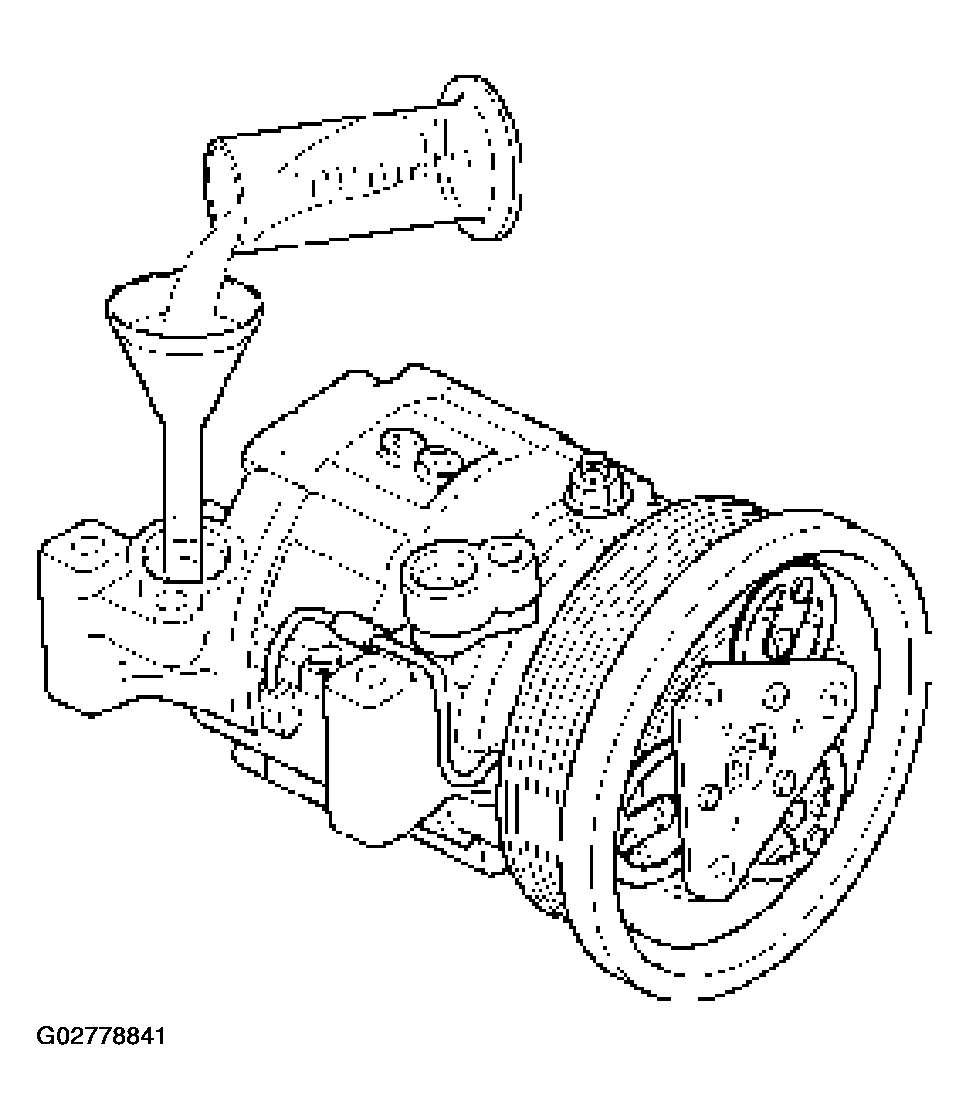

   Fig 2: Filling Compressor Oil



The new compressor is filled with 150cc (5.0 fl oz) of compressor oil and nitrogen gas. When mounting the compressor on the vehicle, perform the following steps:

1. Gently release nitrogen gas from the new compressor.
   • Take care not to let the compressor oil flow out.
   • Inspect O-rings and replace if necessary.
     Fig 1: Installing New Compressor


2. Turn the compressor several times by hand and release the compressor oil in the rotor.
3. When installing on a new system, the compressor should installed as it is. When installing on a used system, the compressor should be installed after adjusting the amount of compressor oil. (Refer to COMPRESSOR  ).
   Fig 2: Filling Oil In Compressor
