Home >> Isuzu >> 2002 >> Rodeo LSE, 2.2 D >> Repair and Diagnosis >> Steering >> Steering Linkage >> Power-Assisted Steering System >> Steering Column >> Steering Column and Associated Parts

Steering Column and Associated Parts

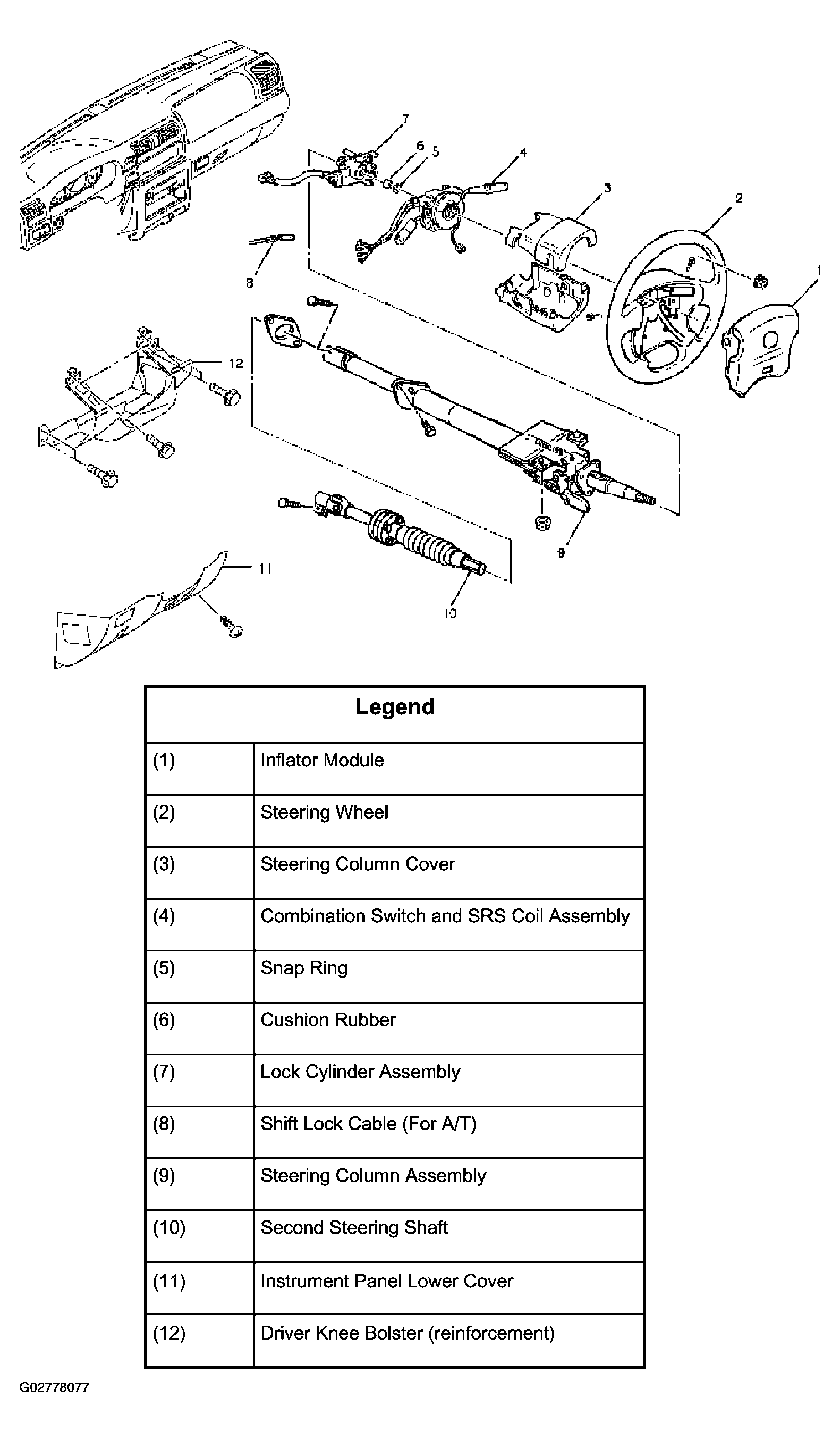

Fig 1: Exploded View Of Steering Column

G02778077
