4X4 model:

  1. Remove the torsion bar. Refer to TORSION BAR .
  2. Remove the lower control arm bolt (Frame side). Refer to LOWER CONTROL ARM .
  3. Apply a setting mark across the crossmember and frame so parts can be reassembled in their original position.

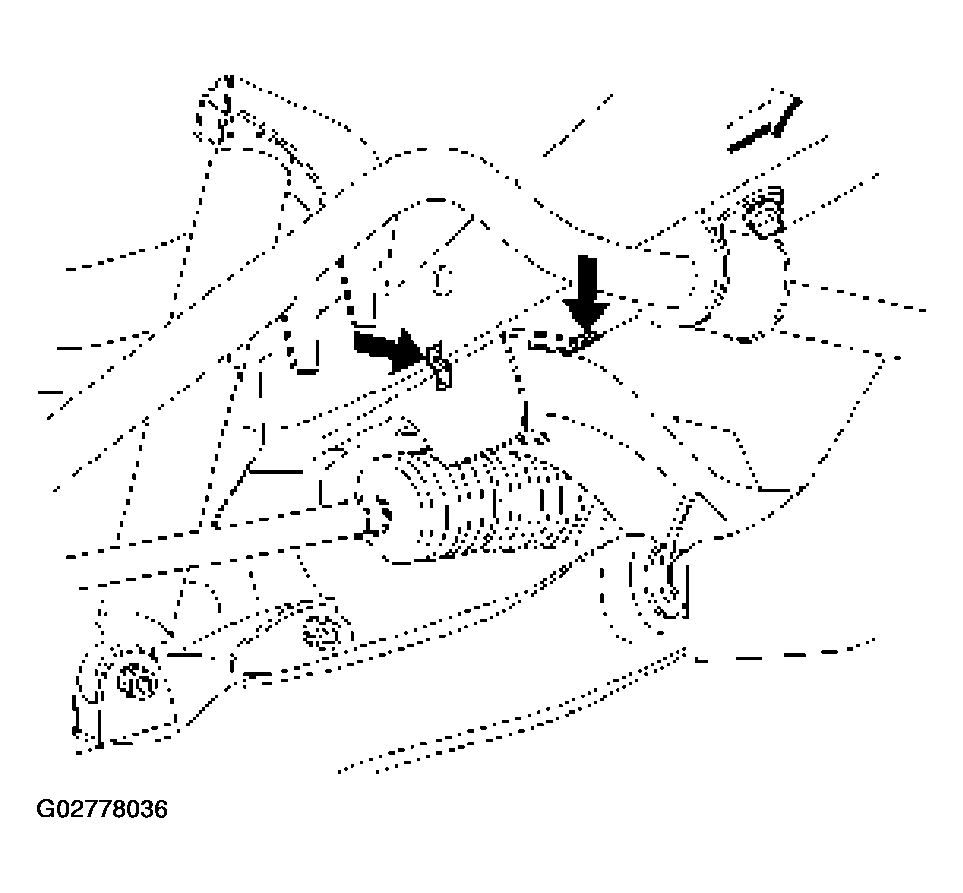

    Fig 1: Removing Crossmember Fixing Bolt
    G02778036
  4. Remove the crossmember fixing bolt.
  5. Remove the power steering unit with the crossmember.
  6. Remove the power steering unit.
