Toe-in Adjustment

To adjust the toe-in angle, loosen the lock nuts (2) on the tie rod (1) and turn the tie rod. Turn both rods the same amount, to keep the steering wheel centered.
Toe-in: 0 +/- 2 mm (0 +/- 0.08 in)

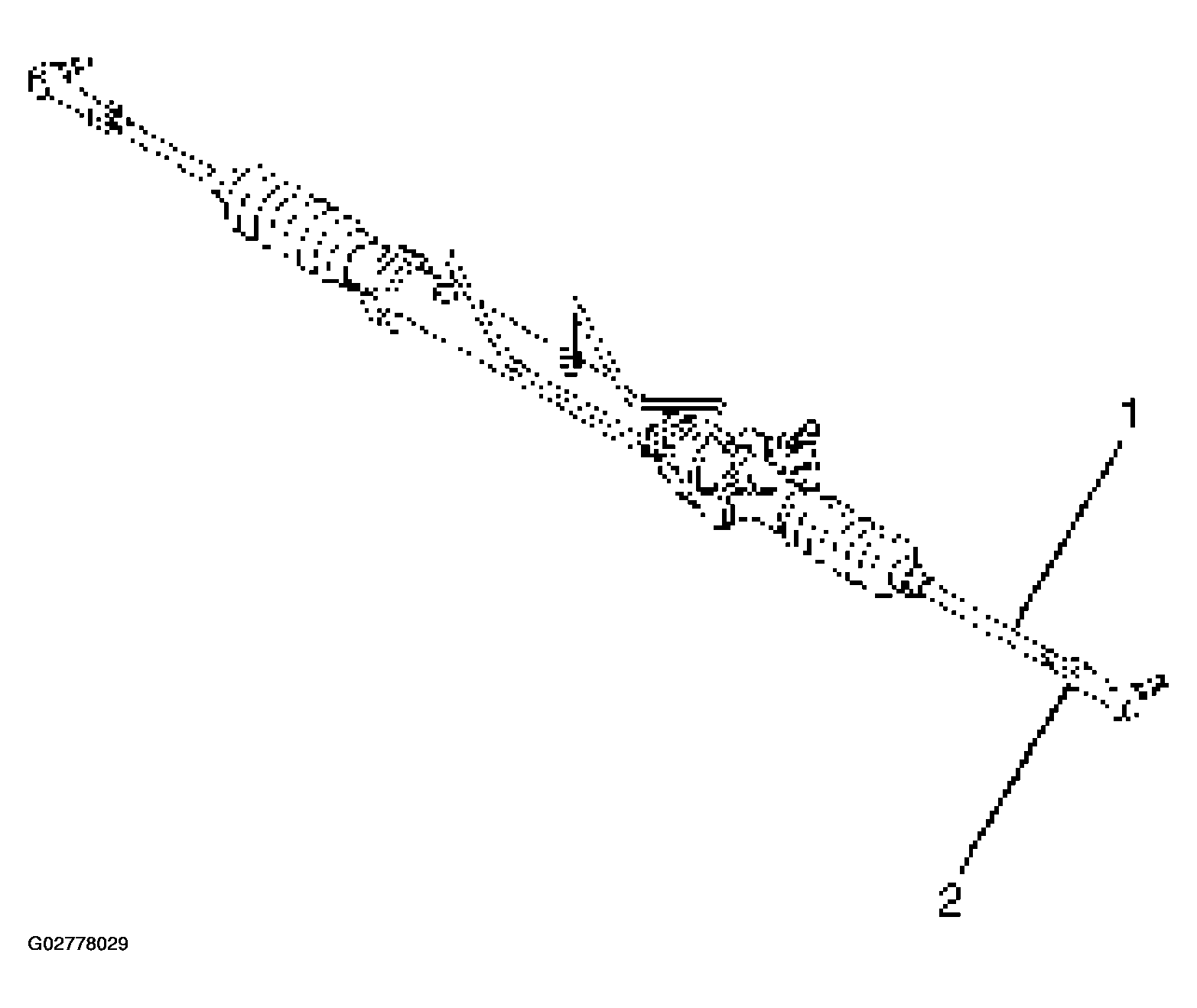

Fig 1: Adjusting Toe-In
Tighten the lock nut to the specified torque.
Torque: 98 N.m (72 lb ft)
