Turn Signal Switch

This diagnosis covers mechanical problems only. Refer to Combination Switch and Associated Parts for electrical diagnosis.

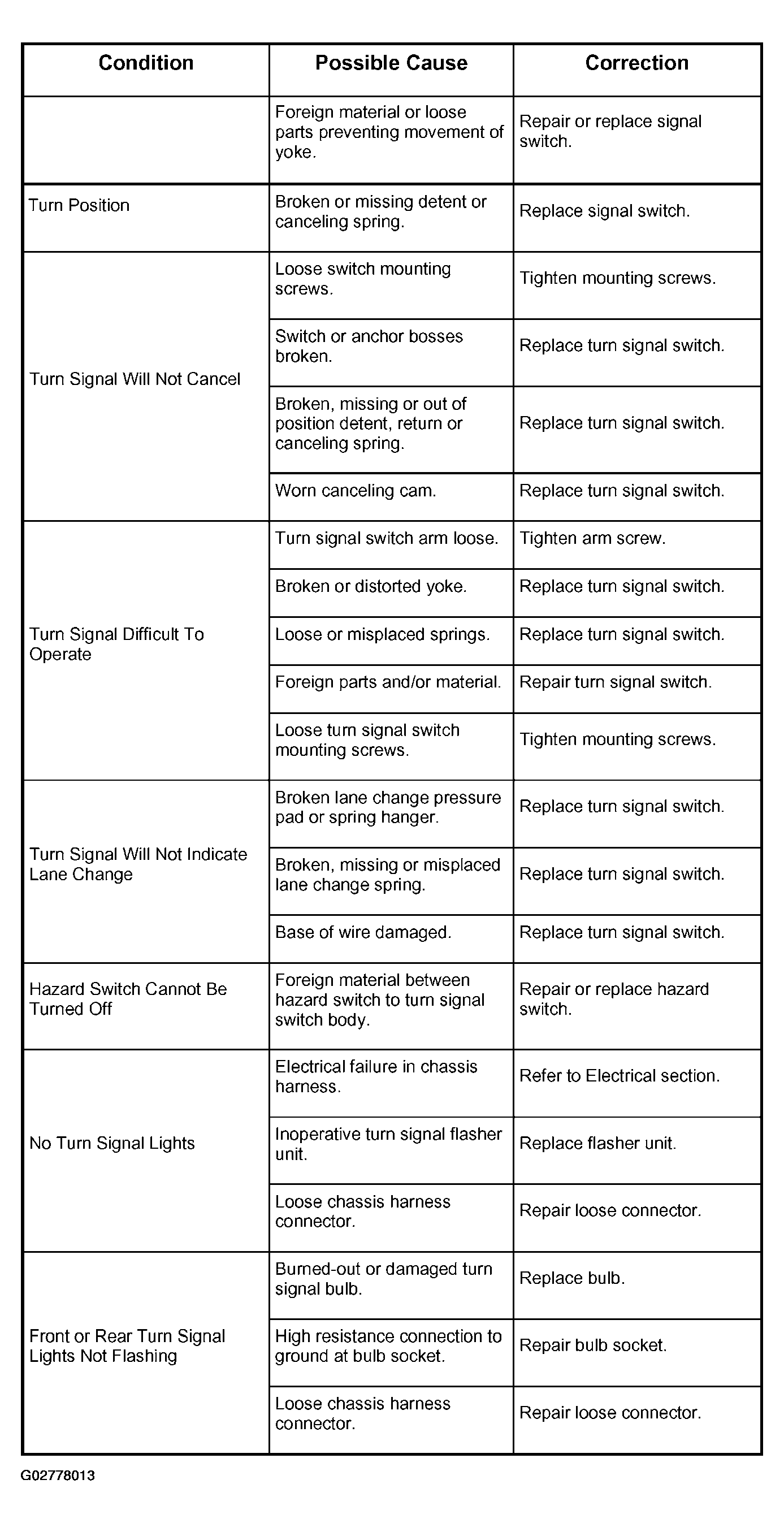

Fig 1: Turn Signal Switch Diagnosis Chart

G02778013
